Description
Overview:

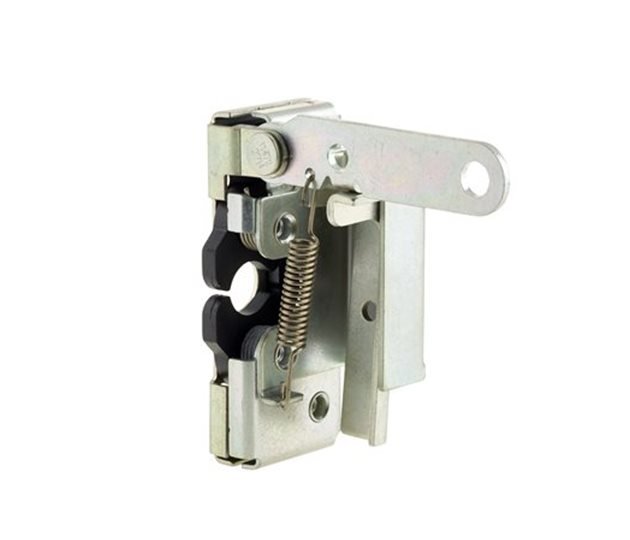

The Rotor Latch with Bellcrank, Right Hand (MPN 800 1372) is a two-rotor, two-stage latch assembly designed for secure closure of access doors and panels on commercial and specialist vehicles. Manufactured in mild steel and zinc plated with a clear chromate finish, it provides robust performance and corrosion protection in fleet and bodybuilder environments. This right-hand version uses a bellcrank push-release lever for straightforward actuation and dependable engagement. The compact body measures 114 mm (4.49 in) in length, 46 mm (1.81 in) in width and 20 mm (0.79 in) in thickness, suiting tight packaging spaces on body doors, lockers and enclosures. Mounting is via 1/4-20 UNC fixings, allowing easy integration with standard hardware. Branded by TriMark and supported through Albert Jagger, this latch is intended for use across trucks, trailers, buses, generator sets, horseboxes and cab installations where a reliable two-stage rotor mechanism is required.
Key Features:
- Right-hand rotor latch with bellcrank push-release actuation
- Two-rotor, two-stage latching for secure door engagement
- Mild steel construction for strength and durability
- Zinc plated with clear chromate finish for corrosion resistance
- Overall size: 114 mm (4.49 in) length x 46 mm (1.81 in) width x 20 mm (0.79 in) thickness
- Fixing thread: 1/4-20 UNC (6.35 mm major diameter, 20 TPI ≈ 1.27 mm pitch)
- Brand: TriMark
- Suited to body hardware applications on commercial vehicles and equipment
Typical Applications:
Used on service doors, lockers and access hatches across trucks, trailers and buses, as well as generator set enclosures, horsebox compartments and cab bodywork. Suitable where a compact, right-hand bellcrank-operated rotor latch is needed to provide positive two-stage retention and a controlled push release.
Also known as:
Right-Hand Bellcrank Rotor Latch
Two-Stage Rotor Door Latch RH
Twin-Rotor Latch, Right Hand
Bellcrank Release Door Latch
Product Specifications
| L&S Part No. | 800 1372 |
|---|---|
| Unit of Sale | 1 |
