Description
Overview:

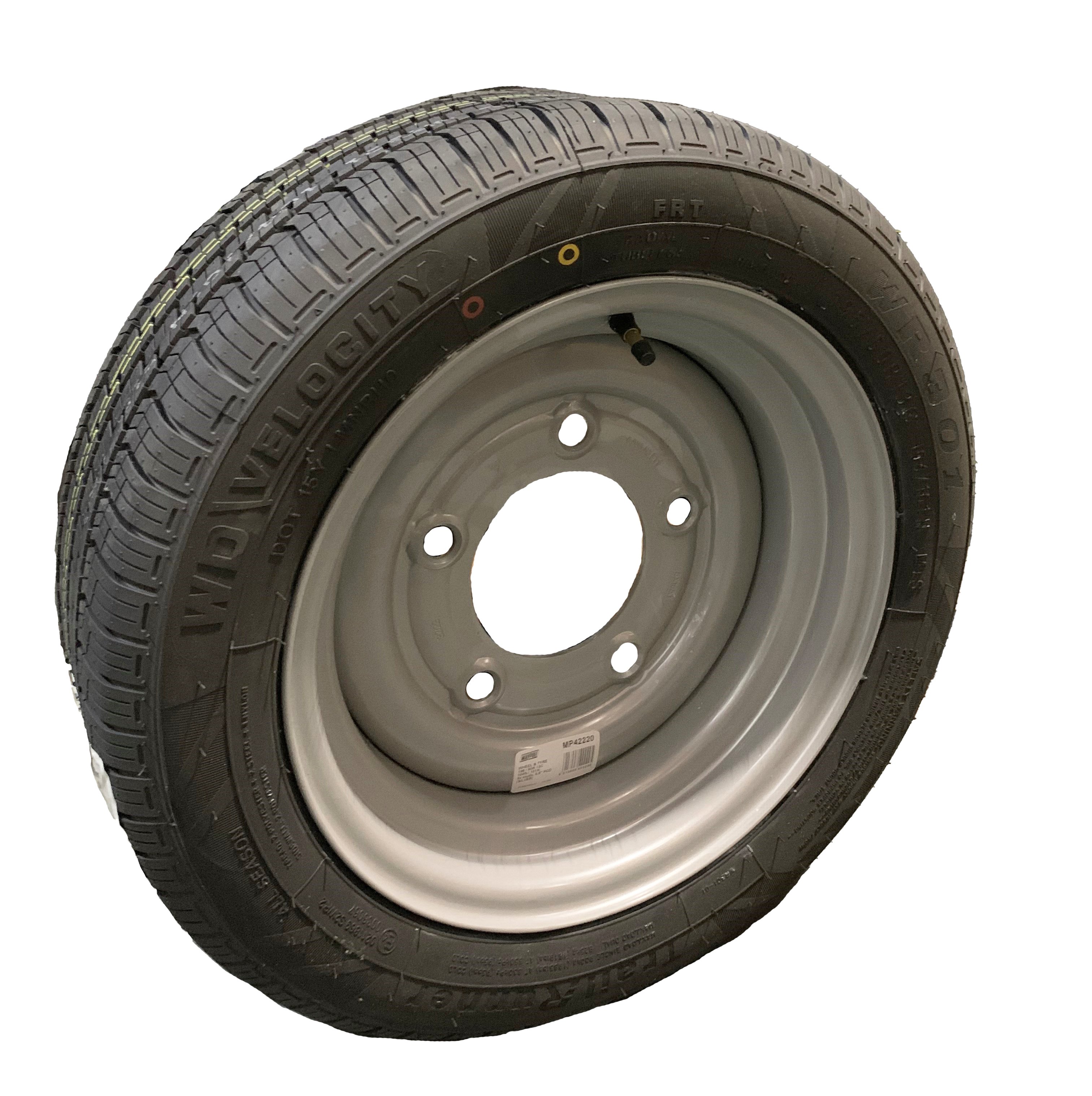

This 13in trailer wheel and tyre assembly (MPN 764 107) pairs a 6Jx13 silver rim with a 195/50R13C commercial-grade tyre for use on heavy-duty trailers. It features a 5-stud hub pattern on a 6.5in PCD (165.1 mm) with a 114.5 mm centre bore to suit hubs using this specification. The rim has an ET7 offset and a 6 in (152.4 mm) internal width, giving a compact overall package with the low-profile 195/50 section tyre. The tyre is a WD‐Velocity unit with WR301 tread, tubeless (TL) construction, and carries a load and speed index of 104N (single fitment) and 101N (twin fitment). Performance markings are Fuel C, Wet Grip C, and external noise 72 dB (Class B). The 13in (approximately 330 mm) diameter size is widely used across general-duty and plant trailers where a robust commercial tyre on a compact rim is required.
Key Features:
- 13 in (approx. 330 mm) rim diameter
- 195/50R13C commercial tyre, WD‐Velocity WR301
- 5 stud on 6.5 in PCD (165.1 mm)
- Centre bore: 114.5 mm
- Rim size: 6Jx13; 6 in (152.4 mm) width
- Offset: ET7
- Tubeless construction (TL)
- Load index: Single 104; Twin 101
- Speed rating: N
- Rim finish: Silver
- Fuel efficiency rating: C
- Wet grip rating: C
- External noise: 72 dB (Class B)
Typical Applications:
Used on general-duty, plant and equipment, flatbed and car transporter trailers that require a 13 in rim with a 195/50R13C tyre and a 5-stud 6.5 in (165.1 mm) PCD hub. Suitable where a 114.5 mm centre bore and ET7 offset are specified on the axle and hub assembly.
Also known as:
5x6.5 PCD Trailer Wheel and Tyre
5 on 6.5 Trailer Wheel & Tyre
13in 195/50 R13C Wheel and Tyre
5 Stud 13in Trailer Wheel Silver
Maypole part number MP42220
Product Specifications
| L&S Part No. | 764 107 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Key Features | - 13in rim diameter with 195/50R13C commercial tyre - 5-stud hub pattern on 6.5in PCD - 114.5 mm centre bore for hub compatibility - Load index: Single 104; Twin 101 - Tubeless construction with WR301 tread pattern |
