Description
Overview:

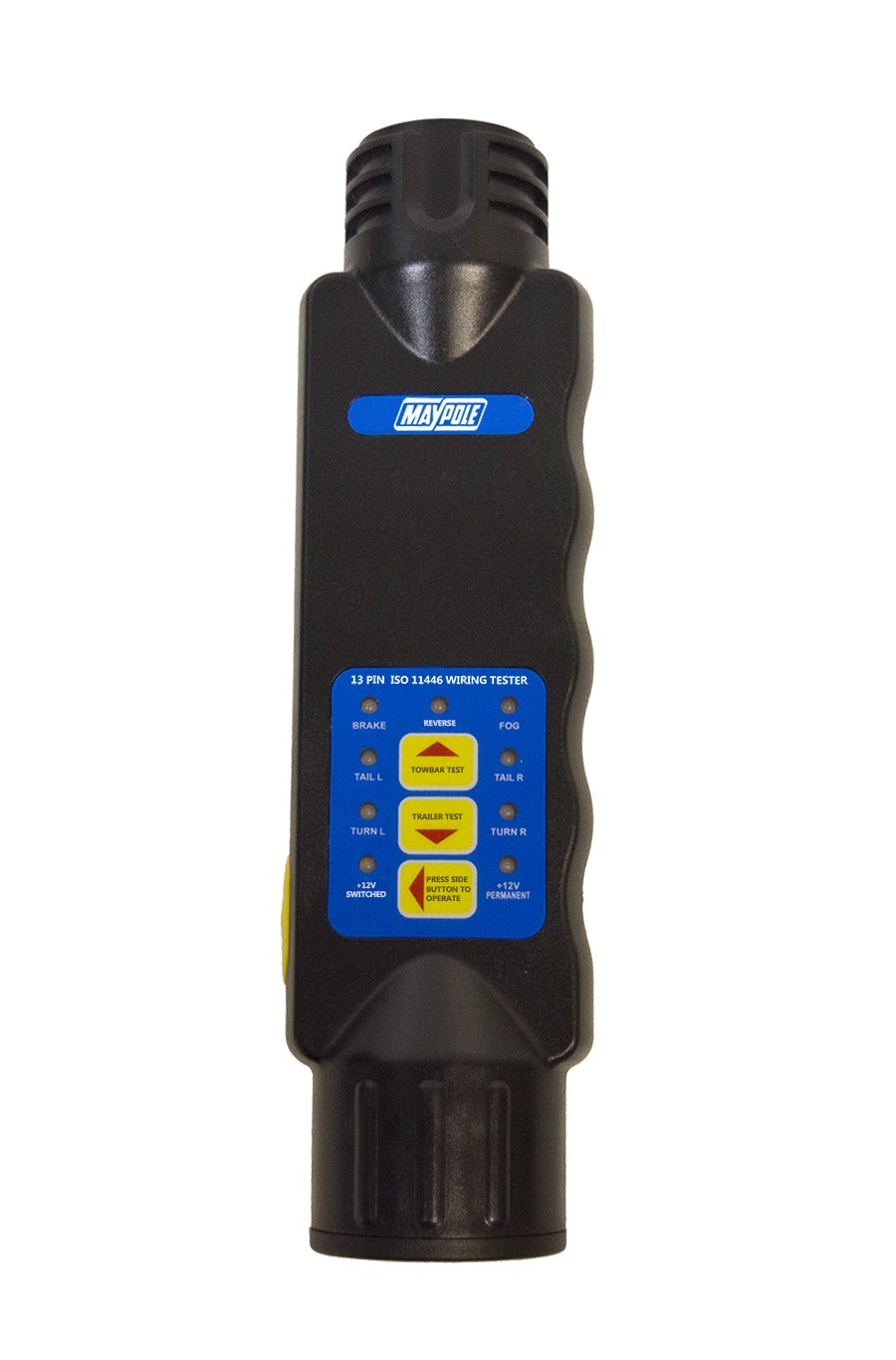

The 13 Pin Car and Trailer Socket Tester (MPN 763 519) is a handheld diagnostic tool for checking 13‐pin towing electrics to ISO 11446 on both towbar sockets and trailer/caravan plugs. It verifies lighting functions such as indicators, tail, brake, reverse and fog, and confirms the presence of the 12V permanent and switched power supplies where applicable. LED status lamps provide an immediate pass/fail indication so wiring faults can be located quickly during workshop, yard or roadside checks. The unit is suitable for use with modern trailers and caravans fitted with LED lamps as well as older units using filament bulbs. It is battery powered for convenience on site and in the field, making it a practical choice for vehicle preparation, fleet inspections and pre-handover testing across cars, vans, pickups, 4x4s, trailers, plant transporters and horseboxes.
Key Features:
- Tests 13‐pin towing electrics to ISO 11446, including lighting functions and 12V feeds
- Dual‐colour LED indication: green for correctly wired circuits, red when a fault is detected
- Compatible with LED and filament bulb trailer/caravan lighting systems
- Momentary yellow test button: press and hold to energise and assess each function
- 12V power supplies are testable on the towbar side only for accurate verification
- Vehicle towbar testing requires ignition on and activation of each function in turn
- Powered by 1 x 9V PP3 battery (not included) for portable operation
- For 13‐pin plugs and sockets only; do not test towbar and trailer sides simultaneously
- Can be used with suitable adaptors (e.g. MP6005 or MP6015) to check 7‐pin/ISO 1724 lighting circuits
Typical Applications:
Used to confirm correct wiring of 13‐pin towbar sockets on towing vehicles and 13‐pin plugs on trailers, caravans, plant and recovery trailers before hire, service, MOT preparation or fleet deployment. Ideal for workshops, mobile technicians and yard inspections. With a suitable adaptor such as MP6005 or MP6015, it can also assist in testing 7‐pin (ISO 1724) lighting circuits.
Also known as:
13‐pin towbar socket tester
13‐pin trailer plug tester
Towbar wiring tester
Trailer light tester
Maypole part number MP1802B
Product Specifications
| L&S Part No. | 763 519 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
