Description
Overview:

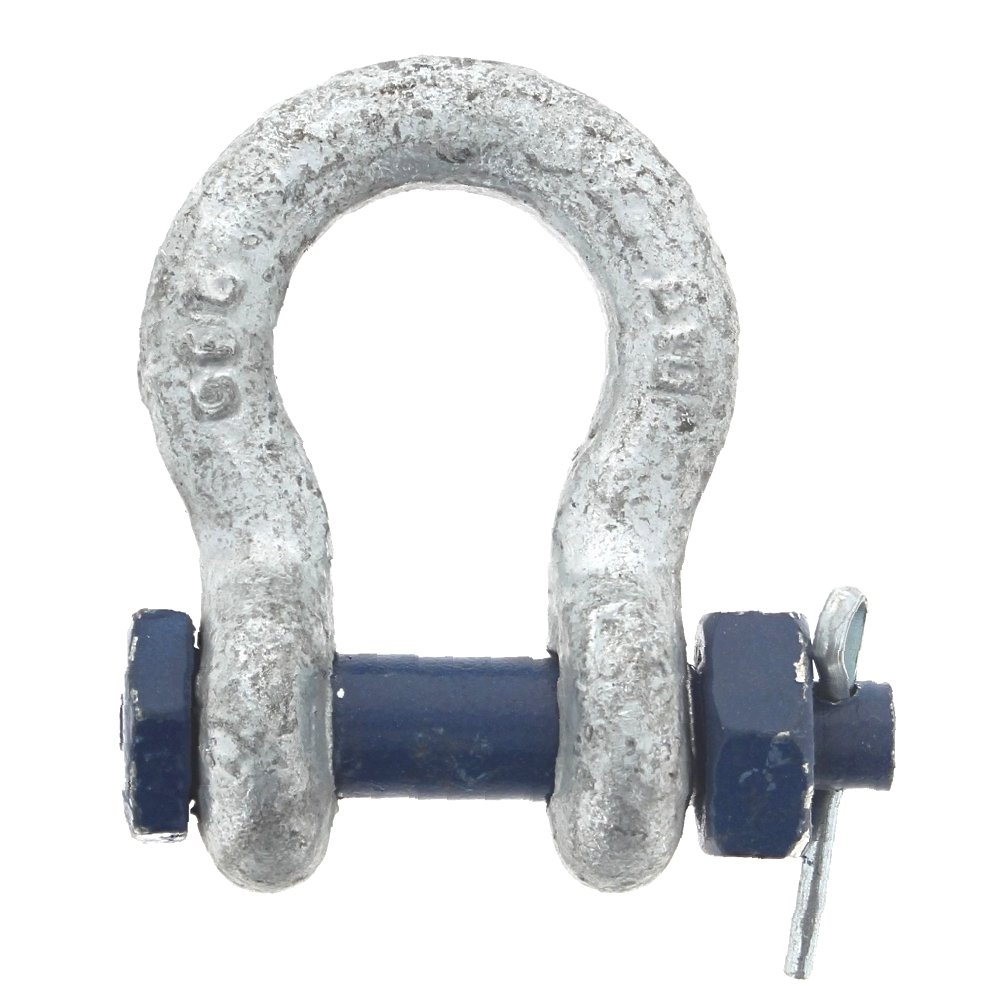

The 16mm Alloy Steel Bow Shackle with Safety Nut and Bolt Pin is a heavy-duty connector for lifting and rigging on plant, construction, and garden machinery. Made from high-quality alloy steel and compliant with U.S. Federal Specification RR-C-271B, it provides dependable strength and consistent performance. The galvanised finish resists rust and weathering in outdoor and offshore conditions. With a working load limit (W.L.L.) of 1.00 tonne (1,000 kg), it is suitable for attaching chains, wire rope, or webbing slings to hooks, eyes, or lifting points on equipment such as excavators, loaders, winches, and trailers. The bolt-type pin uses a safety nut with a retaining pin for secure fastening, and the 11 mm (7/16 in) pin works with a 16 mm jaw width for versatile use.
Key Features:
- Alloy steel construction for high strength and durability under load
- W.L.L. 1.00 tonne (1,000 kg) for controlled lifting and secure connections
- Galvanised finish provides reliable corrosion resistance in harsh environments
- Safety nut and bolt pin with secondary retention to reduce the risk of loosening in service

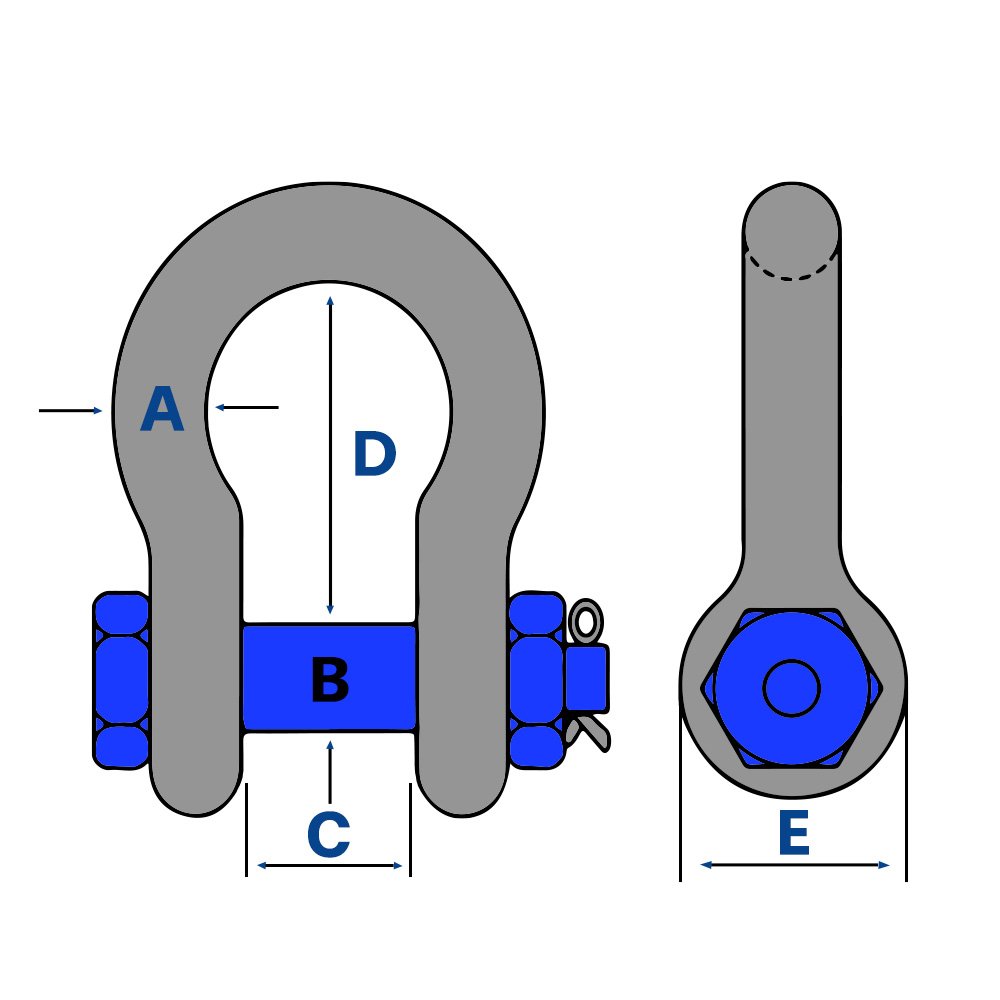

- 11 mm (7/16 in) pin diameter and 16 mm jaw width to suit common chain, wire rope, and webbing sizes
- Broad bow profile helps accommodate multi-leg slings and reduces tight bending of slings and ropes
- Smooth, rounded bearing surfaces to minimise wear on connected components
- Meets RR-C-271B for consistent quality and predictable performance
- Simple to fit and remove with standard hand tools, aiding quick rigging changes
Typical Applications:
Used for lifting and pulling tasks, sling terminations, attaching to tow points, and creating secure anchor points on plant and trailers. Common in construction sites, utilities, fabrication shops, marine and quayside work, forestry, agriculture, and landscaping. Suitable for connecting chains, wire ropes, and textile slings during hoisting, load restraint, and recovery tasks within the stated W.L.L.
Also known as:
Anchor shackle, bolt-type shackle, bolt-and-nut shackle with split pin, bow clevis, rigging clevis, galvanised anchor bow, bolt pin anchor shackle, safety bolt shackle.
Product Specifications
| L&S Part No. | 200 642 |
|---|---|
| Unit of Sale | 1 |
