Description
Overview:

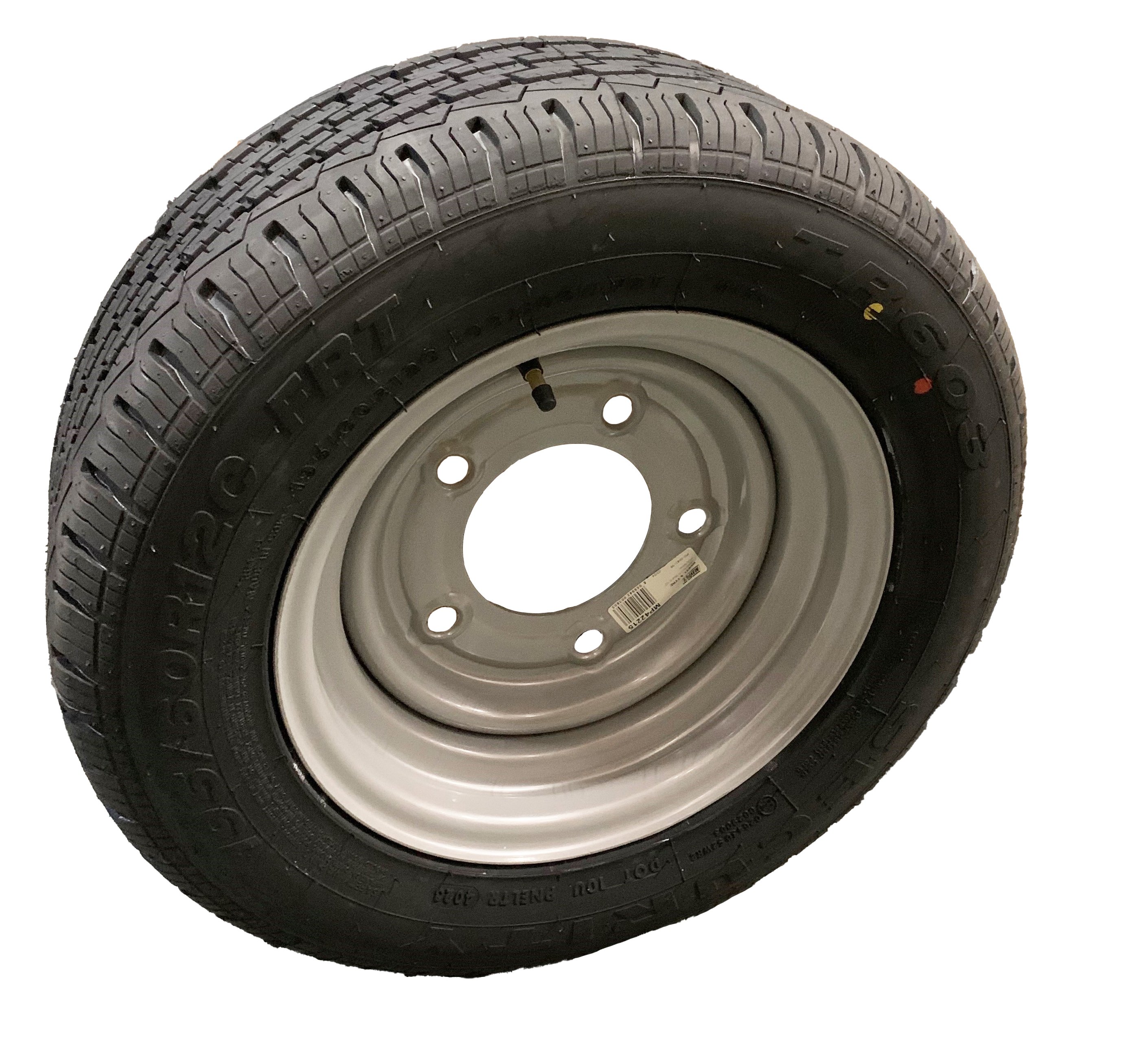

This is a 12in 195/60R12C 5-stud 6.5in PCD silver trailer wheel and tyre assembly (MPN 764 122). It pairs a commercial-grade 195/60R12C tyre with a 6.0Jx12H2 rim in a silver finish, ready to mount on hubs with a 5-stud, 6.5in (165.1 mm) pitch circle diameter. The tyre is the Security TR603 pattern with load and speed indices of 108N (single) and 106N (twin), suitable for heavy-duty trailer use. The rim has an offset of ET0, a centre bore of 114.5 mm, and is designed for tubeless (TL) fitment. Overall wheel diameter is 12 in (approximately 305 mm) and rim width is 6.0 in (approximately 152.4 mm). EU tyre labelling is Fuel C, Wet Grip C, and Noise class B at 72 dB. This specification is commonly used across goods, boat and plant trailers that require a 12 in wheel with a 5 x 6.5 in PCD.
Key Features:
- 12 in (≈305 mm) wheel diameter with 6.0Jx12H2 rim
- 195/60R12C commercial tyre with Security TR603 tread pattern
- 5-stud hub pattern on 6.5 in (165.1 mm) PCD
- Centre bore: 114.5 mm
- Offset: ET0 (0 mm)
- Rim colour: Silver
- Tubeless (TL) construction
- Load & speed index: Single 108N, Twin 106N
- EU tyre label: Fuel C, Wet Grip C, Noise B (72 dB)
- Supplied as a wheel and tyre assembly ready to fit
Typical Applications:
Suitable for replacement and maintenance on trailers specifying a 12 in wheel with a 5 x 6.5 in (5 x 165.1 mm) PCD and 114.5 mm centre bore. Commonly used on goods trailers, boat trailers, plant and equipment trailers, and light commercial towing where a 195/60R12C tubeless tyre and ET0 rim are required.
Also known as:
- Maypole part number MP42215
- 195/60 R12C Wheel & Tyre Assembly
- 5 x 6.5 in PCD (5 x 165.1 mm)
- Security TR603 195/60R12C
Product Specifications
| L&S Part No. | 764 122 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Key Features | - 12 in wheel diameter with 6.0Jx12H2 rim - 195/60R12C tyre with Security TR603 tread - 5-stud pattern on 6.5 in (165.1 mm) PCD - Load index: Single 108N, Twin 106N - EU label: Fuel C, Wet Grip C, Noise B (72 dB) |
