Description
Overview:
The 30mm Position 10 Link Pin is a heavy‐duty replacement pin for the working joints on mini excavator linkages, designed for JCB machines such as the 8015 and 8018. Manufactured from tough, high‐strength steel and precision machined, it provides a stable pivot point that helps maintain smooth movement and accurate alignment across the linkage. The pin measures 30 mm in diameter (1.18 inches) and 145 mm in overall length (5.71 inches), making it suitable where this size is specified in service manuals or parts diagrams. Often shown as "Position 10" on breakdown drawings, it is a practical choice when the original pin is worn, scored, or undersize. Manufacturer reference: 208 134. Fit is dependent on the stated dimensions and the machine's specific linkage position.
Key Features:
- 30 mm diameter (1.18 inches) and 145 mm length (5.71 inches) for the correct linkage size
- Strong steel construction for high load and impact conditions on site
- Precision‐machined surfaces to support smooth pivoting and reduced wear
- Consistent tolerances for a snug fit with compatible bushes and link eyes
- Helps restore alignment and reduces play in boom, dipper, or bucket linkages
- Straightforward installation using standard workshop tools

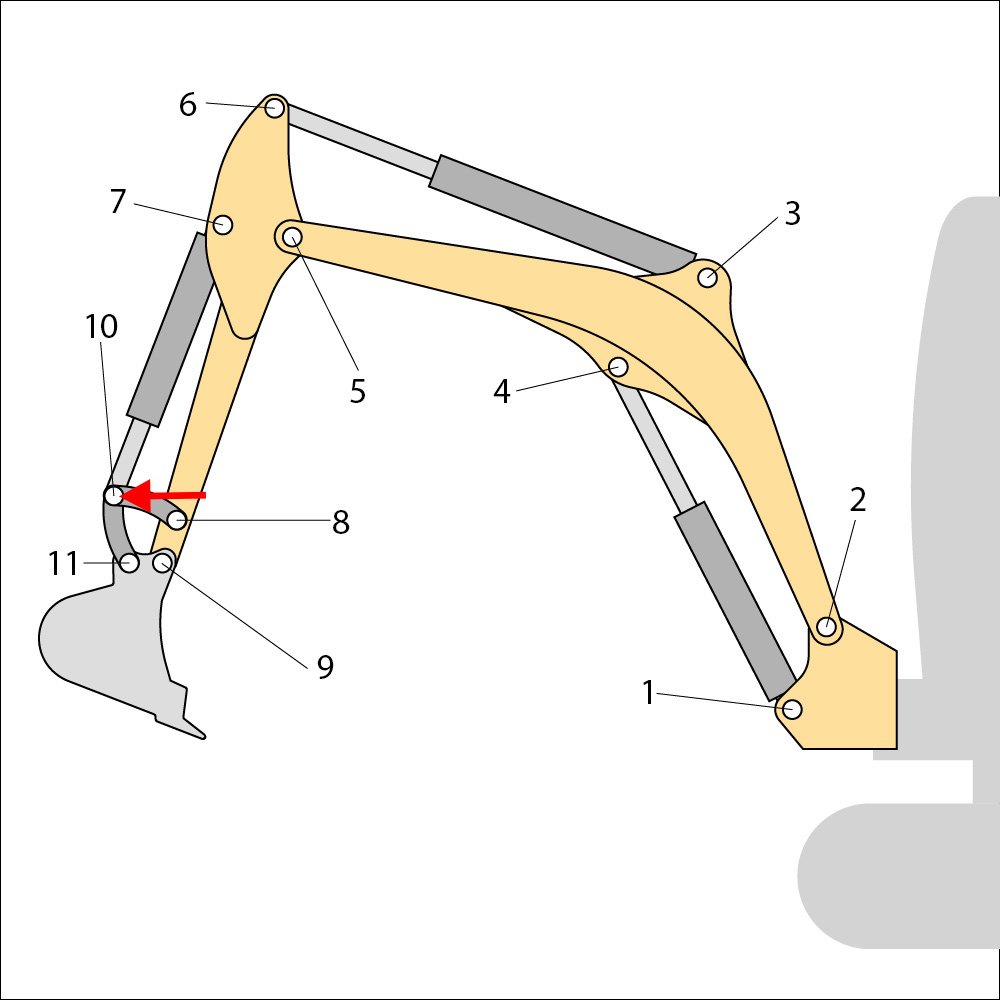

- Suitable for the linkage point commonly listed as "Position 10" on JCB diagrams
- Durable finish designed to cope with mud, vibration, and frequent use
- Reliable choice for planned maintenance or quick repairs to minimise downtime
- Manufacturer reference: 208 134 for easy identification in parts records
Typical Applications:
Used as a pivot pin within mini excavator linkages, including bucket link, dipper link, or quick‐hitch connections. Ideal when refurbishing worn joints on JCB compact machines to restore smooth movement, reduce knocking, and maintain precise control during digging, grading, or loading tasks.
Also known as:
Excavator linkage pin, bucket link pin, dipper link pin, pivot pin, JCB linkage pin, position 10 pin, 30 mm pin, machine link pin.
Fits Models:
JCB 8015, JCB 8018
