Description
Overview:

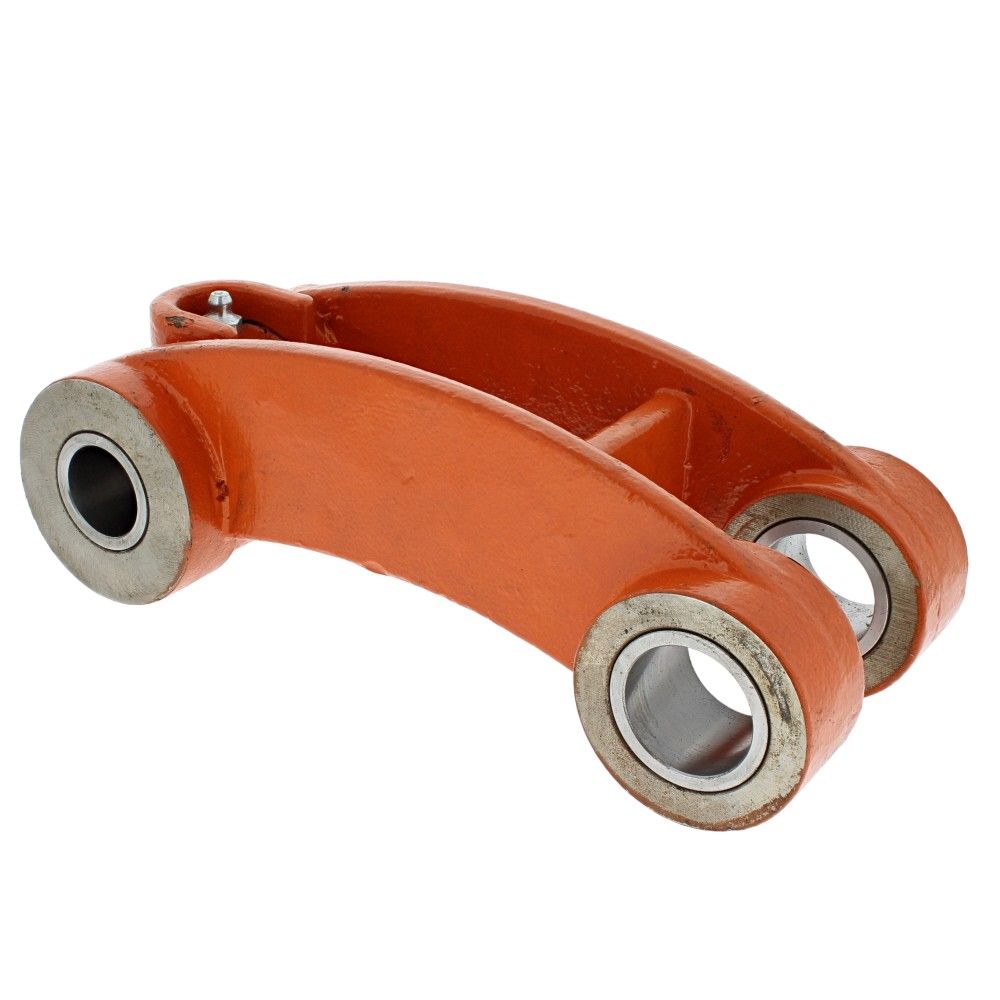

The Bucket Link complete with bushes (part no. 231/03900) is a heavy-duty steel linkage that connects the bucket to the dipper arm on compact excavators. It keeps the bucket movement smooth and controlled while resisting wear in demanding work. Supplied with two service bushes for the common diagram positions 8 and 11, it is designed for a reliable fit and long life. Typical dimensions include a small eye diameter of 25 mm (about 1 inch), a large eye diameter of 30 mm (about 1.18 inches), hole centres at 170 mm (about 6.7 inches), and an overall link width around 95.5 cm (about 37.6 inches). Suitable for JCB 801 series and Kubota KX36 or KX41 machines, it's a straightforward replacement to restore accurate bucket articulation.
Key Features:
- Durable steel construction with a protective finish for corrosion resistance and long service life
- Supplied complete with position 8 and 11 bushes for a quick, tidy install
- Precision-machined eyes: 25 mm (about 1 inch) and 30 mm (about 1.18 inches) for correct pin fit
- Hole centre spacing 170 mm (about 6.7 inches) for accurate alignment
- Overall link width approximately 95.5 cm (about 37.6 inches) providing robust support
- Helps reduce play and uneven wear, keeping bucket action smooth and predictable
- Direct replacement for JCB 231/03900; cross-compatible with Kubota equivalents listed below
- Suitable for compact excavators using pin-and-bush bucket mountings
- Built to handle trenching, grading and frequent bucket cycling in tough conditions
- Straightforward to fit with standard workshop tools
Typical Applications:
Used to restore or maintain precise bucket linkage movement on mini excavators during trenching, grading, footing preparation, landscaping, drainage work, and general utilities. Ideal when replacing worn links or bushes that cause bucket play, misalignment, or uneven wear.
Also known as:
Bucket dog-bone, dipper link, bucket linkage bar, coupler link, mini excavator bucket link, bellcrank link, link bar.
Fits Models:
8008, 8008CTS, 801, 801.4, 801.5, 801.5PRODIG, 801.6, 801.6N, 8010 CTS, 8010CTS, 8014, 8014 CTS, 8014CTS, 8015, 8016, 8016 Super, 8016N, 8016Super, 8017, 8018, 8018 CTSDL, 8018 Super, 8018CTS, 8018CTSAG, 8018CTSDL, 8018Super, 802, 8020, 8020 CTS, 8020CTS, KH41, KX36, KX36-2, KX362, KX41, KX41-2, KX41-2S, KX41-2V, KX412, KX412S, KX412V, MICRO, MICROPLUS, MICROPLUSTIER2, MINICX2WD, MINICX4WD
Alternate Part Numbers:
68721-66700, 68721 66700, 6872166700, 231/03901, 231/03900, 23103901, 23103900
Product Specifications
| L&S Part No. | 202 231 |
|---|---|
| Unit of Sale | 1 |
| Applications | 8008, 8008CTS, 801, 801.4, 801.5, 801.5PRODIG, 801.6, 801.6N, 8010 CTS, 8010CTS, 8014, 8014 CTS, 8014CTS, 8015, 8016, 8016 Super, 8016N, 8016Super, 8017, 8018, 8018 CTSDL, 8018 Super, 8018CTS, 8018CTSAG, 8018CTSDL, 8018Super, 802, 8020, 8020 CTS, 8020CTS, KH41, KX36, KX36-2, KX362, KX41, KX41-2, KX41-2S, KX41-2V, KX412, KX412S, KX412V, MICRO, MICROPLUS, MICROPLUSTIER2, MINICX2WD, MINICX4WD |
| Machine Type | Excavators |
| Fits Brands | JCB, Kubota |
| Fits Models | KX36 | KX36-2 | KX41 | KX41-2 | 801 | 801.4 | 801.5 | 801.6 | 802 | 8008 | 8014 | 8015 | 8016 | 8018 | 8010 CTS | 8014 CTS | 8018 Super | 8020 CTS | 8016 Super | 8018 CTSDL |
