Description
Overview:

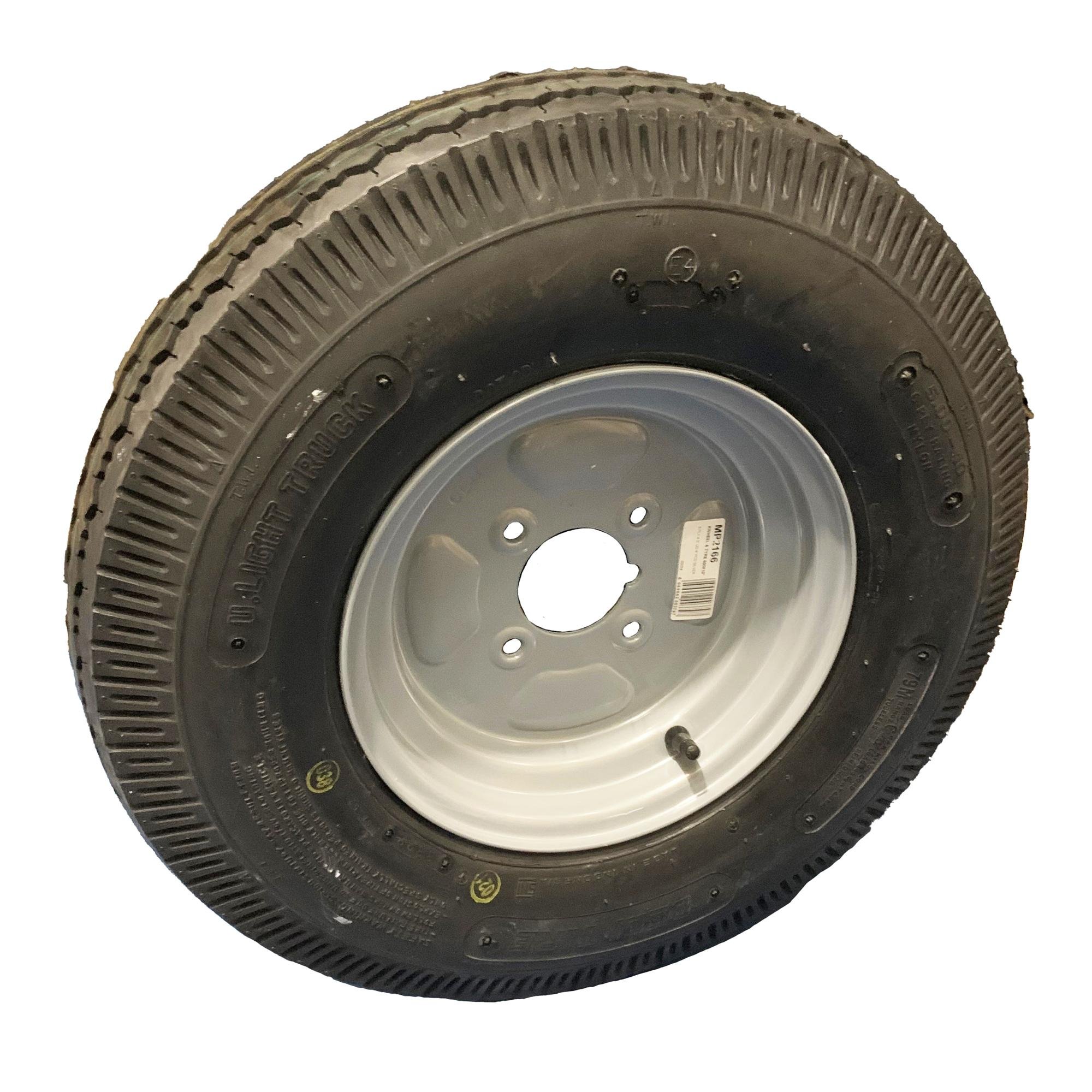

Trailer Wheel & Tyre 5.00-10, 10in Rim, 4 Stud 4in PCD, 6 Ply, Silver (MPN 764 050) is a complete trailer wheel and tyre assembly for light-duty towing applications. It pairs a 5.00-10 trailer tyre with a 10 inch (254 mm) rim finished in silver. The tyre is a tubeless (TL) Deli Velocity pattern with a 6 ply rating and Load/Speed Index 79M, suitable for typical small trailer service. The rim has a 4 stud, 4 inch (101.6 mm) PCD, a 66.7 mm centre bore and zero offset (ET0), making it a common fitment on hubs drilled to the older 4x4 inch standard. Supplied as a mounted wheel and tyre, it is intended for use on general-purpose trailers, small plant and utility trailers where these dimensions and ratings are specified.
Key Features:
- Tyre size: 5.00-10 (10 in/254 mm rim diameter; approx. 5.00 in/127 mm nominal section width)
- Ply rating: 6 PR for light trailer duty
- Load & Speed Index: 79M (approx. 437 kg per tyre at up to 130 km/h)
- Tubeless (TL) construction
- Tyre make and tread: Deli / Velocity
- Rim size/spec: 3.50 Bx10H2 (10 in/254 mm diameter; approx. 3.50 in/88.9 mm rim width)
- Stud pattern: 4 stud on 4 in (101.6 mm) PCD
- Centre bore: 66.7 mm
- Offset: ET0 (zero offset)
- Rim colour/finish: Silver
Typical Applications:
Used on small and general-purpose trailers where a 4-stud 4 in (101.6 mm) PCD hub is fitted, including box trailers, camping and utility trailers, and light plant/transport setups. Suitable as a like-for-like replacement where a 5.00-10 tubeless tyre on a 10 in rim with ET0, 66.7 mm centre bore and Load/Speed Index 79M is specified.
Also known as:
500x10 trailer wheel and tyre
5.00-10 TL trailer tyre on rim
4x4 in PCD trailer wheel assembly
79M 6 ply trailer wheel & tyre
Deli Velocity 5.00-10
Maypole part number MP2166
Product Specifications
| L&S Part No. | 764 050 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Key Features | - Tyre size: 5.00-10, 10 in rim diameter - 4 stud, 4 in PCD for common hub fitment - 6 ply rating for light trailer duty - Load/Speed Index 79M, 437 kg at 130 km/h - Tubeless Deli Velocity pattern tyre |
