Description
Overview:

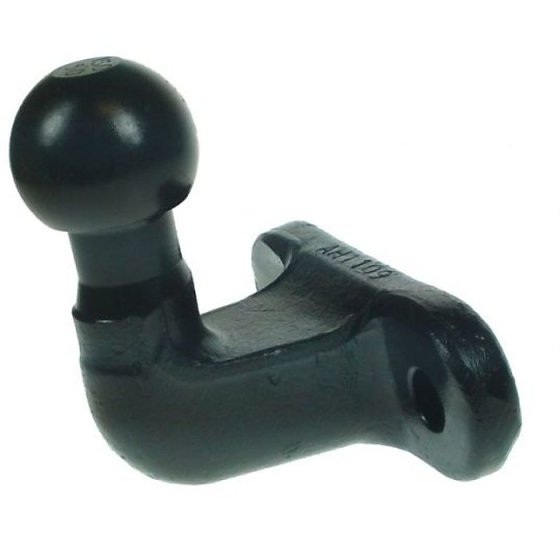

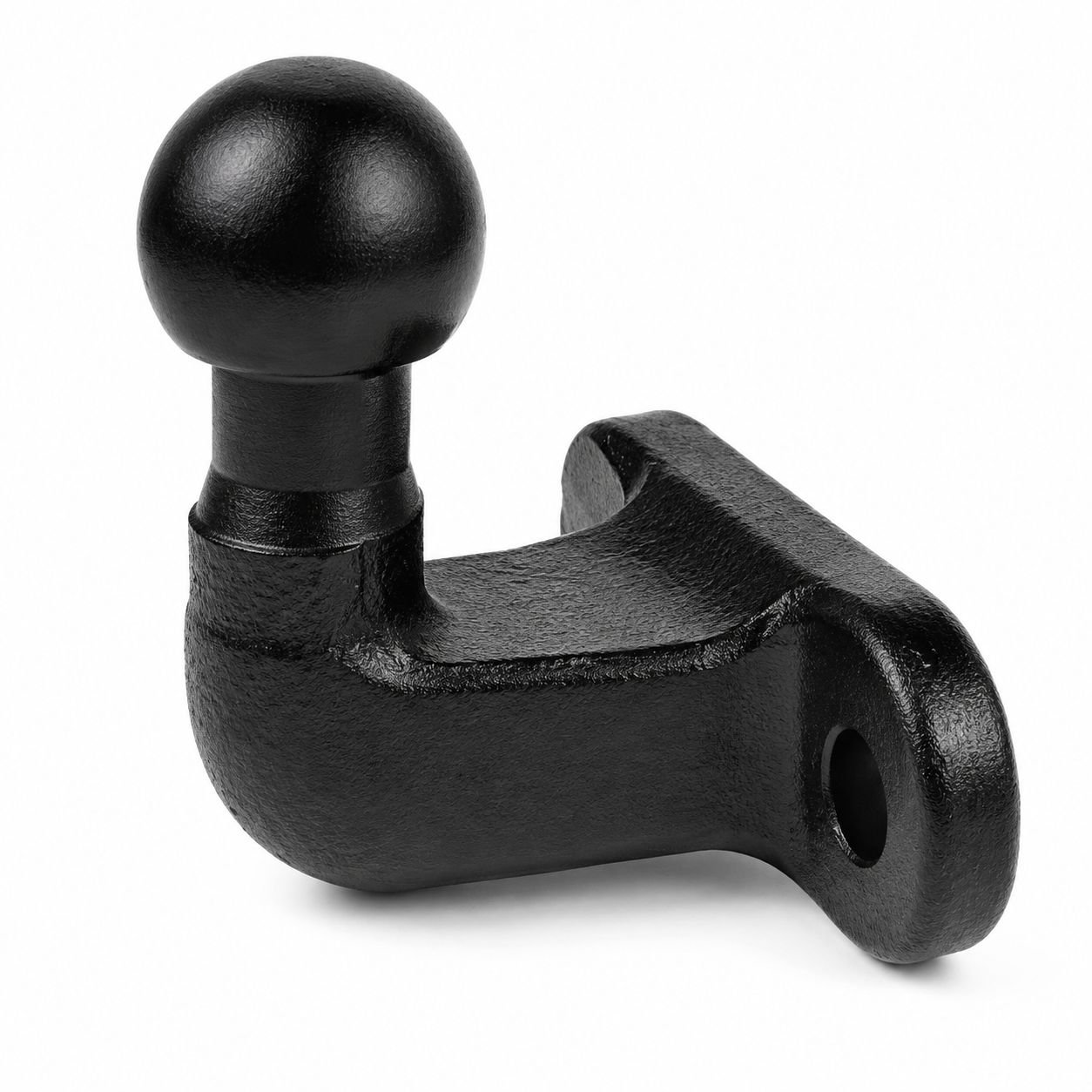

High reach 50mm tow ball in black, with an extended neck that lifts the ball clear of the towbar plate to give additional clearance for the coupling head. Suits AL-KO coupling applications where a standard flange ball fouls the trailer nose or handbrake lever.
Specification:
- D-value: 17.2kN
- S-value (vertical load): 350kg
- Ball diameter: 50mm
- Finish: black
Towing Capacity:
Maximum braked trailer weight derived from the D-value:
- Behind a 3,500kg vehicle: 3,510kg
- Behind a 7,500kg vehicle: 2,280kg
These are coupling limits only. The lowest of the coupling limit, the towing vehicle's plated towing limit, the trailer's gross weight and the driver's licence entitlement applies. Centre-axle trailers are rated on Dc and V-value rather than D.
Typical Applications:
Trailers and caravans fitted with AL-KO couplings where clearance around the coupling head is restricted, and on vehicles where bumper or step position limits access to a standard flange ball.
Product Specifications
| L&S Part No. | 207 083 |
|---|---|
| Manufacturer | Maypole |
| OEM No. | 5005B |
| Unit of Sale | 1 |
| Machine Type | Tow Couplings |
| Key Features | - Extended neck for extra coupling head clearance - D-value rating: 17.2kN - Vertical load capacity: 350kg - 50mm ball diameter, black finish - Max trailer weight: 3,510kg (3,500kg vehicle) |
