Overview:

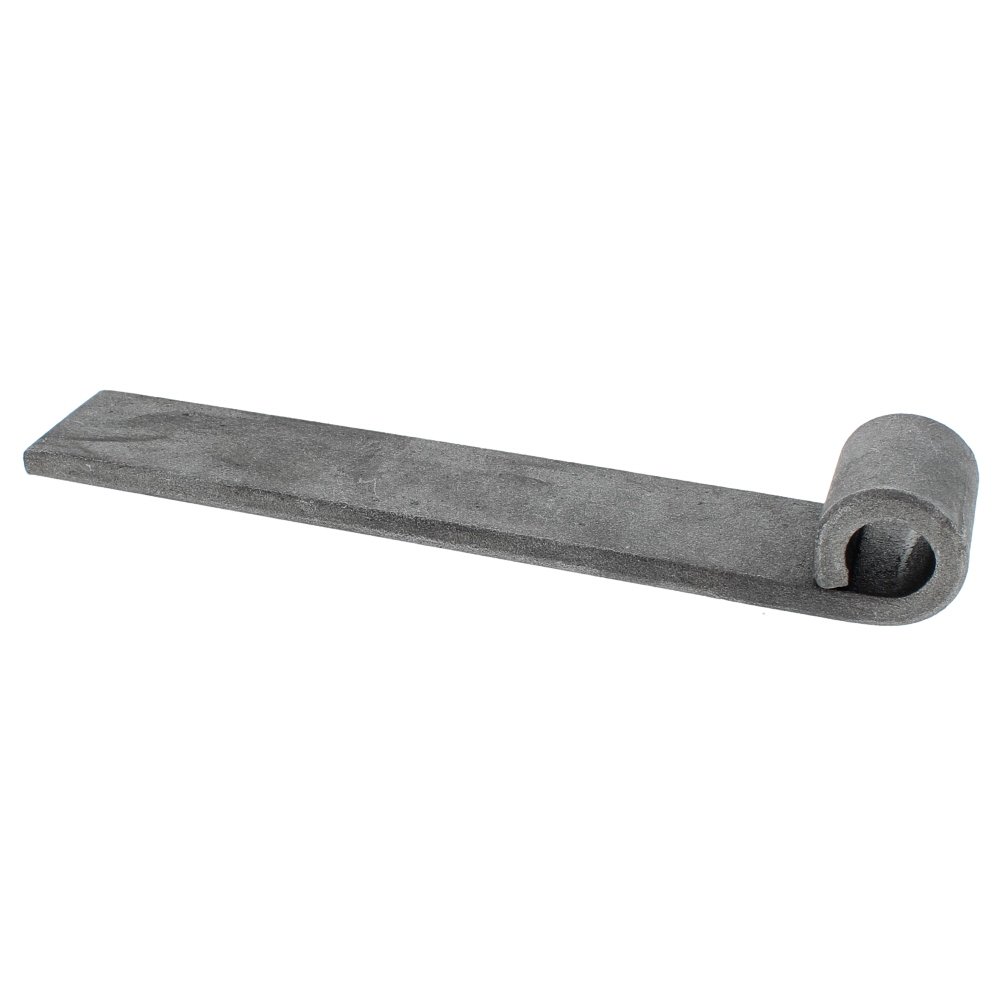

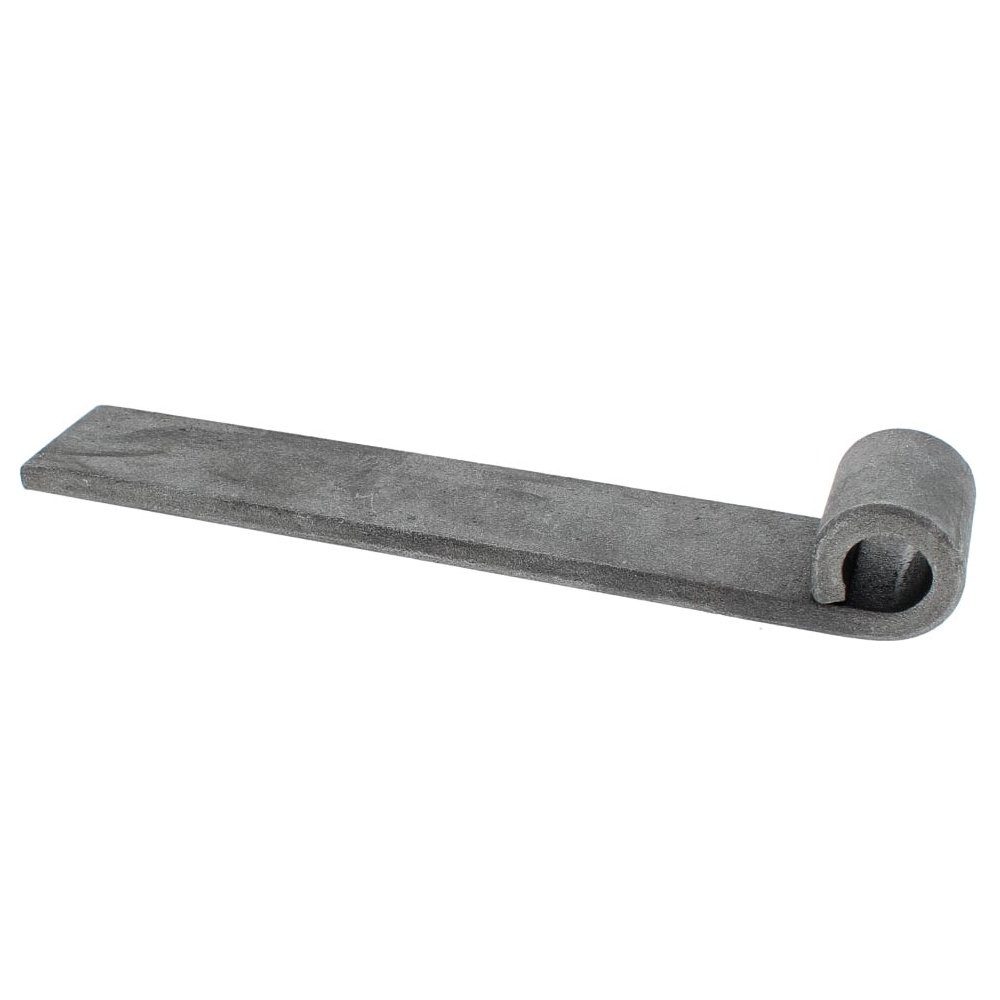

The 6 inch Straight Hinge for 1/2 inch gudgeon pins is a robust, undrilled hinge strap designed for dependable pivot points on construction and garden machinery. Made from steel with a self-colour (plain) finish, it is ready for drilling, welding, or coating to suit your installation. The straight pattern provides a stable, low-profile mounting face for fabrications and repairs. Overall dimensions are 150 mm x 40 mm x 8 mm (6 in x 1.57 in x 0.31 in), giving a compact footprint with good strength. Sized to take 1/2 in (12.7 mm) gudgeon pins, it delivers a secure, smooth hinge action when paired with the correct pin. Ideal for fabricators, maintenance teams, and DIY users needing a versatile, long-lasting hinge solution.
Key Features:
- Undrilled plate for custom hole positions, accurate alignment, and clean fabrication
- Fits 1/2 in (12.7 mm) gudgeon pins for a secure, reliable pivot
- Steel construction with a self-colour finish for durability and easy welding or painting
- Compact, straight pattern: 150 mm x 40 mm x 8 mm (6 in x 1.57 in x 0.31 in)
- Smooth hinge action when matched with the correct pin size, helping to reduce play and wear
- Suitable for new builds, retrofits, and maintenance on machinery and site equipment
- Simple to fit: drill to suit or weld into place as required
- Plain finish accepts primers, paints, or protective coatings for corrosion resistance
- Versatile component for brackets, guards, covers, doors, and linkages on machinery
Typical Applications:
Used as a hinge or pivot strap on construction plant, agricultural and garden machinery, tool cabinets, engine covers, guards, access panels, chutes, and light-duty doors. Useful for fabricating custom hinges on mowers, compact machinery attachments, small trailers, and site equipment where a 1/2 in (12.7 mm) pin fit is needed and hole positions must be set on-site.
Also known as:
Straight hinge strap, gudgeon hinge strap, undrilled hinge, straight strap hinge, hinge strap for 1/2 in pins, blank hinge plate, machinery hinge strap, gudgeon-compatible hinge.
Product Specifications
| L&S Part No. | 201 500 |
|---|---|
| Unit of Sale | 1 |
| Size | 150mm x 40mm x 8mm (1/2" pin) |
