Description
Overview:

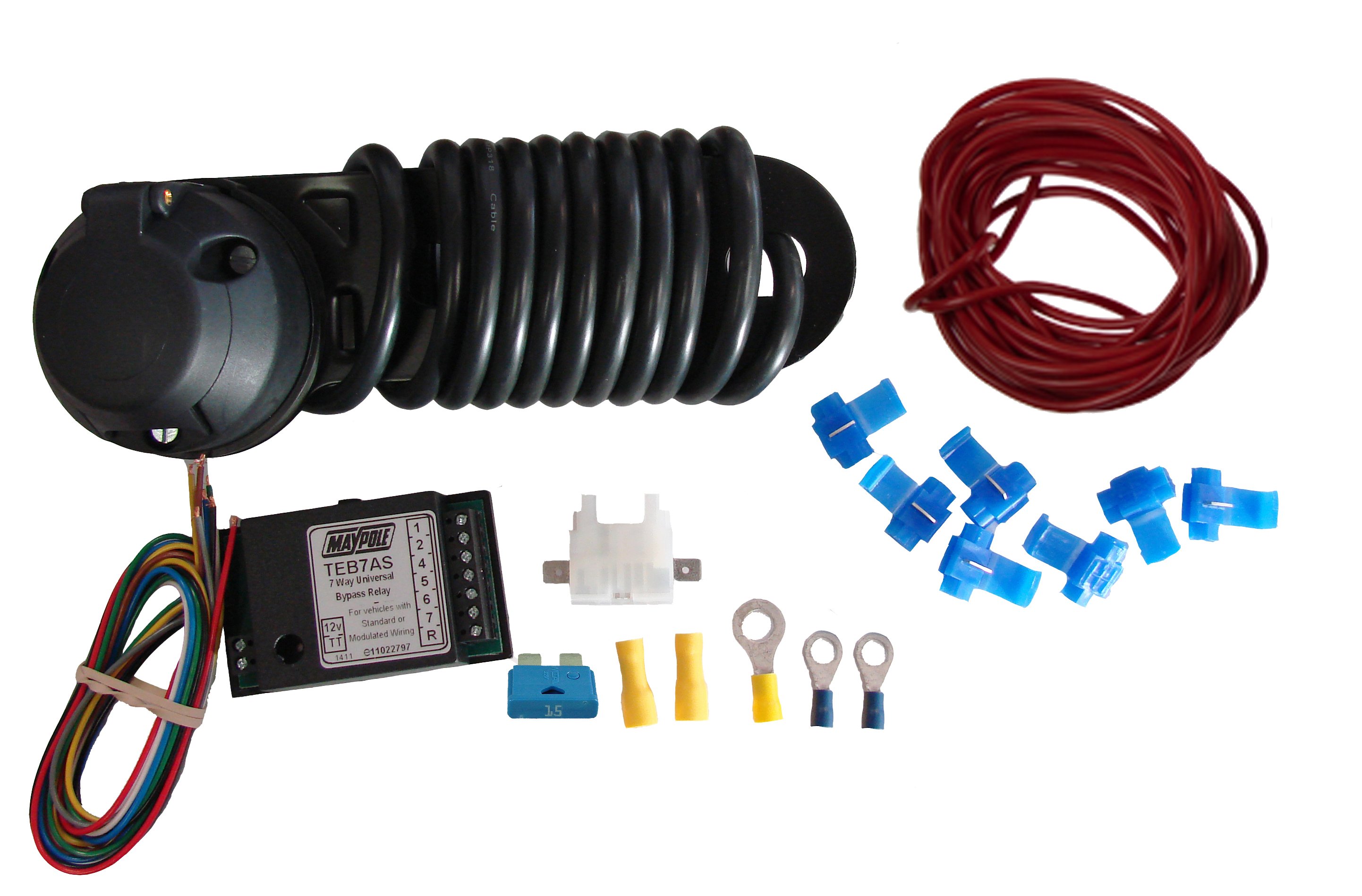

This 7-pin towbar wiring kit with 7-way bypass relay (MPN 763 962) is a universal 12V towing electrics set for fitting a standard 7-pin road-light socket to cars, vans and light commercials. The kit includes a 7-pin socket on a mounting plate with gasket and fixings, a 12V 7-way bypass relay, 1.5 m (approx. 4 ft 11 in) of 7-core trailer cable, and a fused power supply lead. The bypass relay reduces load on the vehicle lighting circuits and provides a facility to drive a dash tell-tale if required. Supplied with inline blade fuse holder and 15 A blade fuse, plus snap connectors and pre-insulated terminals to complete the installation. Instructions are included. Cable lengths are approximate and suit most standard towbar installations where the socket is close to the towbar mounting.
Key Features:
- 12V 7-way bypass relay with tell-tale output facility
- 7-pin towing socket (N/S type) with mounting plate, gasket and fixing bolts
- 1.5 m 7-core trailer cable (approx. 4 ft 11 in) to the socket
- 5 m x 3.0 mm2 single-core power cable, 27 A rating (approx. 16 ft 5 in)
- Inline blade fuse holder with 15 A blade fuse
- 7 x blue snap connectors for signal pick-up
- 2 x 6.4 mm blue pre-insulated ring terminals (approx. 1/4 in)
- 1 x 8.4 mm yellow pre-insulated ring terminal (approx. 5/16 in)
- 2 x 6.4 mm yellow pre-insulated blade terminals (approx. 1/4 in spade)
- Designed for 12V towing electrics and road lighting circuits
- Installation instructions included
- Cable lengths quoted are approximate
Typical Applications:
For adding 7-pin (12N) road lighting to trailers, small plant trailers, light boards, and cycle carriers on cars, vans and light commercial vehicles. Used where a universal bypass relay is required to interface with the vehicle's lighting circuits while supplying the trailer socket via a fused feed.
Also known as:
7-pin towing electrics kit
7-way bypass relay wiring kit
12N towbar wiring kit with relay
Universal 7-pin towbar wiring loom
Maypole part number MP3837
Product Specifications
| L&S Part No. | 763 962 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
