Description
Overview:

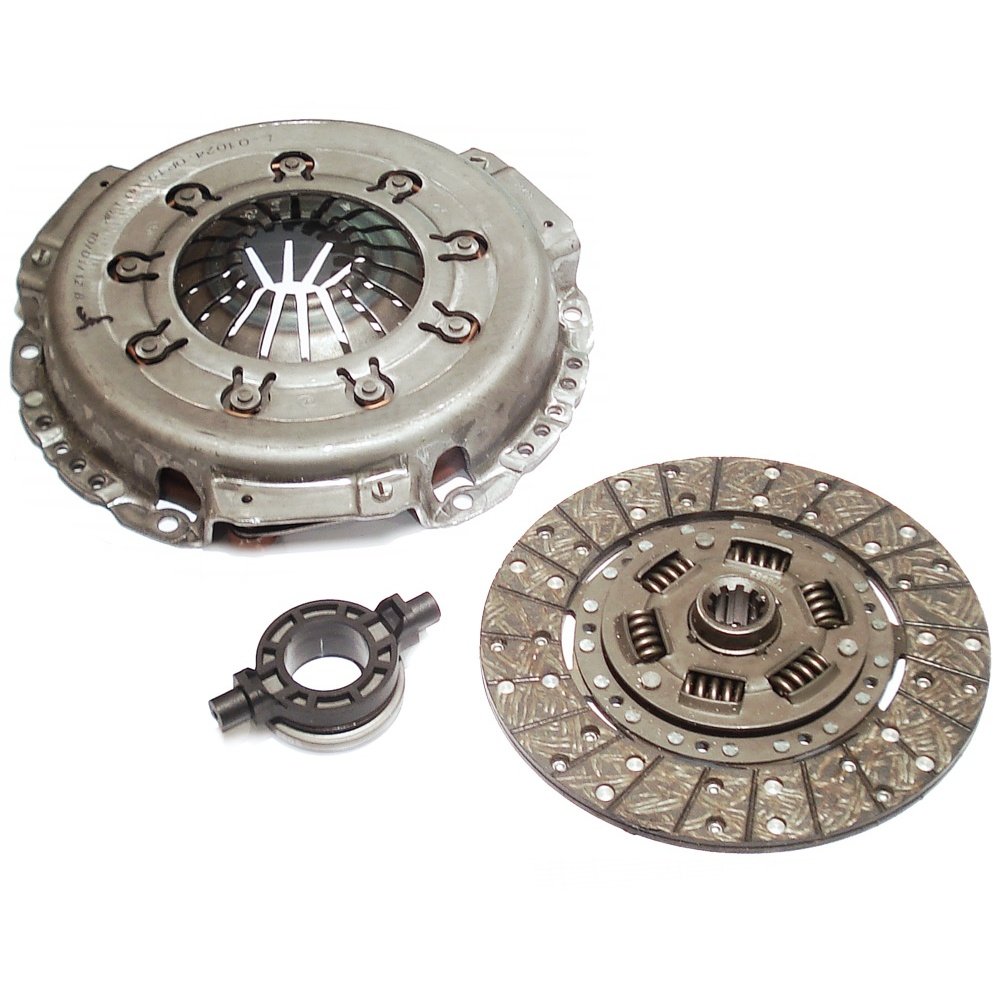

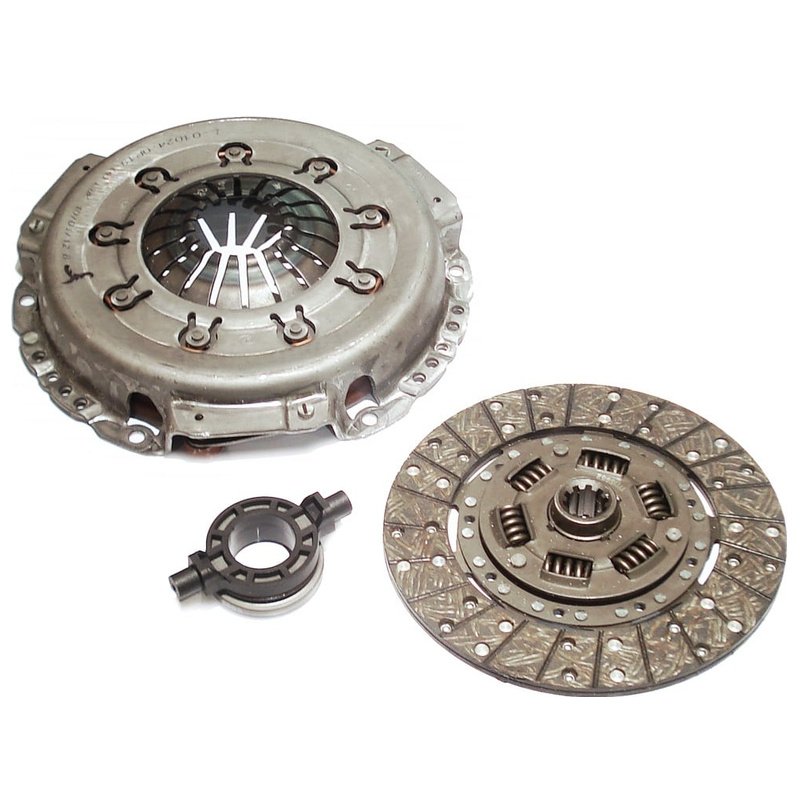

This 9.5" (241 mm) diaphragm-type clutch kit is a complete replacement set for later Thwaites and Benford dumpers with manual gearbox systems. Built for heavy-duty site use, it features a robust pressed-steel clutch cover with diaphragm spring, a 10-spline friction plate with durable lining, and a matched release bearing for consistent engagement. The kit is supplied as a matched set for reliable power transfer and smooth take-up under load. Manufacturer Part Number (MPN) 109 111. Component references: 9.5" Clutch Cover T102467, Clutch Plate T102468, and Release Bearing T101969. Designed to fit typical 2‐3 tonne dumper applications, it supports efficient operation and reduces downtime by renewing all key wear parts in one straightforward service.
Key Features:
- 9.5" (241 mm) diaphragm clutch for compact dumper drivetrains
- Complete kit: cover (T102467), plate (T102468), release bearing (T101969)
- 10-spline centre for correct mating to compatible input shafts
- Durable friction lining for smooth engagement and reduced judder
- Steel cover and diaphragm spring for stable clamping force
- Designed for straightforward replacement during routine maintenance
- Supports reliable power transmission to the manual gearbox
- Helps restore pedal feel and engagement point consistency
- Supplied as matched components to minimise fitting issues
- Suitable for later Thwaites and Benford dumper configurations
Typical Applications:
Used to replace worn clutch assemblies on site dumpers working in construction, groundworks, utilities, landscaping, and aggregates handling. Ideal for machines operating on frequent stop-start cycles, hill starts, and loaded manoeuvres where smooth, predictable take-up and dependable torque transfer are essential for productivity and safety.
Also known as:
Dumper clutch kit, 9.5 inch (241 mm) clutch assembly, diaphragm clutch set, friction clutch and cover, 10-spline transmission clutch, clutch plate and cover kit, release bearing kit for dumper, manual gearbox clutch pack.
Fits Models:
2 Ton, 2Ton, 3 Ton, 3Ton, Benford 2 Ton, Benford 3 Ton, Benford2Ton, Benford3Ton, MACH 420, MACH420
Alternate Part Numbers:
T102467, T102468, T101969, 12235, 6550, 6551
Product Specifications
| L&S Part No. | 109 111 |
|---|---|
| Unit of Sale | 1 |
| Size | 9.5" |
| Applications | 2 Ton, 2Ton, 3 Ton, 3Ton, Benford 2 Ton, Benford 3 Ton, Benford2Ton, Benford3Ton, MACH 420, MACH420 |
| Machine Type | Dumpers |
| Fits Models | MACH 420 Dumper |
