Description
Overview:

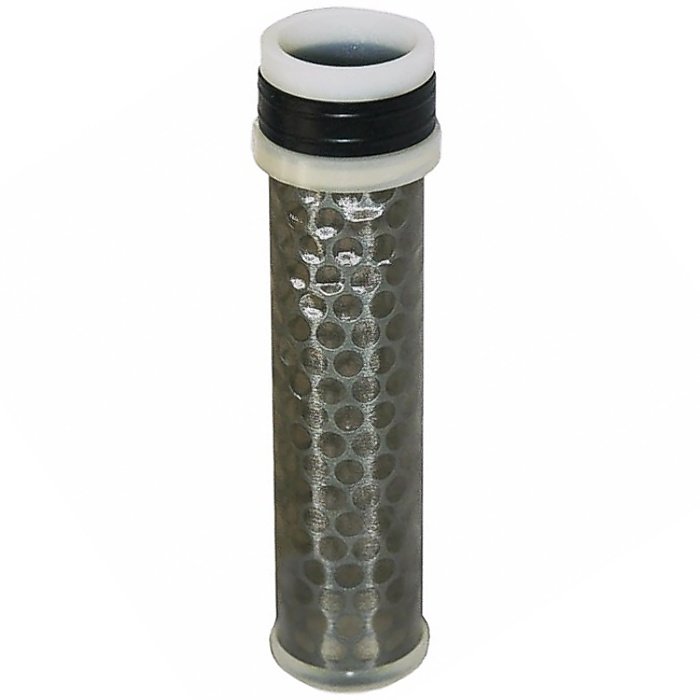

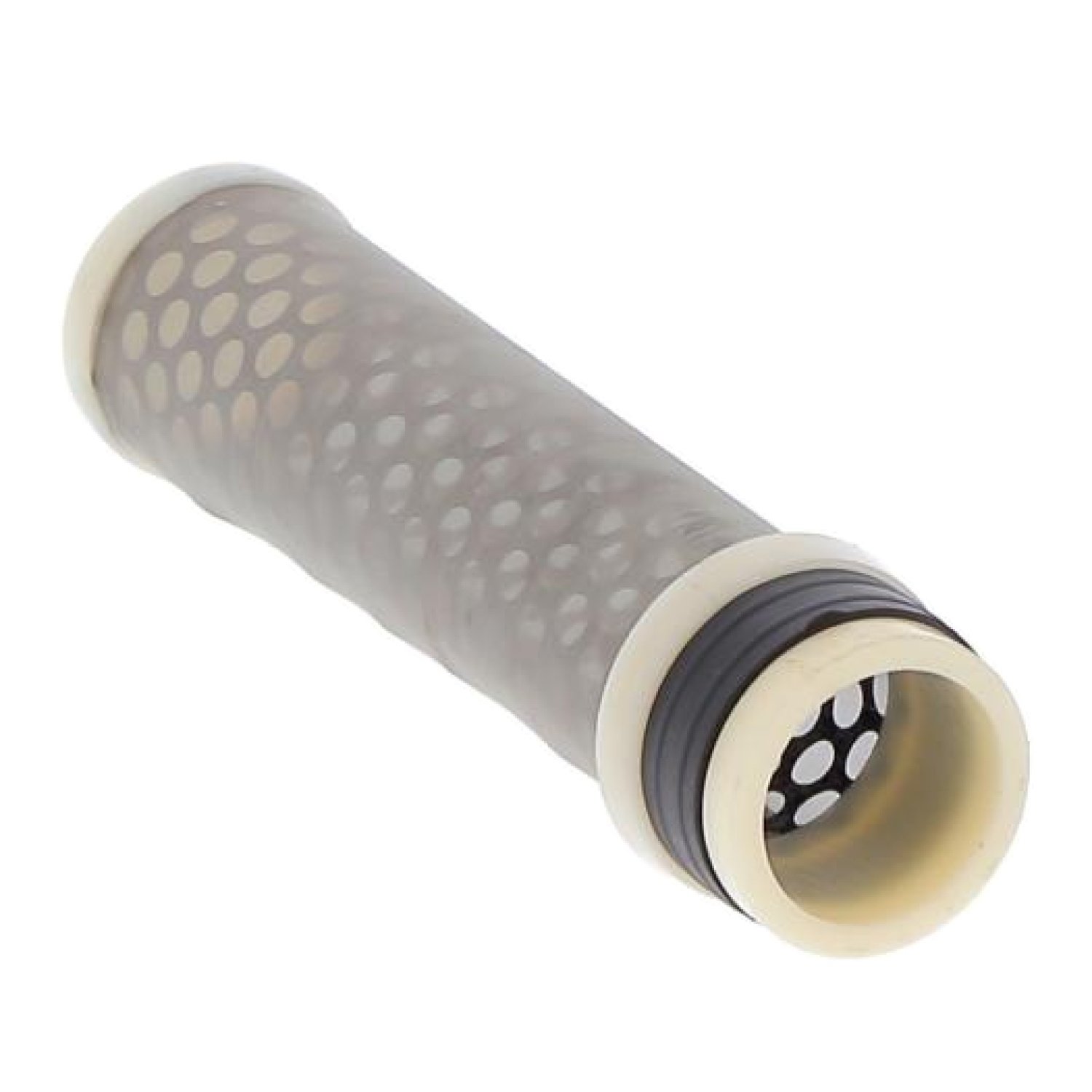

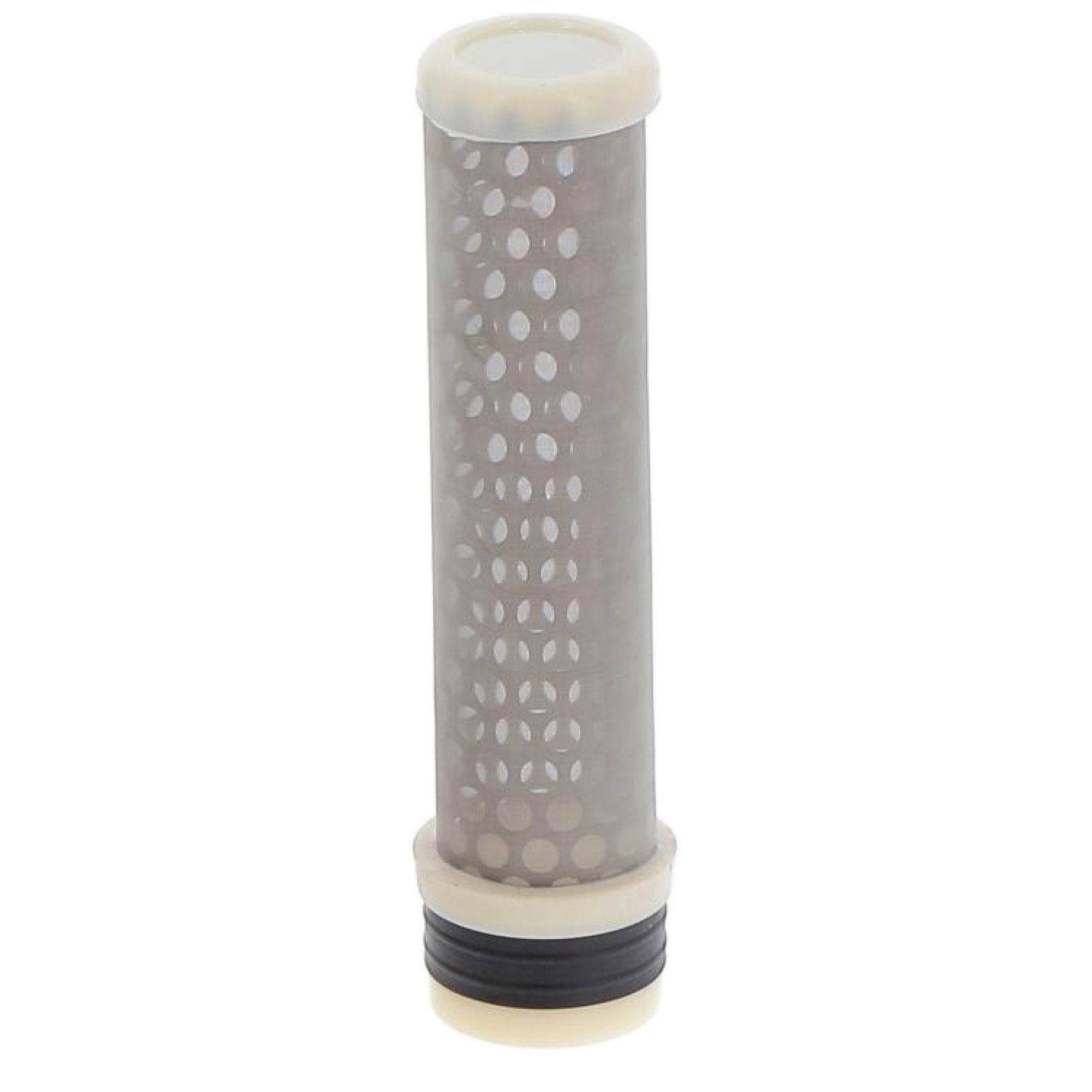

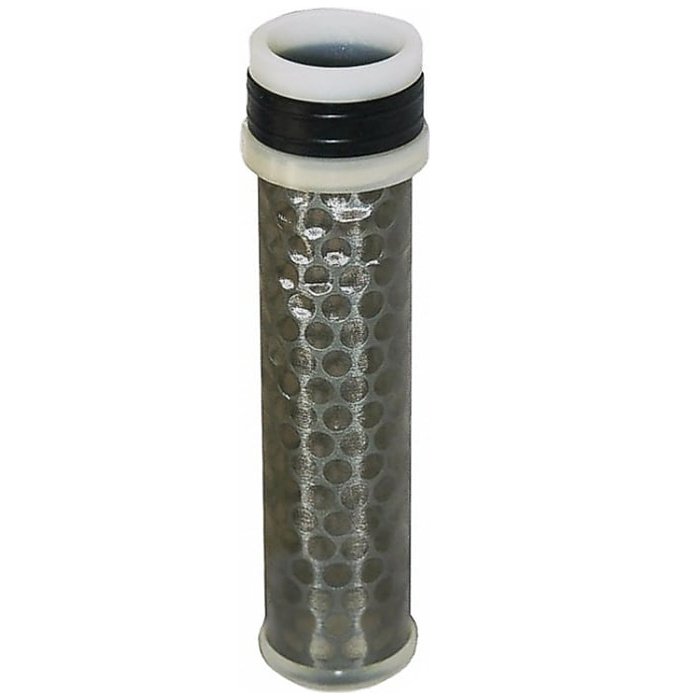

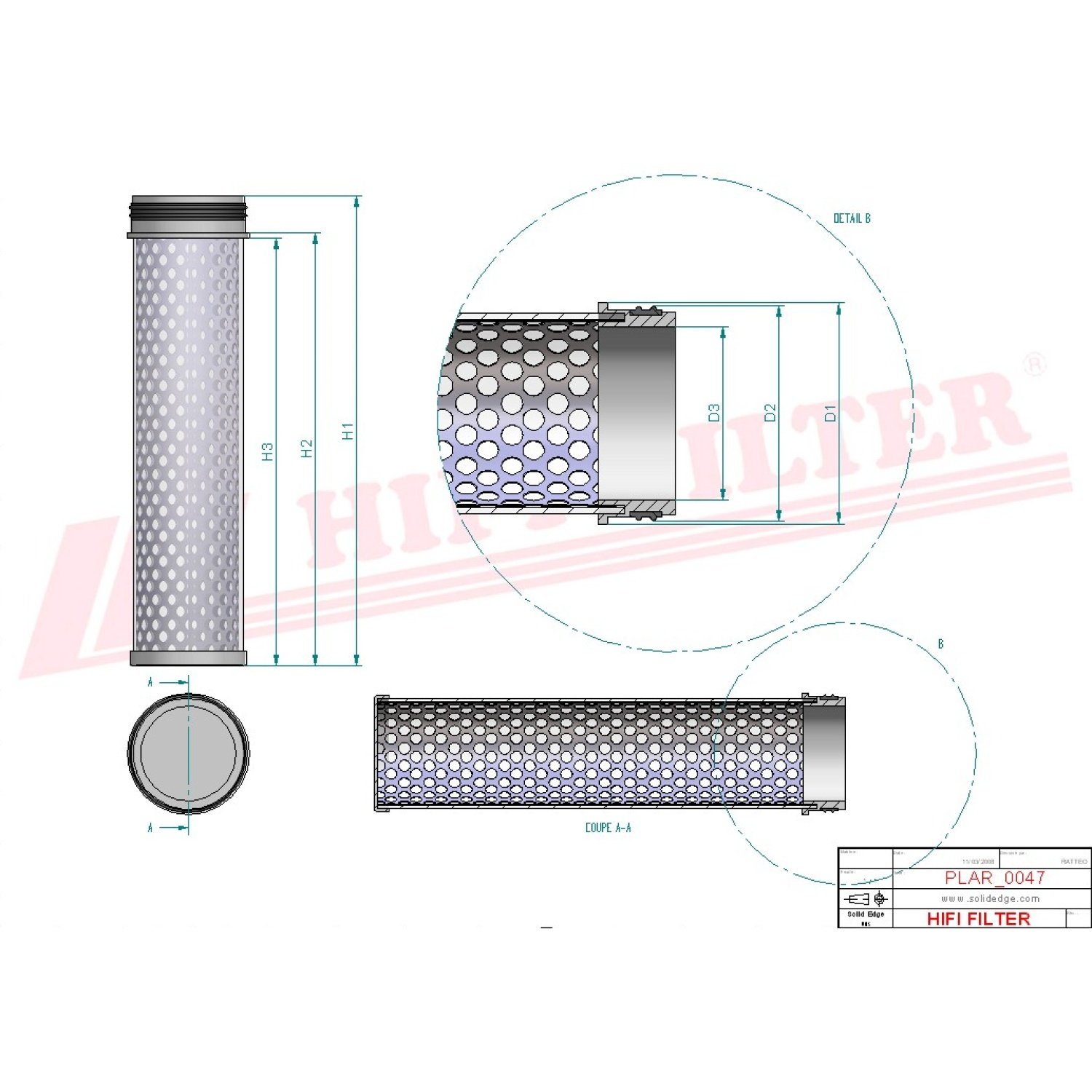

This inner air filter is a non-genuine replacement designed for Kubota compact machinery that uses a two-stage air cleaner. It protects the engine by capturing fine dust and debris that pass the outer (primary) filter, helping to maintain clean intake air and stable performance. The element uses pleated cellulose filter media with a perforated metal core and moulded end caps for a secure seal and dependable strength. Typical applications include Kubota mini excavators such as the U25-3 and U10-3, as well as selected compact tractors and professional mowers. Dimensions: height 164 mm, outer diameter 42 mm, inner diameter 31 mm. Match these measurements with your existing element to confirm compatibility before fitting.
Key Features:
- Inner (safety) element for two-stage air cleaners on Kubota compact machines
- Non-genuine replacement offering reliable filtration and value
- Pleated cellulose media with perforated metal core for strength and dust-holding capacity
- Dry-type element with moulded end caps for an accurate, airtight fit
- Helps protect cylinders, turbochargers, and sensors from fine particulate
- Supports consistent engine power, fuel efficiency, and longevity
- Dimensions: height 164 mm; outer diameter 42 mm; inner diameter 31 mm
- Straightforward replacement during routine servicing; no special tools required
- Suitable for use in dusty worksites, landscaping, and agricultural environments
- Designed to fit housings used across a range of Kubota mini excavators and compact tractors
Typical Applications:
Used as the inner (secondary/safety) air filter in Kubota mini excavators, compact tractors, and professional mowers. Ideal for plant hire fleets, groundworks, utilities, landscaping, and farm work where fine dust control is essential. Replace at service intervals or when the restriction indicator or inspection shows the element is due.
Also known as:
Inner safety element, secondary air filter element, safety cartridge, inner cartridge for air cleaner, secondary engine intake filter for Kubota compact machinery.
Fits Models:
B1700, B1710, B2100, B2400, B2910, B7300, B7400, B7410, B7500, B7510, B7610, B7800, F2560, K008, K008-3, K0083, KH008, KX36, KX36-2, KX36-3, KX362, KX363, KX41, KX41-2, KX41-3, KX412, KX413, U10, U10-3, U103, U20, U20-3, U203, U25-3, U253, K008 3, K008 5, U15, U17, U25S, K0085
Alternate Part Numbers:
32721-5824-2, 32721.5824.0, 32721-5824-0, 32721.5824.2, 32721.58242, 32721-58242, 32721.58240, 3272158240, 3272158242, 314531175, SA 16399, SL 6410, SA16399, MD7540S, WGA1650, MD7540, SL6410, CF5001, PA4633, 1632A
Product Specifications
| L&S Part No. | LA1632 |
|---|---|
| OEM No. | A1109 |
| Unit of Sale | 1 |
| Size | 163mm x 39mm x 39mm |
| Applications | B1700, B1710, B2100, B2400, B2910, B7300, B7400, B7410, B7500, B7510, B7610, B7800, F2560, K008, K008-3, K0083, KH008, KX36, KX36-2, KX36-3, KX362, KX363, KX41, KX41-2, KX41-3, KX412, KX413, U10, U10-3, U103, U20, U20-3, U203, U25-3, U253, K008 3, K008 5, U15, U17, U25S, K0085 |
| Machine Type | Excavators, Tractors |
| Fits Brands | Alco Filters, Greyfriars, Kubota |
| Fits Models | K008 | KX36 | KX36-2 | KX36-3 | KX41 | KX41-2 | KX41-3 | U10 | U10-3 | U20 | U25-3 | K008-3 |
