Description
Overview:

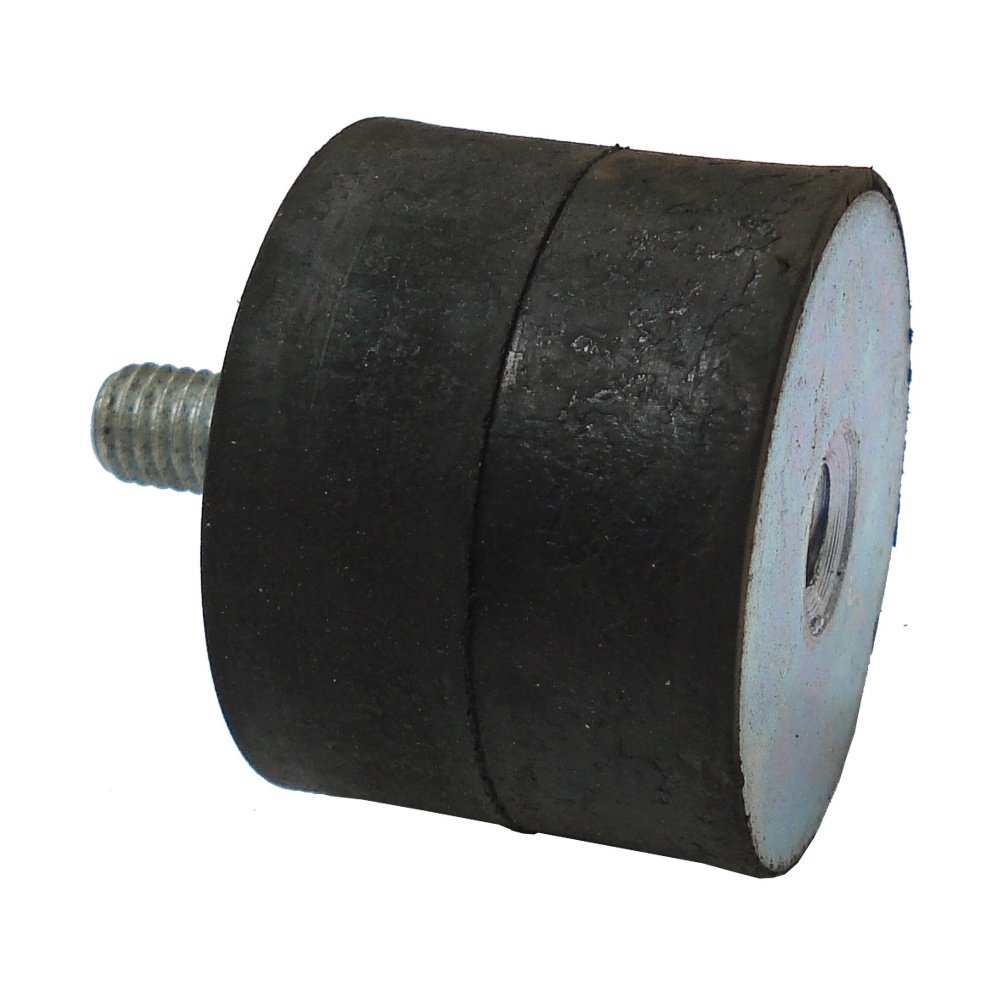

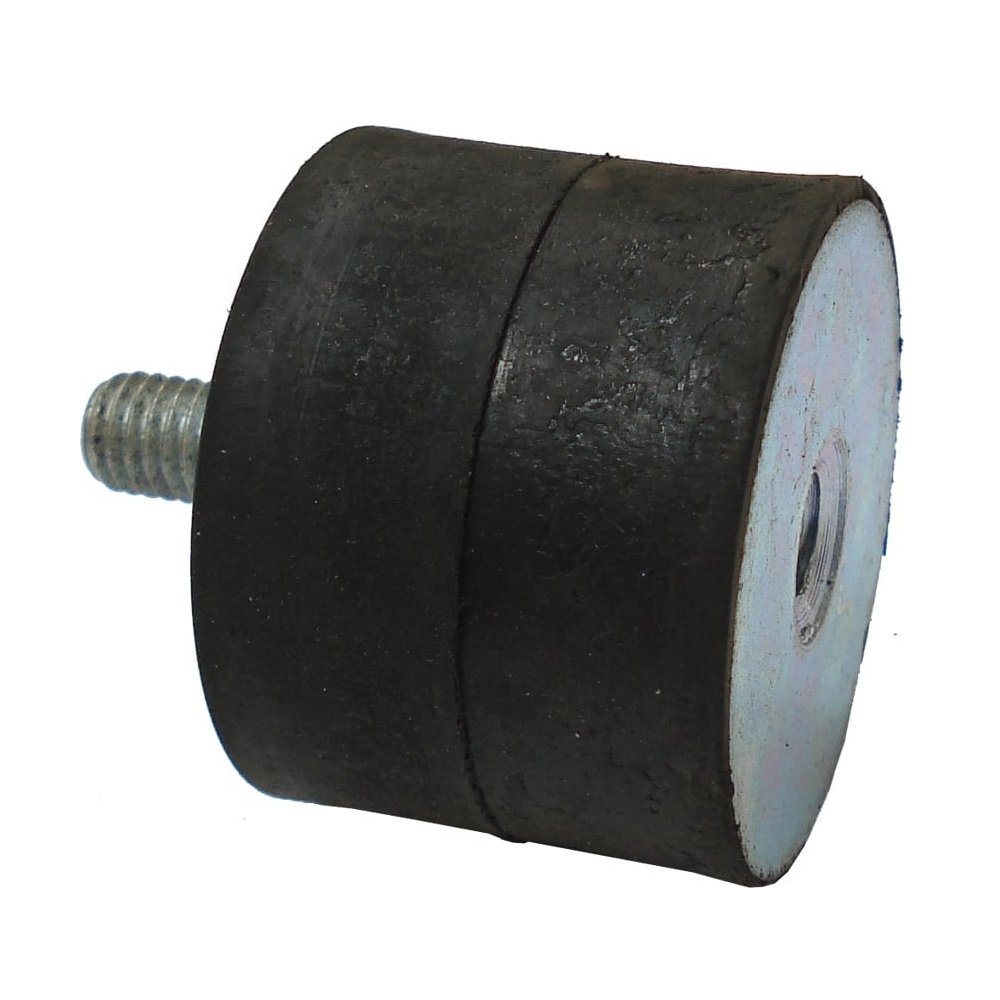

The Anti Vibration Mount for Belle PCX and PCLX compactors is a durable rubber-metal isolator that controls vibration between the plate assembly and the machine frame. Built for demanding site work, it uses a tough elastomer bonded to metal end plates to absorb shock and reduce transmitted vibration. This helps the machine run smoother, protects components, and improves operator comfort. Sized at 40 mm (1.57 inches) diameter with a 30 mm (1.18 inches) plate-to-plate height and an M8 thread, it is dimensioned for a precise fit on specified Belle equipment. It is a Genuine Altrad/Belle part, ensuring the correct stiffness and geometry for reliable performance. Ideal for popular models such as the PCX 16/50 and PCLX 12/40E, it is a straightforward, direct replacement for worn mounts.
Key Features:
- Genuine Altrad/Belle replacement mount for PCX and PCLX plate compactors
- 40 mm diameter (1.57 inches) compact bobbin profile for correct fit
- 30 mm height (1.18 inches) measured plate-to-plate
- M8 thread for straightforward installation with standard hardware
- Rubber-to-metal construction engineered for harsh site conditions
- Reduces vibration transmitted to chassis, handle and engine
- Helps maintain plate stability and improves machine control
- Cuts shock loading to extend the life of frames, fasteners and bearings
- Direct-fit compatibility with listed Belle models for quick maintenance
- Supports consistent compaction results and lowers wear and tear
Typical Applications:
Used on vibrating plate compactors in construction, utilities, and landscaping. Suitable for sub-base preparation, block paving bedding, trench and path reinstatement, driveways, and general groundworks where stable, low-vibration operation protects the machine and aids operator comfort.
Also known as:
Vibration damper, shock absorber, anti-vibration bobbin, isolation mount, rubber buffer, machine mount, AV mount.
Fits Models:
PCX, PCLX, GPX Range, PCEL320X, PCEL400E, PCLX 12/40E, PCLX 16/45E, PCLX 32, PCLX 32S, PCLX 40, PCLX 320, PCLX 320S, PCLX 400, PCX 12/36, PCX 13/40, PCX 13/40E+, PCX 16/45, PCX 16/50, PCX 17/50A, PCX 20/45, PCX 20/50, PCX350, PCX400, PCX450, PCX500, PCX60A, WPX 3/30, WPX330
Alternate Part Numbers:
VM10A
Product Specifications
| L&S Part No. | 21/0157 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Altrad/Belle |
| OEM No. | 21/0157 |
| Unit of Sale | 1 |
| Size | Diameter: 40mm, Height (plate to plate): 30mm, Thread: M8 |
| Applications | 16/50, 1650, 20/50, 2050, 32S & 40, 32S&40, GPX Range, GPXRange, PCEL320X, PCEL400E, PCLX, PCLX 12/40E, PCLX 16/45E, PCLX 32, PCLX 320, PCLX 320S, PCLX 32S, PCLX 40, PCLX 400, PCLX12/40E, PCLX16/45E, PCLX32, PCLX320, PCLX320S, PCLX32S, PCLX40, PCLX400, PCX, PCX 12/36, PCX 13/40, PCX 13/40E+, PCX 16/45, PCX 16/50, PCX 17/50A, PCX 20/45, PCX 20/50, PCX12/36, PCX1236, PCX13/40, PCX13/40E+, PCX1340, PCX16/45, PCX16/50, PCX1645, PCX1650, PCX17/50A, PCX20/45, PCX20/50, PCX2045, PCX2050, PCX350, PCX400, PCX450, PCX500, PCX60A, WPX 3/30, WPX3/30, WPX330 |
| Machine Type | Compactors |
| Fits Brands | Belle |
| Fits Models | PCX12/36, PCX13/40 | PCX350 PCX400 PCX450 PCX500 | PCEL320X | PCEL400E | PCLX 12/40E | PCLX 16/45E | PCX 16/45, 16/50 | PCX 17/50A | PCX 20/45, 20/50 | PCX60A | GPX Range | PCX 13/40E+ | PCLX 32, 32S & 40 | WPX 3/30 |
