Description
Overview:

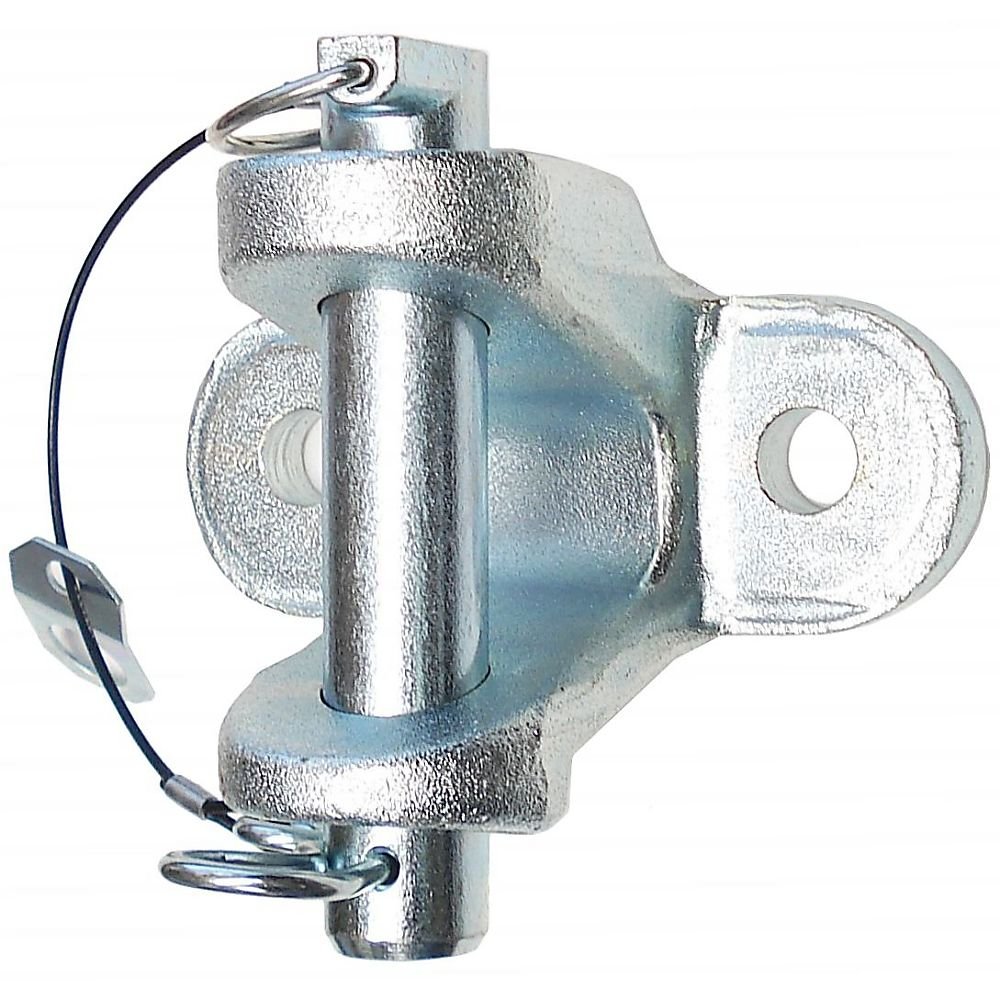

Bradley E40T jaw and pin coupling, also listed as V351L, in cast iron with a corrosion resistant finish. Takes British standard towing eyes in 30, 40 and 50mm. A doublelock mechanism secures the pin, and the anti-jam design keeps overhang to a minimum behind the vehicle. Two-bolt mounting to the towing plate. Meets EU standard 94/20EC and Regulation 55.
Specification:
- D-value: 17.2kN
- S-value (vertical load): 200kg
- Pin diameter: 25mm
- Towing capacity: 3500kg
- Suits towing eyes: 30, 40 and 50mm
- Mounting: 2 bolt
- Material: cast iron
- Standards: EU 94/20EC, UN/ECE Reg 55
- Manufacturer part number: 185080915
Towing Capacity:
Maximum braked trailer weight derived from the D-value:
- Behind a 3,500kg vehicle: 3,510kg
- Behind a 7,500kg vehicle: 2,280kg
These are coupling limits only. The lowest of the coupling limit, the towing vehicle's plated towing limit, the trailer's gross weight and the driver's licence entitlement applies. Centre-axle trailers are rated on Dc and V-value rather than D.
Typical Applications:
Commercial vehicles, tractors and site transport running towing eye trailers and agricultural implements. A replacement pin is available separately as part number 800 194.
Product Specifications
| L&S Part No. | 800 170 |
|---|---|
| Part Type | Genuine Part |
| Key Features | - 3500 kg capacity for 3.5-tonne trailers - 2-bolt fixing for secure installation - High-strength steel with corrosion-resistant finish - Type approved to 94/20 standard - Suitable for drawbar-eye trailer connections |
