Description
Overview:

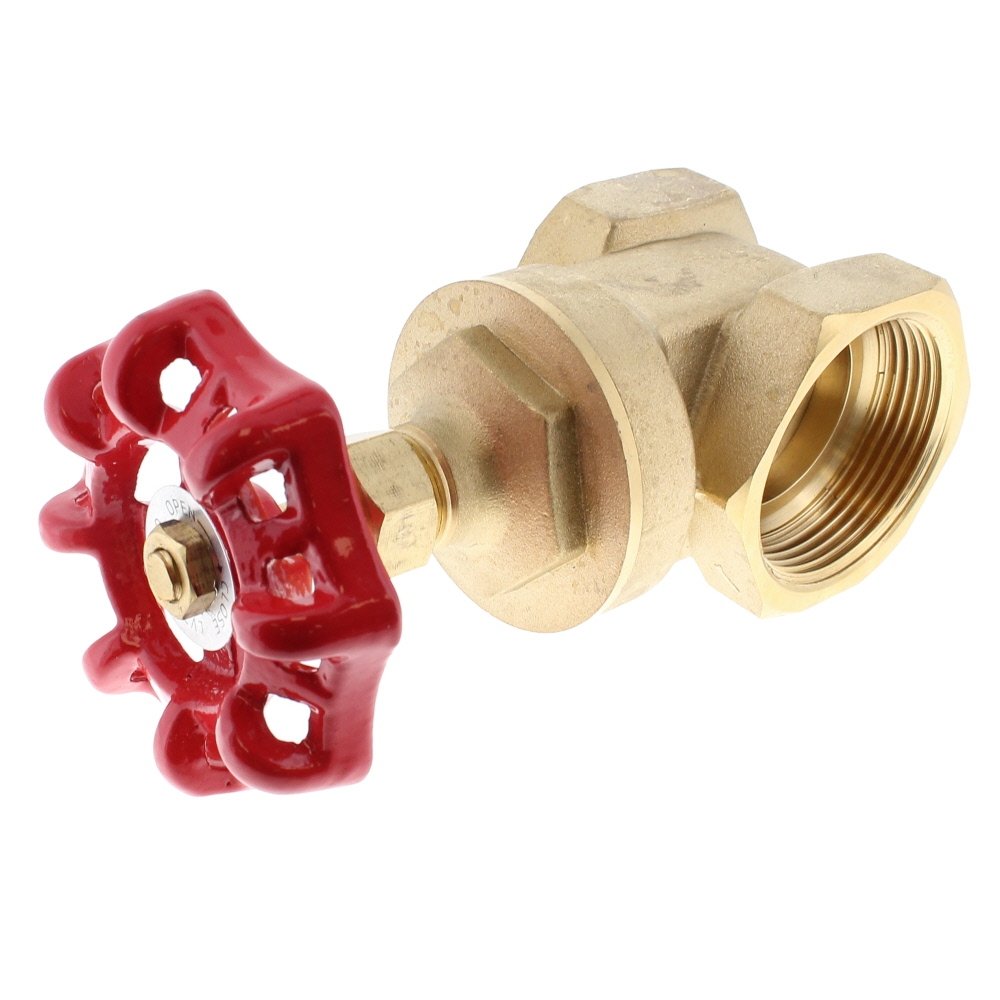

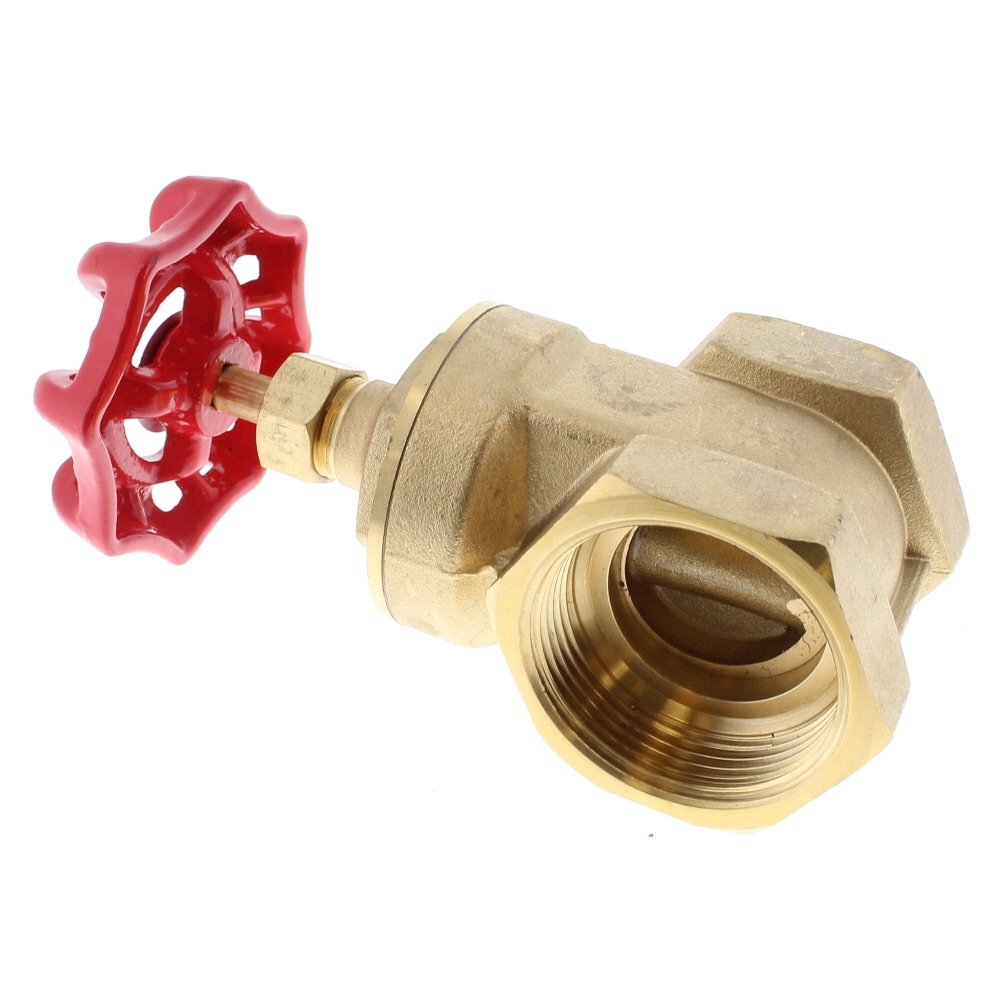

The Brass Wheel Gate Valve 1.1/2" Female/Female BSP is a robust isolation valve for controlling water flow in plumbing and industrial pipework. Made from corrosion‐resistant brass with a cast handwheel, it is built for frequent use and long service life. Each end has a screwed female BSPT connection for secure installation, and the valve conforms to BS 5154 PN20 for dependable performance. Rated from -20°C to +120°C, it suits a wide range of ambient and process conditions. Size: 1.1/2 inch (38.1 mm) F/F BSP. Manufacturer Part Number: 860 112. Suitable for tradespeople, facilities teams, and DIY users working on building services, plant maintenance, irrigation, or site water supplies where reliable flow control and positive isolation are required.
Key Features:
- Durable brass body for corrosion resistance and longevity
- Female/Female BSPT threads for a tight, reliable seal on both ends
- Built to BS 5154 PN20 (20 bar class) for assured strength and performance
- Wide operating temperature range: -20°C to +120°C
- Smooth-action cast handwheel for easy opening and closing
- 1.1/2" size with UK metric equivalent 38.1 mm for straightforward specification
- Simple to install and maintain in standard plumbing layouts
- Provides low resistance when fully open to help maintain system flow
- Suitable for horizontal or vertical line installation (according to good practice)
Typical Applications:
Commonly used for isolating water lines in building services, plant rooms, industrial washdown circuits, irrigation networks, and storage tank connections. Useful on pump suction or discharge lines and branch take-offs to allow maintenance or system sectioning without draining entire runs.
Also known as:
Gate valve F/F, isolation valve, stop tap (gate type), wheel valve, handwheel valve, 1.1/2" BSPT valve (38.1 mm), water isolation gate, brass F/F gate, pipeline isolation valve, shut-off valve.
Product Specifications
| L&S Part No. | 860 112 |
|---|---|
| Unit of Sale | 1 |
| Size | 1.1/2" BSP |
| Key Features | - 1.1/2" Female/Female BSPT threads for secure installation - Made from corrosion-resistant brass for durability - Conforms to BS 5154 PN20 for reliable performance - Operates from -20°C to +120°C - Smooth-action cast handwheel for easy operation |
