Description
Overview:

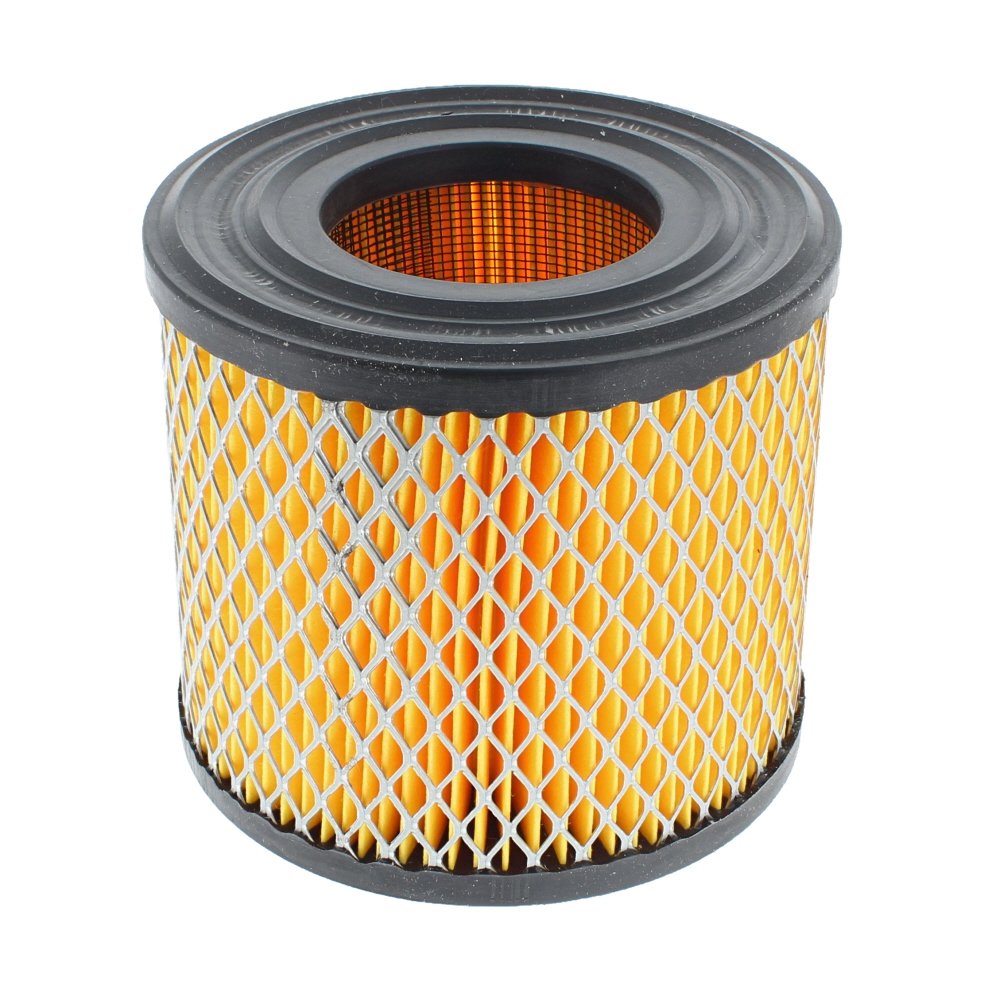

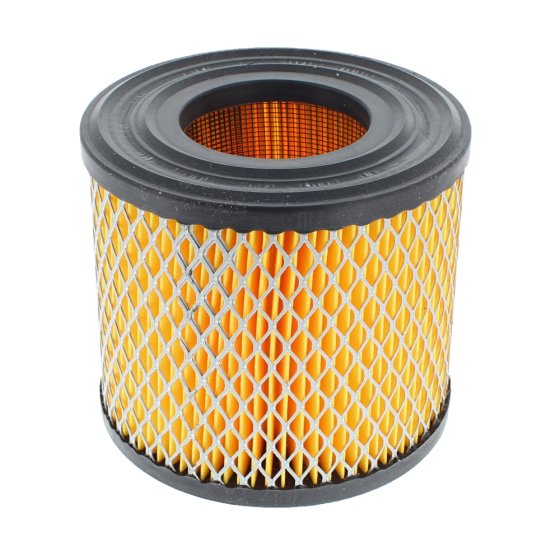

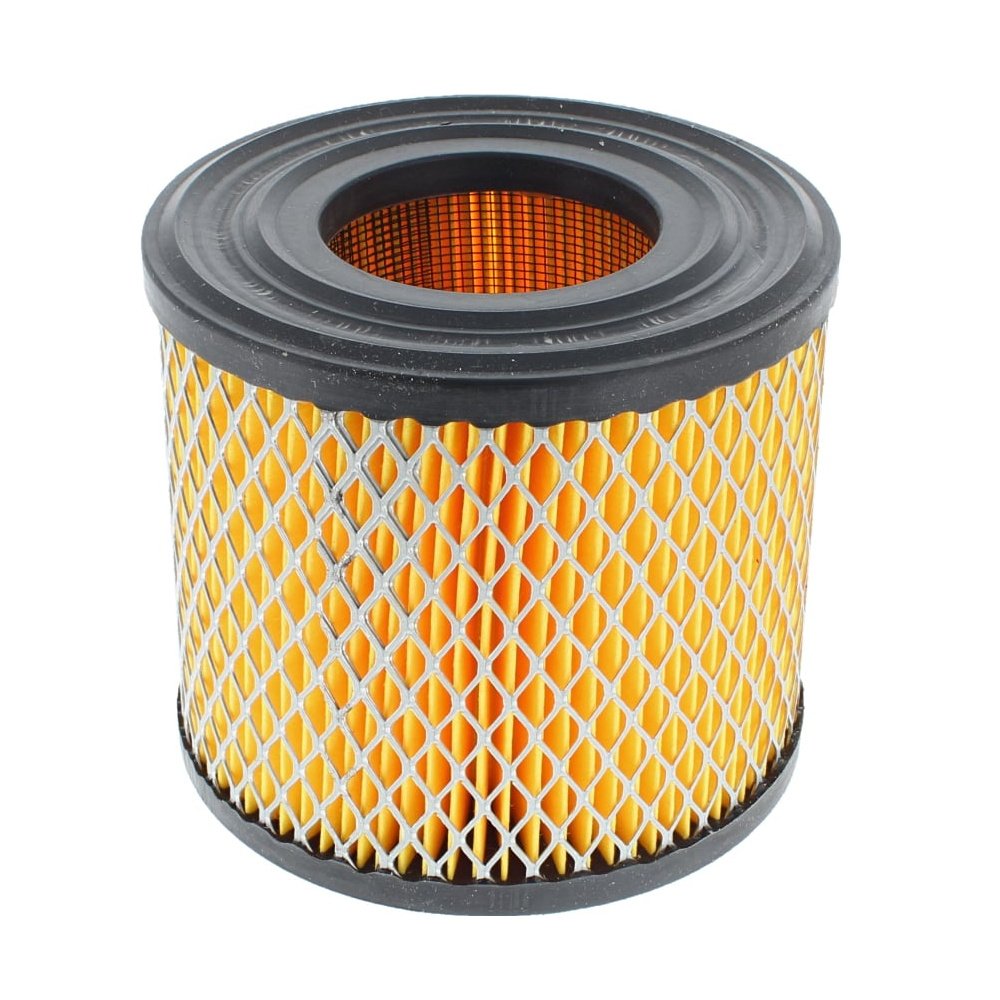

This round air filter is a non-genuine replacement for Briggs & Stratton part 390930, designed for use on Briggs & Stratton 170400 and 171400 series engines found on many garden and construction machines. It uses pleated cellulose paper media for fine dust capture, supported by a perforated steel core with moulded rubber end caps to seal securely in the airbox. The filter helps maintain clean airflow to the carburettor, protecting the cylinder and improving starting, performance, and engine life. Dimensions: outer diameter 108 mm (4.25 in), inner diameter 98 mm (3.86 in), height 51 mm (2.01 in). If your machine specifies B&S 390930 or matches these dimensions, this element offers a reliable, cost-effective service replacement.
Key Features:
- Non-genuine replacement matching the form and function of Briggs & Stratton 390930
- Durable pleated paper media with metal mesh support for strength and consistent filtration
- Moulded rubber end caps for a positive seal and reduced bypass risk
- Balanced filtration and airflow to support performance and fuel efficiency
- Size and form factor suited to housings for 170400/171400 engines: 108 mm OD (4.25 in), 98 mm ID (3.86 in), 51 mm high (2.01 in)
- Simple drop-in fitting; replace during routine servicing with minimal tools
- Helps reduce abrasive wear from dust and debris, extending engine life
- Reliable under typical outdoor conditions with vibration and temperature changes
- Cost-effective maintenance item for regular filter changes
- Check part number and dimensions against your existing filter for compatibility
Typical Applications:
Common on lawn tractors, ride-on and walk-behind mowers, tillers, rotavators, plate compactors, generators, pressure washers, and other equipment powered by Briggs & Stratton 170400 or 171400 engines. Suitable for routine servicing to restore clean intake air and consistent engine performance.
Also known as:
Air cleaner element, primary air filter cartridge, round paper engine air filter, intake filter element for B&S 17xxxx engines, replacement air filter element for medium-frame Briggs & Stratton engines.
Fits Models:
Briggs & Stratton 170400
Briggs & Stratton 171400
Alternate Part Numbers:
WGA1164, M96098, 390930, 335A, A691
Product Specifications
| L&S Part No. | LA335 |
|---|---|
| OEM No. | A691 |
| Unit of Sale | 1 |
| Size | 108mm x 108mm x 98mm |
| Machine Type | Engines |
| Fits Brands | Briggs & Stratton, Greyfriars, John Deere, Woodgate |
| Key Features | - Compatible with Briggs & Stratton 170400/171400 engines - Pleated cellulose paper media for fine dust capture - Moulded rubber end caps ensure secure airbox seal - Dimensions: 108 mm OD, 98 mm ID, 51 mm height - Cost-effective replacement for B&S part 390930 |
