Description
Overview:

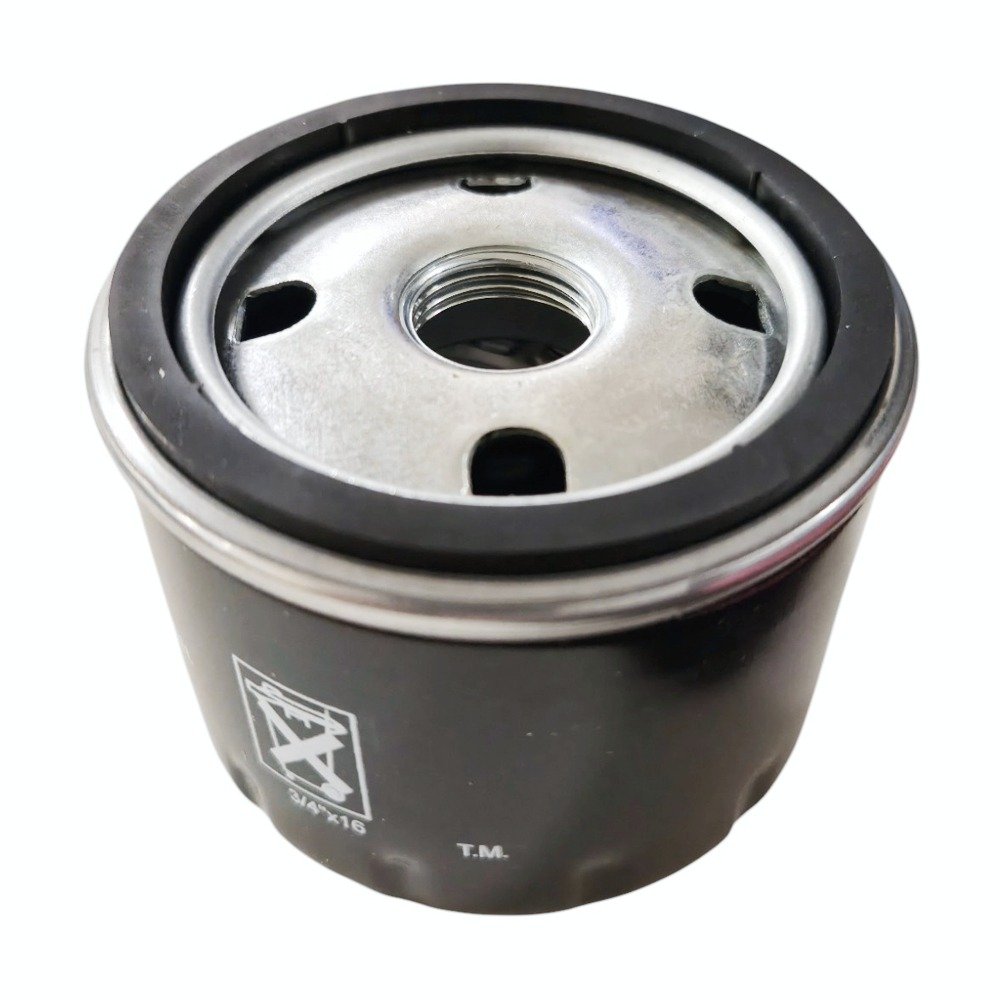

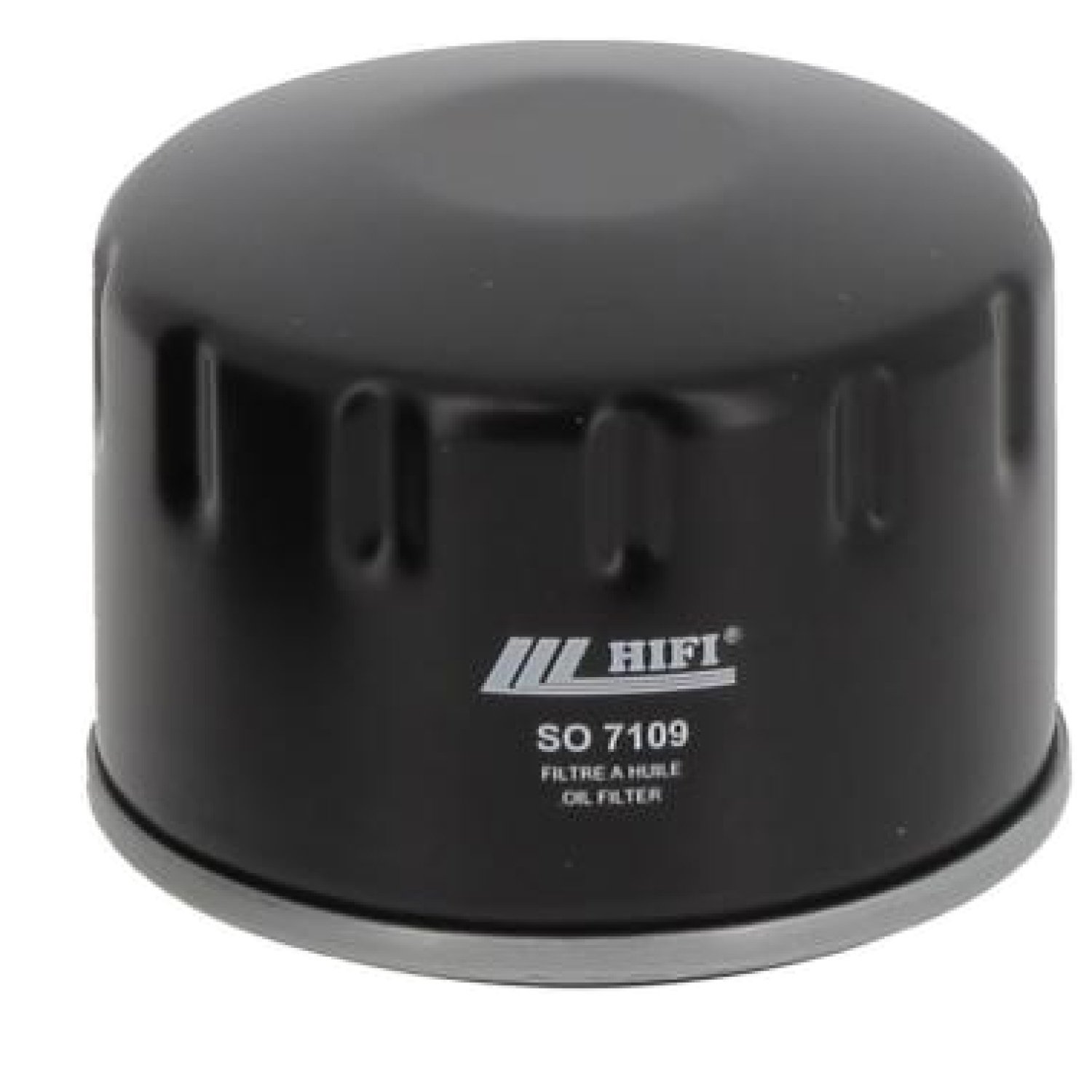

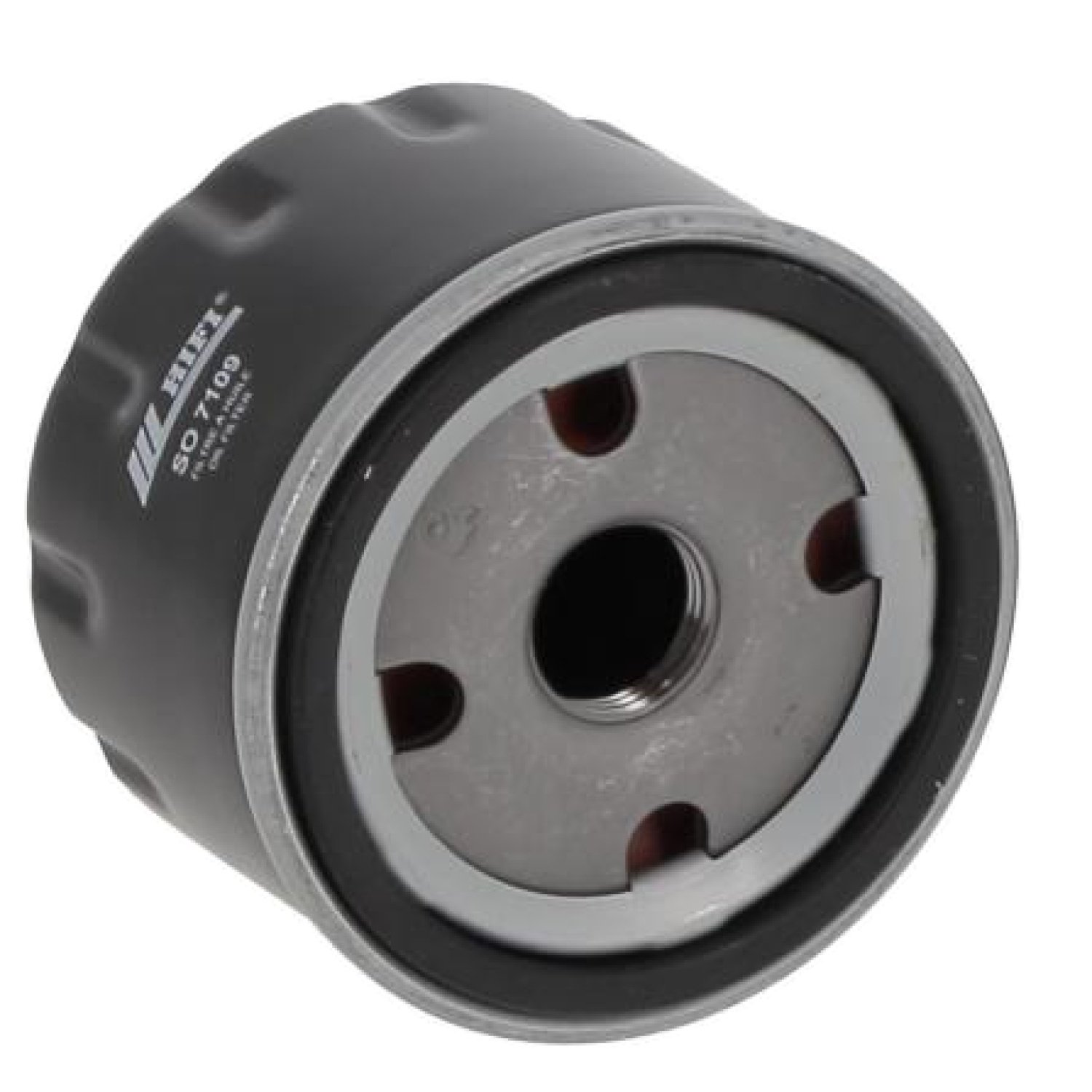

This spin-on oil filter (Manufacturer Part Number S544) is a non-genuine replacement designed to protect small to medium engines in construction and garden machinery. Built with a robust painted steel canister and internal filtration media, it removes harmful particles from engine oil to reduce wear and support stable oil pressure. The unit includes an anti-drain back valve to help prevent dry starts and a bypass valve set at 8 psi (about 0.55 bar) for safe flow if the media becomes restricted. Compact dimensions aid fitting in tight bays: height approximately 59 mm and canister diameter 77 mm. Thread is 3/4-16 UN (about 19.05 mm major diameter, 1.59 mm pitch). Suitable for a wide range of equipment, including Case and Dynapac compactors and rollers.
Key Features:
- Non-genuine replacement to suit S544 specification for cost-effective servicing
- 3/4-16 UN thread (≈19.05 mm major diameter, 1.59 mm pitch) for common engine mounts
- Compact size: height ≈59 mm; canister diameter ≈77 mm for easy access in tight spaces
- Built-in anti-drain back valve to reduce dry starts and protect bearings
- Bypass valve set at 8 psi (≈0.55 bar) to maintain oil flow under high restriction
- Durable painted steel shell for mechanical strength and corrosion resistance
- Quality sealing gasket for a secure, leak-resistant fit
- Straightforward spin-on design for quick changes with basic hand tools
- Helps maintain clean oil, supporting stable oil pressure and engine longevity
- Suitable for petrol and diesel engines across construction, landscaping, and turf machinery
Typical Applications:
Routine servicing of site rollers, trench/plate compactors, generators, compressors, and turf equipment. Common on machines from Case, Dynapac, Husqvarna, Ruggerini, Toro, and Wacker. Ideal where a compact spin-on filter with 3/4-16 UN thread and an 8 psi bypass is specified, helping maintain engine reliability between service intervals in demanding site and grounds-care conditions.
Also known as:
Engine lube filter, screw-on oil filter, canister oil filter, full-flow oil filter element, lube oil cartridge, spin-on canister, engine oil cleaning element.
Fits Models:
Case, Dynapac, Husqvarna, Ruggerini, Toro, Wacker, AVH, AVP 2610, DTV 113, DTV 133, DTV 143, DVK 153, D 150 RM, D 150 RMA, D 150 RMG x4, SXR3000, SXR 3500 H, SX2000, SX3000, BMP 851, BW 100 AC 3, BW 100 AD 3, BW 120 AC 2, BW 120 AD 3, BW 124, BW 125 ADH, BW 135 AD, BW 138 AD, BW 144 AD 2 Variomatic, BW 151 AD 2 Vario, BW 154 AD 2, GS 4394 RT, S 40, S 45, S 60, S 65, Z 45, Z 22 IC, Z 25 J, Z 25 RT, Z 60, Z 34, X 110, X 120, X 125, X 130 K, X 130 R, X 140, X 300 R, X 304, X 305 R, X 310, X 320, X 324, X 350 R, X 360, X 500, X 530, X 534, Z 225, Z 245, Z 425, Z 920R ZTRACK, Z 930R ZTRACK, Z 950R ZTRACK, Z 960R ZTRACK, Z 970R ZTRACK, AVP2610, DTV113, DTV133, DTV143, DVK153, D150RM, D150RMA, D150RMGX4, SXR3500H, BMP851, BW100AC3, BW100AD3, BW120AC2, BW120AD3, BW124, BW125ADH, BW135AD, BW138AD, BW144AD2VARIOMATIC, BW151AD2VARIO, BW154AD2, GS4394RT, S40, S45, S60, S65, Z45, Z22IC, Z25J, Z25RT, Z60, Z34, X110, X120, X125, X130K, X130R, X140, X300R, X304, X305R, X310, X320, X324, X350R, X360, X500, X530, X534, Z225, Z245, Z425, Z920RZTRACK, Z930RZTRACK, Z950RZTRACK, Z960RZTRACK, Z970RZTRACK, CASE, DYNAPAC, HUSQVARNA, RUGGERINI, TORO, WACKER
Alternate Part Numbers:
107-2175-107-00, 107.2175.107.00, 28.69539.0110, 78.23545.0111, 78.23545.0114, 7701.348.108, 7700.542.526, 7700.348.108, 107217510700, 7700-542-526, 7701-348-108, 7700-348-108, 60.00053.02, 60-00053-02, 28695390110, 78235450111, 78235450114, 78235450115, 7700348108, 5411656885, 7700542526, 7701033837, 7700629215, 7701348108, 49065.0721
Product Specifications
| L&S Part No. | LO944 |
|---|---|
| OEM No. | S544 |
| Unit of Sale | 1 |
| Size | 76mm x 76mm x 60mm x 3/4-16 UNF Thread |
| Applications | Case, Dynapac, Husqvarna, Ruggerini, Toro, Wacker, AVH, AVP 2610, DTV 113, DTV 133, DTV 143, DVK 153, D 150 RM, D 150 RMA, D 150 RMG x4, SXR3000, SXR 3500 H, SX2000, SX3000, BMP 851, BW 100 AC 3, BW 100 AD 3, BW 120 AC 2, BW 120 AD 3, BW 124, BW 125 ADH, BW 135 AD, BW 138 AD, BW 144 AD 2 Variomatic, BW 151 AD 2 Vario, BW 154 AD 2, GS 4394 RT, S 40, S 45, S 60, S 65, Z 45, Z 22 IC, Z 25 J, Z 25 RT, Z 60, Z 34, X 110, X 120, X 125, X 130 K, X 130 R, X 140, X 300 R, X 304, X 305 R, X 310, X 320, X 324, X 350 R, X 360, X 500, X 530, X 534, Z 225, Z 245, Z 425, Z 920R ZTRACK, Z 930R ZTRACK, Z 950R ZTRACK, Z 960R ZTRACK, Z 970R ZTRACK, AVP2610, DTV113, DTV133, DTV143, DVK153, D150RM, D150RMA, D150RMGX4, SXR3500H, BMP851, BW100AC3, BW100AD3, BW120AC2, BW120AD3, BW124, BW125ADH, BW135AD, BW138AD, BW144AD2VARIOMATIC, BW151AD2VARIO, BW154AD2, GS4394RT, S40, S45, S60, S65, Z45, Z22IC, Z25J, Z25RT, Z60, Z34, X110, X120, X125, X130K, X130R, X140, X300R, X304, X305R, X310, X320, X324, X350R, X360, X500, X530, X534, Z225, Z245, Z425, Z920RZTRACK, Z930RZTRACK, Z950RZTRACK, Z960RZTRACK, Z970RZTRACK, CASE, DYNAPAC, HUSQVARNA, RUGGERINI, TORO, WACKER |
| Machine Type | Excavators, Compactors, Tractors |
| Fits Brands | AC Delco, Ammann, Ausa, Baldwin, Barford, Bomag, Briggs & Stratton, Coopers, Crosland, Dynapac, Farymann, Fiaam, Ford, Genie, Greyfriars, Hatz, Hengst, Iveco, John Deere, Kohler, Lister Petter, Lombardini, Mahle, Motorcraft, Renault, Ruggerini, Sabo, Schaeff, Tecumseh, U.F.I, Unipart, Volvo, Wacker Neuson |
