Description
Overview:

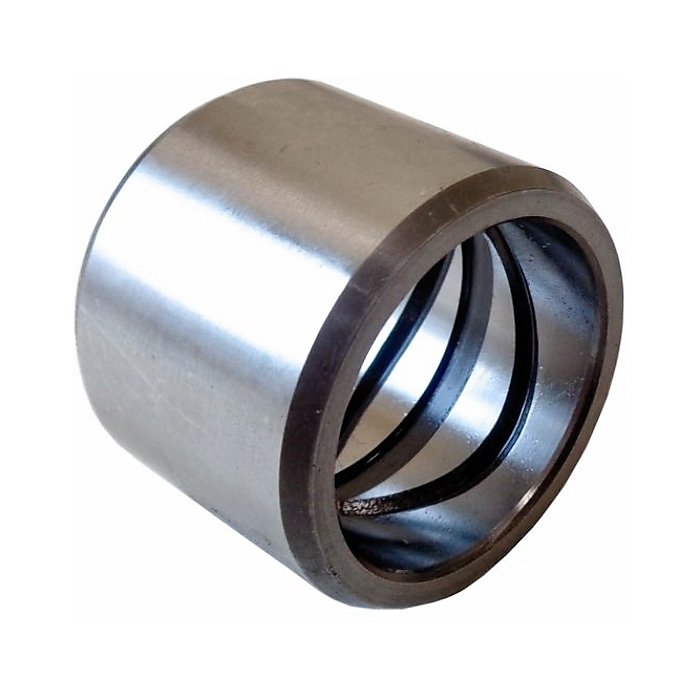

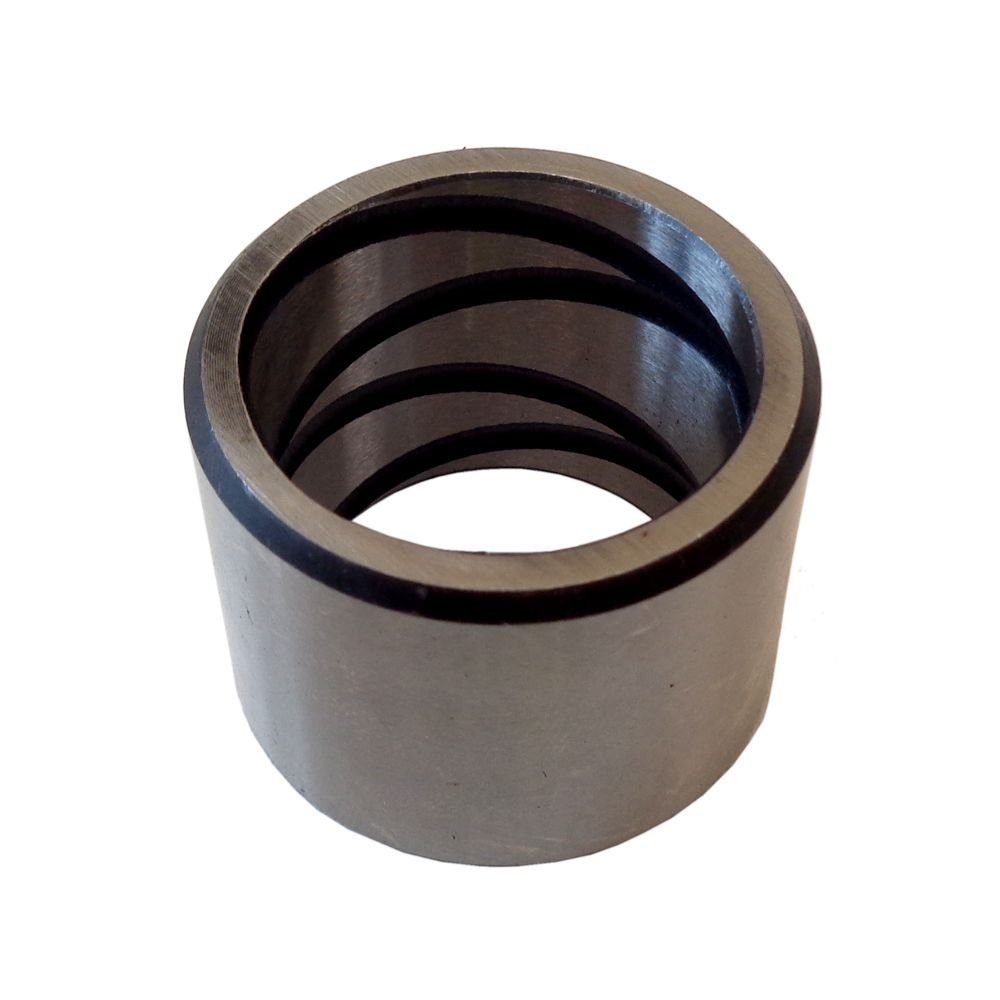

Steel replacement bush for JCB mini excavators, engineered to restore smooth movement in pin joints and linkages. Made from durable steel, it replaces OEM No. 809/10038 and is suitable for routine maintenance or repairs where the original bushing is worn. The bush helps maintain correct alignment, reduce play, and minimise wear between pins and housings. Dimensions are Length 30 mm, Outer Diameter 38.8 mm, Inner Diameter 30.8 mm. Designed for a precise press-fit in correctly sized housings, it supports reliable operation in demanding site conditions. Ideal for a wide range of compact JCB machines including models such as the 8014 and 8018, it offers a straightforward, cost-effective way to keep critical pivot points working as intended.
Key Features:
- Durable machined steel construction for long service life in harsh conditions.
- Direct replacement for OEM No. 809/10038 for straightforward identification.
- Dimensions: Length 30 mm, OD 38.8 mm, ID 30.8 mm for accurate fitment.
- Helps restore smooth articulation and reduce play in pivot joints.
- Supports consistent performance by maintaining correct pin-to-bush clearances.
- Simple press-in installation with appropriate tools to minimise downtime.
- Suitable for multiple JCB mini excavator platforms for easy fleet maintenance.
- Resistant to impact and abrasion commonly found in earthmoving applications.
- Stable performance when correctly lubricated and maintained.
Typical Applications:
Used in pivot points and linkages on JCB mini excavators, such as boom, dipper, bucket, and ancillary attachment joints. Suitable for routine preventative maintenance or as a like-for-like replacement where the original bush has worn oval, increased pin play is noted, or joint movement has become rough. Helps improve machine feel, component alignment, and reduce knock or vibration in everyday digging, grading, and utility work.
Also known as:
Sleeve bush, plain bush, plain bearing, bearing sleeve, pivot bush, line bushing, excavator sleeve, steel bushing, pin bush.
Fits Models:
8008, 8008 CTS, 801, 801.4, 801.5, 801.5 Pro Dig, 801.6, 801.6N, 8010 CTS, 8014, 8014 CTS, 8015, 8016, 8016 CTS, 8016 Super, 8016N, 8017, 8018, 8018 CTS, 8018 CTSAG, 8018 CTSDL, 8018 Super, 802, 8020, 8020 CTS, MICRO, MICRO PLUS, MICRO PLUS-TIER 2, MINI CX 2WD, MINI CX 4WD
Alternate Part Numbers:
809 10038, 809-10038, 80910038
Product Specifications
| L&S Part No. | 809/10038 |
|---|---|
| Unit of Sale | 1 |
| Size | 30mm x O/D 38.8mm x I/D 30.8mm |
| Applications | 8008, 8008 CTS, 8008CTS, 801, 801.4, 801.5, 801.5 Pro Dig, 801.5ProDig, 801.6, 801.6N, 8010 CTS, 8010CTS, 8014, 8014 CTS, 8014CTS, 8015, 8016, 8016 CTS, 8016 Super, 8016CTS, 8016N, 8016Super, 8017, 8018, 8018 CTS, 8018 CTSAG, 8018 CTSDL, 8018 Super, 8018CTS, 8018CTSAG, 8018CTSDL, 8018Super, 802, 8020, 8020 CTS, 8020CTS, MICRO, MICRO PLUS, MICRO PLUS-TIER 2, MICROPLUS, MICROPLUS-TIER2, MINI CX 2WD, MINI CX 4WD, MINICX2WD, MINICX4WD |
| Machine Type | Excavators |
| Fits Brands | JCB |
| Fits Models | 801 | 801.4 | 801.5 | 801.6 | 802 | 8008 | 8014 | 8015 | 8016 | 8018 | 8010 CTS | 8014 CTS | 8016 CTS | 8018 Super | 8020 | 8020 CTS | 8016 Super | 8018 CTSAG | 8018 CTSDL |
