Description
Overview:

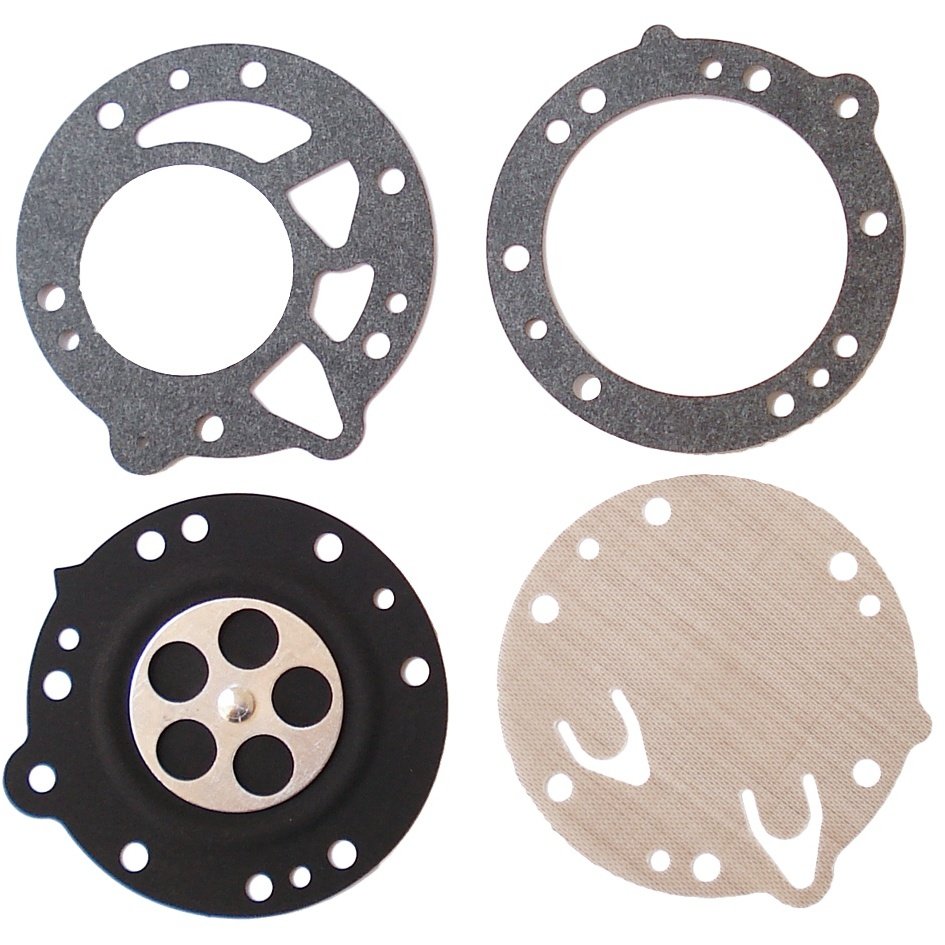

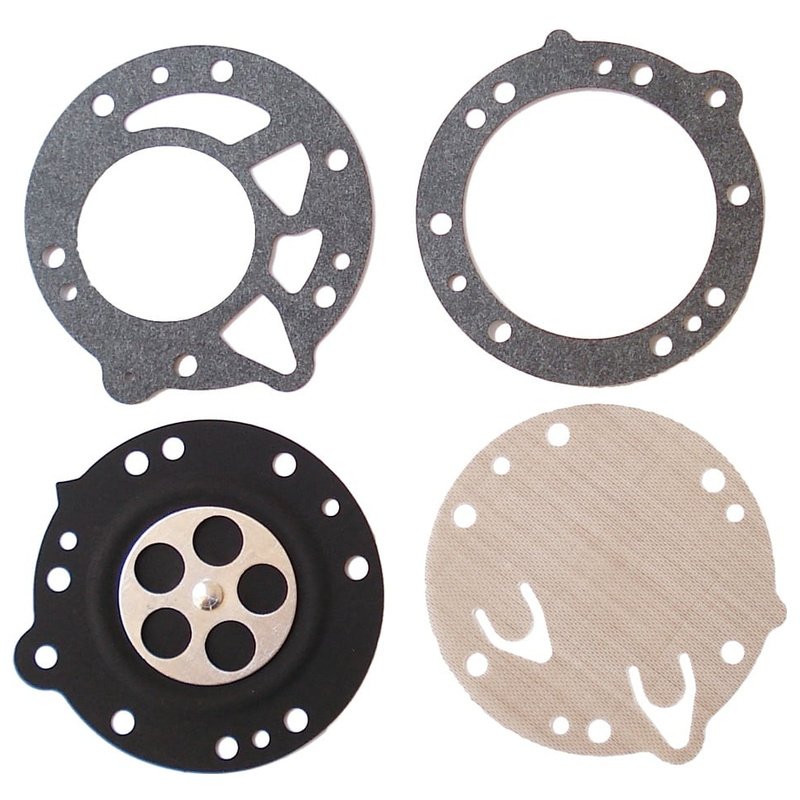

This Carb Diaphragm Kit is a genuine Stihl spare for restoring the carburettor on Stihl TS350 and TS360 disc cutters. Manufactured by Walbro to Stihl OEM specification (OEM No. 4201-007-1060), it replaces the metering and pump diaphragms and related gaskets that control fuel delivery. The components are made from fuel‐resistant elastomer and fibre gasket materials to withstand petrol and the heat and vibration typical of cut‐off saw use. By renewing these wear parts, the kit helps maintain steady fuel flow, reliable starting, clean idling, and consistent cutting power under load. It is also listed as compatible with Tillotson DG-5-HL, covering carburettors commonly fitted to these compact, handheld disc cutters used in construction, groundworks, and landscaping.
Key Features:
- Genuine Part: authentic Stihl specification, manufactured by Walbro for correct fit and performance
- Restores fuel metering: renews pump and metering diaphragms to stabilise fuel delivery and running
- Designed for TS350/TS360: suits carburettors used on these Stihl disc cutters for a straightforward repair
- Compatible reference: Tillotson DG-5-HL cross-compatibility noted for identification
- Durable materials: fuel‐resistant diaphragms and fibre gaskets handle heat, vibration, and regular use
- Helps cure common issues: hard starting, poor idle, hesitation, and inconsistent power caused by aged diaphragms
- Cost-effective maintenance: refreshes a serviceable carburettor without full replacement
- Practical to fit: can be installed with basic hand tools as part of routine servicing
- Supports reliability: keeps machines ready for daily site work and hire fleet turnaround
- OEM-matched dimensions: ensures proper sealing and linkage function when assembled
Typical Applications:
Planned servicing or repair of Stihl cut‐off saws used for cutting concrete, stone, masonry, metal or paving. Suitable for owner maintenance, workshop repairs, and hire fleet overhauls where age, fuel quality, or storage has stiffened diaphragms and affected carburettor performance.
Also known as:
Carburettor diaphragm kit, carb rebuild kit, metering and pump diaphragm set, gasket and diaphragm kit, carb service kit, carburettor repair set, HL-series diaphragm kit.
Fits Models:
TS 350, TS 360, TS350, TS360
Alternate Part Numbers:
4201 007 1060, 4201-007-1060, 42010071060
Product Specifications
| L&S Part No. | 1060 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Walbro |
| OEM No. | 4201-007-1060 |
| Unit of Sale | 1 |
| Applications | TS 350, TS 360, TS350, TS360 |
| Machine Type | Disc Cutters |
| Fits Brands | Stihl |
| Fits Models | TS350, TS360 |
