Description
Overview:

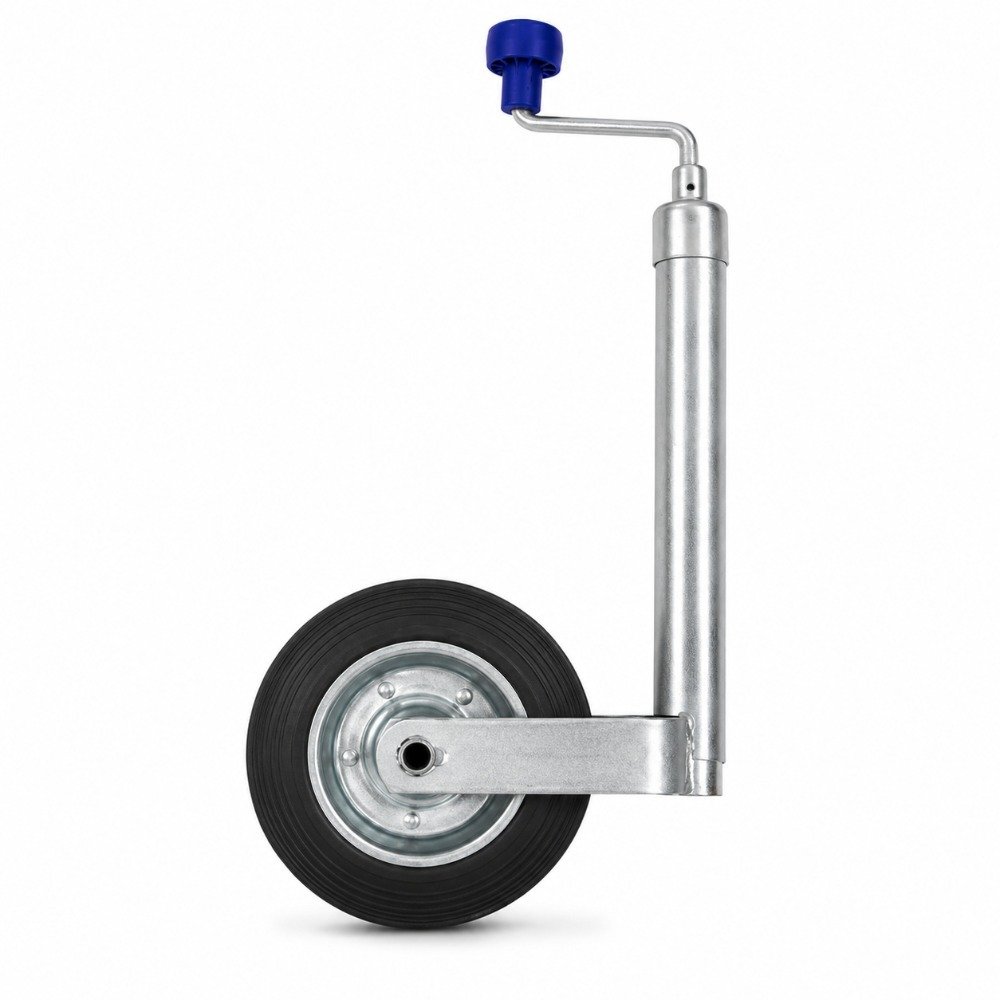

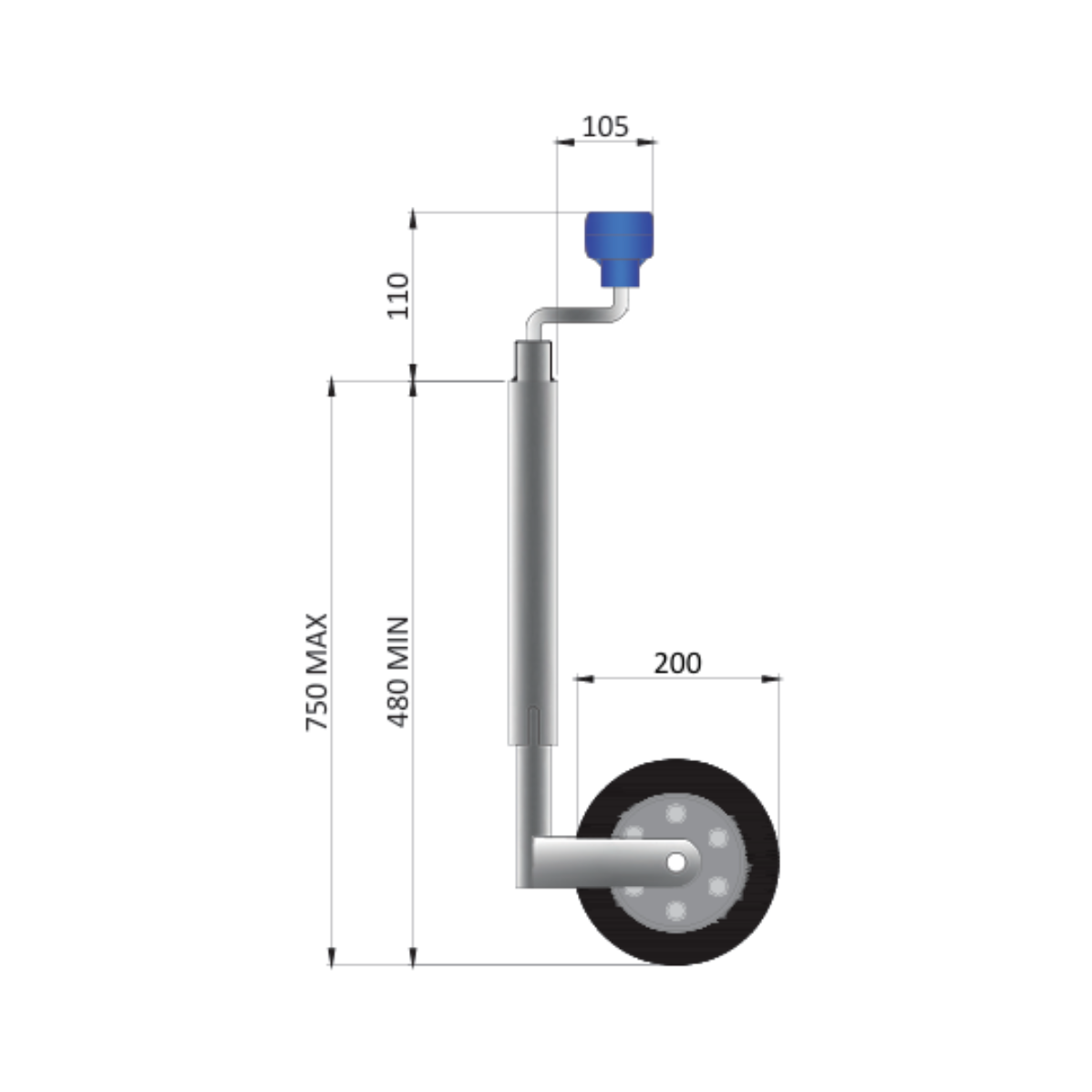

The 42mm Telescopic Jockey Wheel, 100kg - Maypole (MPN TR227) is a standard-duty telescopic nose wheel assembly for general trailer support and manoeuvring. It features a 42mm diameter tube and a telescopic design to raise and lower the drawbar for coupling, uncoupling and levelling. Rated to 100kg, it is suited to light and medium-duty towing applications where a moderate nose load is required. The unit provides height adjustment to take weight off the coupling when stationary and to aid hand manoeuvring on firm ground. A replacement wheel is available separately under Maypole reference MP228, a 200mm steel wheel for jockey wheels. This product data is based on the supplier specification for Maypole MP227: 42mm tube, standard duty, telescopic, 100kg.
Key Features:
- Tube diameter: 42mm
- Telescopic jockey wheel assembly for height adjustment
- Standard/medium duty classification
- Load rating: 100kg
- Replacement wheel available: Maypole MP228 (200mm steel wheel)
- Brand: Maypole
Typical Applications:
Used on light to medium-duty single-axle and small tandem-axle trailers where a 100kg load rating is appropriate, including general purpose, utility, small equipment and towing setups in trade and domestic use. Suits installations requiring a 42mm tube jockey wheel. Replacement wheel support is provided via Maypole MP228 for ongoing maintenance.
Also known as:
Jockey wheel; trailer jockey wheel; nose wheel; trailer jack; drawbar jack; landing leg; Maypole part number MP227
Product Specifications
| L&S Part No. | TR227 |
|---|---|
| Key Features | - 42mm diameter tube for standard trailer support - Telescopic design for height adjustment - Rated for 100kg load capacity - Suitable for light to medium-duty towing - Compatible with Maypole MP228 replacement wheel |
