Description
Overview:

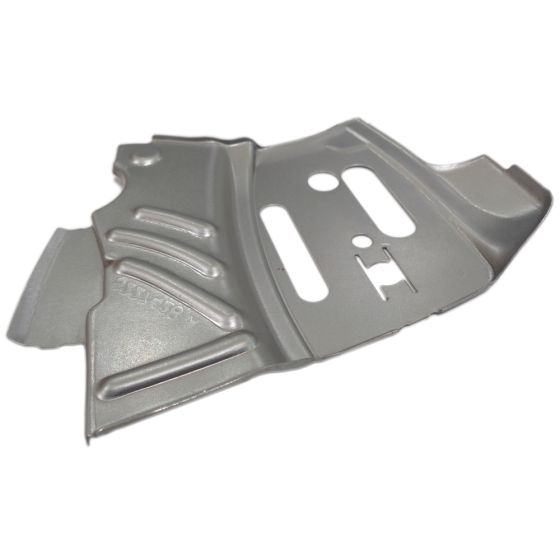

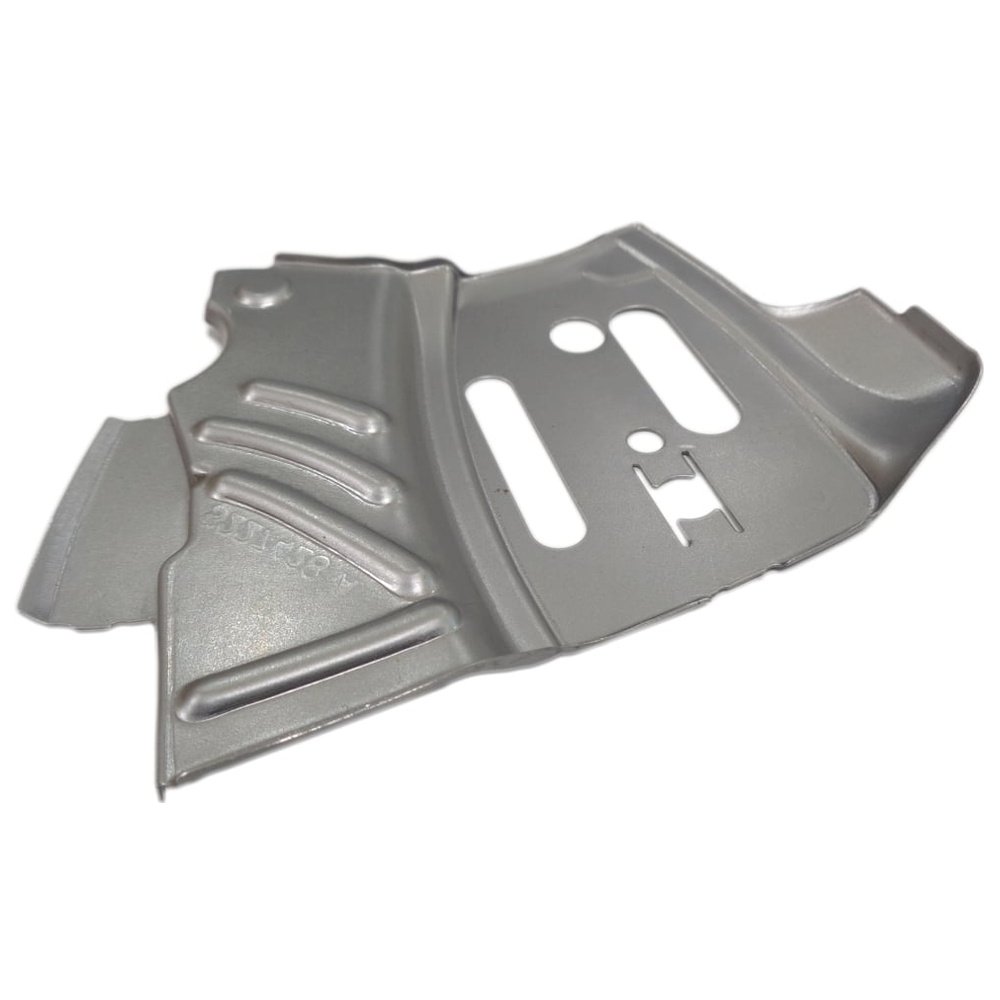

This Chain Guide Plate is a hard‐wearing steel plate that supports correct chain tracking on Husqvarna petrol chainsaws. Fitted between the guide bar and the clutch cover, it keeps the chain aligned as it passes the drive sprocket, helps prevent side wear on the bar rails, and shields the crankcase area from chain contact. As a Genuine Husqvarna part, it matches the original specification for a precise fit and reliable performance on the 550XP and 545 platforms. Supplied under part numbers 522 74 28-01 and 522742801, it is an ideal replacement when the existing plate is bent, grooved or missing after service. Use it to restore smooth running and extend the service life of your bar, chain and related components.
Key Features:
- Genuine Husqvarna OEM component for correct fit and function
- Stamped steel construction for durability and resistance to abrasion
- Maintains accurate chain alignment at the drive sprocket
- Helps reduce wear on guide bar and chain during regular use
- Protects crankcase and clutch cover from chain rub marks
- Direct replacement for MPN 522 74 28-01 / 522742801
- Compatible with Husqvarna 545, 550XP and 550XPG chainsaws
- Fits using existing hardware; no modifications required
- Stable geometry keeps chain tracking true under load
- Suitable for professional and domestic maintenance schedules
- Designed to cope with frequent bar changes and workshop handling
Typical Applications:
Used during routine servicing or repair to replace a bent, worn or missing guide plate. Helps prevent chain snagging and misalignment in forestry, arboriculture, landscaping and estate maintenance. Suitable after chain derailments, bar replacements, sprocket changes or whenever chain tracking becomes inconsistent.
Also known as:
Chain guide, bar plate, bar spacer plate, sprocket cover plate, chain alignment plate, chain deflector plate, side plate (chainsaw), bar support plate.
Fits Models:
545, 550XP, 550XPG
Alternate Part Numbers:
522 74 28-01, 522742801
Product Specifications
| L&S Part No. | 522 74 28 01 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Husqvarna |
| OEM No. | 522742801 |
| Unit of Sale | 1 |
| Applications | 545, 550XP, 550XPG |
| Fits Brands | Husqvarna |
| Fits Models | 545 | 550XP, 550XPG |
