Description
Overview:

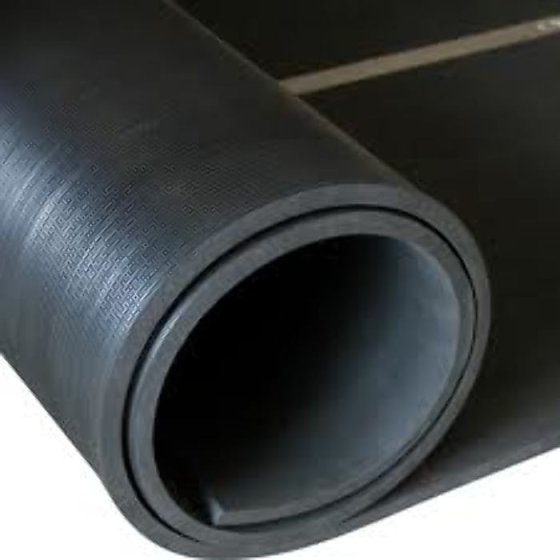

Class 1 Electrical Safety Switchboard Matting is a protective floor mat for use in front of live electrical panels and equipment. Made from durable black EPDM rubber, it is 4 mm thick and 1 m wide, supplied per metre so you can order exactly what you need. The fine ribbed top surface gives secure footing, while a cloth impression on the reverse helps the mat sit flat and stable. It meets IEC 61111:2009 Class 1 and is marked with standard details at 1,000 mm intervals for inspection traceability. Rated for a maximum safety working voltage of 7,500 volts and tested to withstand a puncture proof test of 5 kV for 3 minutes, it offers a reliable non-conductive barrier. Halogen‐free and compliant with REACH, RoHS, PAH, and CE requirements.
Key Features:
- IEC 61111:2009 Class 1 electrical insulating matting rated to 7,500 volts working voltage
- 4 mm thickness for electrical insulation and comfortable standing
- 1 m wide, supplied per metre for straightforward planning and minimal waste
- Robust EPDM rubber with excellent resistance to acids and alkalis
- Fine ribbed, anti-slip top for grip in busy switchboard areas
- Cloth impression backing helps prevent creep and curling on smooth floors
- Electrically tested: puncture proof test 5 kV for 3 minutes
- Halogen-free; compliant with REACH, RoHS, PAH, and CE standards
- Permanent markings at 1,000 mm intervals for easy identification and audits
- Easy to install: roll out and trim to length with a sharp knife
- Low maintenance and simple to clean; suitable for dry indoor environments
Typical Applications:
Position in front of open switchboards, MCCs, control panels, transformer rooms, test benches, and substations to reduce electric shock risk. Common in factories, production plants, utilities, maintenance workshops, plant rooms, and generator rooms where personnel stand to operate or service electrical equipment.
Also known as:
Electrical insulating matting, switchboard safety mat, high voltage rubber matting, dielectric floor matting, electrical safety floor runner, insulation barrier mat, HV insulating floor mat, electrical protection mat for panels.
Product Specifications
| L&S Part No. | 866 105 |
|---|---|
| Unit of Sale | Per meter |
