Description
Overview:

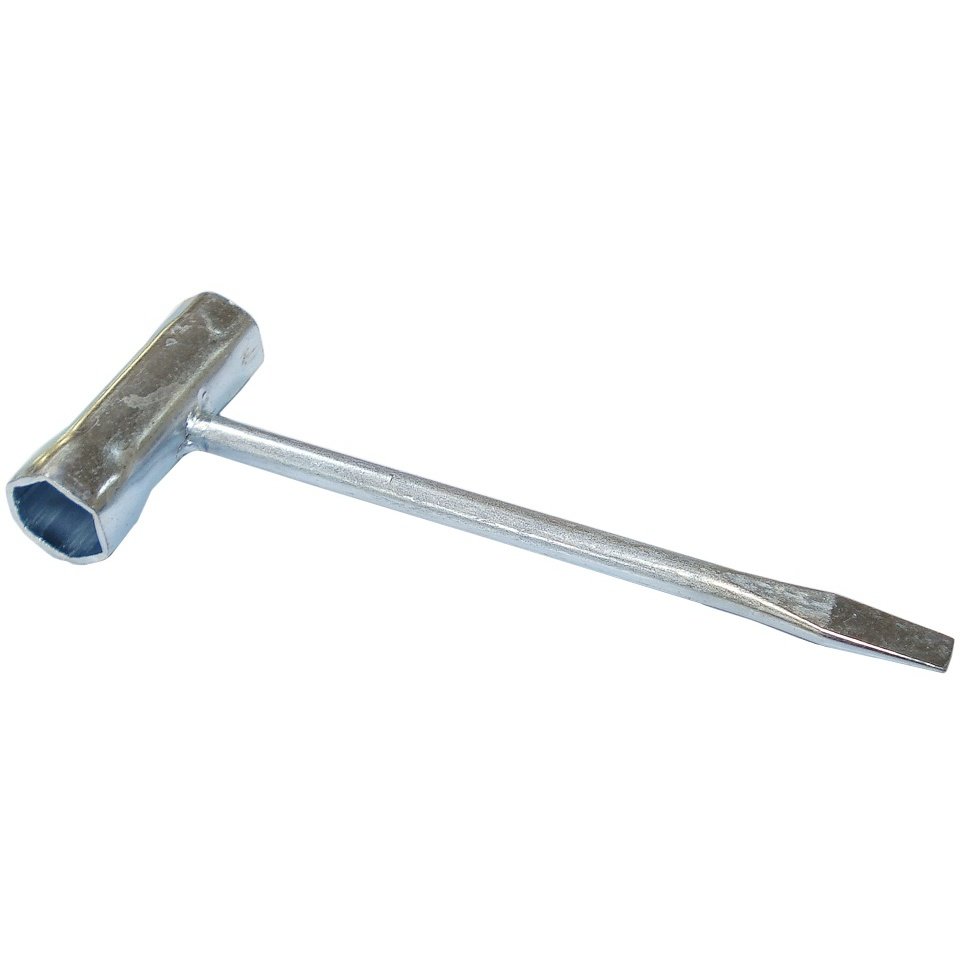

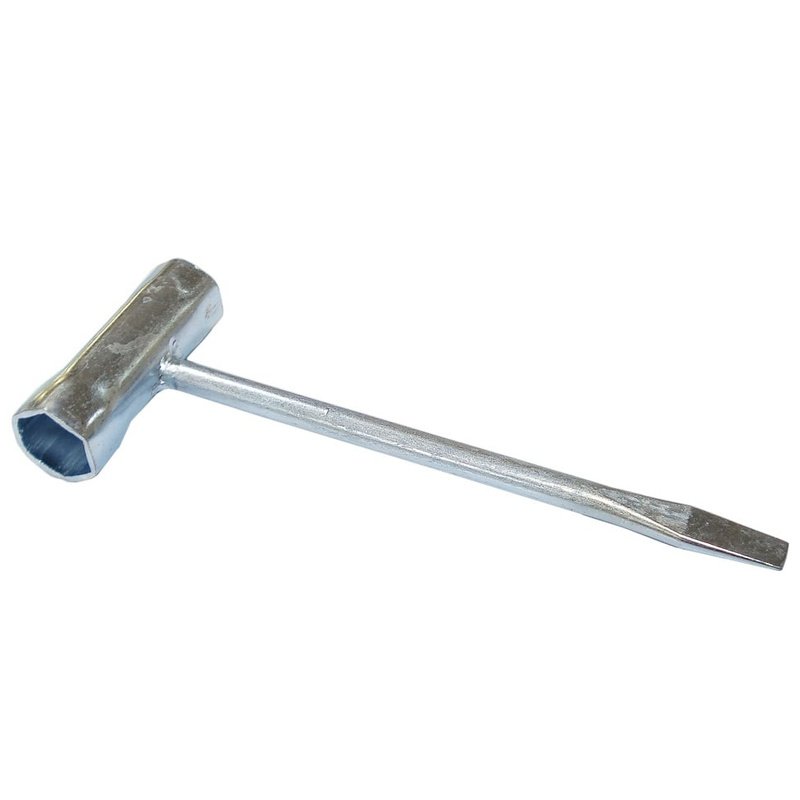

The 13/19mm Combination Plug/Bolt Spanner is a compact, dual-ended service tool for outdoor power equipment and small construction machinery. Made from robust steel with a durable finish, it is designed for changing spark plugs and tightening or loosening bar and blade bolts. One end provides a 19mm plug socket, the other a 13mm socket for common bar nuts and fixings, with an integrated flat screwdriver for chain tensioning and opening filler caps. Total length is 180mm (7.1 inches), with a 160mm (6.3 inches) spanner reach from under the handle and a 70mm (2.8 inches) handle width for leverage in tight spaces. This Non Genuine Part replaces OEM 1111 890 3400 and suits many chainsaws and cut-off saws, including MS 170 and MS 180.
Key Features:
- Dual 13mm and 19mm sockets cover common bar nuts and spark plug sizes
- Integrated flat screwdriver tip for chain tensioning and removing fuel/oil filler caps
- Compact size: 180mm (7.1 inches) overall, 160mm (6.3 inches) spanner reach, 70mm (2.8 inches) handle width
- Strong steel construction for dependable, repeat use on site or in the workshop
- Non Genuine Part that replaces OEM 1111 890 3400 for a cost-effective alternative
- Slim tubular design reaches confined engine bays and under guards with ease
- Suitable for routine maintenance on chainsaws, brushcutters, trimmers, and cut-off saws
- Easy to stow in a tool roll or service pouch, with simple, no-fuss operation
Typical Applications:
Changing spark plugs, tightening and loosening bar nuts, adjusting chain tension, and opening filler caps. Handy for general M13/M19 fasteners on handheld outdoor power equipment and compact plant, including chainsaws, trimmers, brushcutters, and cut-off saws used by landscapers, arborists, grounds teams, and DIY users.
Also known as:
Scrench, box spanner, plug socket wrench, combination wrench, T‐bar plug spanner, dual-ended spanner, maintenance wrench, plug tool.
Fits Models:
028, 028 AV, 028AV, 029, 030, 031, 039, 08 S, 085, 08S, EK 6100, EK6100, MS 170, MS 170 C, MS 171, MS 171 C, MS 180, MS 180 C, MS 181, MS 181 C, MS 192 C, MS 192 T, MS 192 TC, MS 200, MS 200 T, MS 210, MS 210 C, MS 211, MS 211 C, MS 230, MS 230 C, MS 240, MS 250, MS 250 C, MS 260, MS 260 C, MS 270, MS 270 C, MS 280, MS 280 C, MS 290, MS 310, MS 340, MS 360, MS 360 C, MS 361, MS 361 C, MS 380, MS 390, MS 440, MS 460, MS 640, MS170, MS170C, MS171, MS171C, MS180, MS180C, MS181, MS181C, MS192C, MS192T, MS192TC, MS200, MS200T, MS210, MS210C, MS211, MS211C, MS230, MS230C, MS240, MS250, MS250C, MS260, MS260C, MS270, MS270C, MS280, MS280C, MS290, MS310, MS340, MS360, MS360C, MS361, MS361C, MS380, MS390, MS440, MS460, MS640
Alternate Part Numbers:
1111 890 3400, 11118903400, M5200
Product Specifications
| L&S Part No. | 902 1361 |
|---|---|
| Part Type | Non Genuine Part |
| OEM No. | 1111 890 3400 |
| Unit of Sale | 1 |
| Size | 13mm x 19mm |
| Applications | 028, 028 AV, 028AV, 029, 030, 031, 039, 08 S, 085, 08S, EK 6100, EK6100, MS 170, MS 170 C, MS 171, MS 171 C, MS 180, MS 180 C, MS 181, MS 181 C, MS 192 C, MS 192 T, MS 192 TC, MS 200, MS 200 T, MS 210, MS 210 C, MS 211, MS 211 C, MS 230, MS 230 C, MS 240, MS 250, MS 250 C, MS 260, MS 260 C, MS 270, MS 270 C, MS 280, MS 280 C, MS 290, MS 310, MS 340, MS 360, MS 360 C, MS 361, MS 361 C, MS 380, MS 390, MS 440, MS 460, MS 640, MS170, MS170C, MS171, MS171C, MS180, MS180C, MS181, MS181C, MS192C, MS192T, MS192TC, MS200, MS200T, MS210, MS210C, MS211, MS211C, MS230, MS230C, MS240, MS250, MS250C, MS260, MS260C, MS270, MS270C, MS280, MS280C, MS290, MS310, MS340, MS360, MS360C, MS361, MS361C, MS380, MS390, MS440, MS460, MS640 |
| Machine Type | Chainsaws |
| Fits Brands | Stihl |
| Fits Models | MS170, MS170C | MS180, MS180C | MS230, MS230C | MS250, MS250C | MS200, MS200T | MS260, MS260C | MS290, MS310, MS390 | 030, 031 | 029, 039 | MS270, MS270C, MS280, MS280C | 028, 028AV | MS361, MS361C | MS440 | MS192C, MS192T, MS192TC | MS460 | 08S | MS240 | MS340 | MS360, MS360C | MS380 | MS640 | MS171, MS171C | MS181, MS181C | MS211, MS211C | EK6100 |
