Description
Overview:

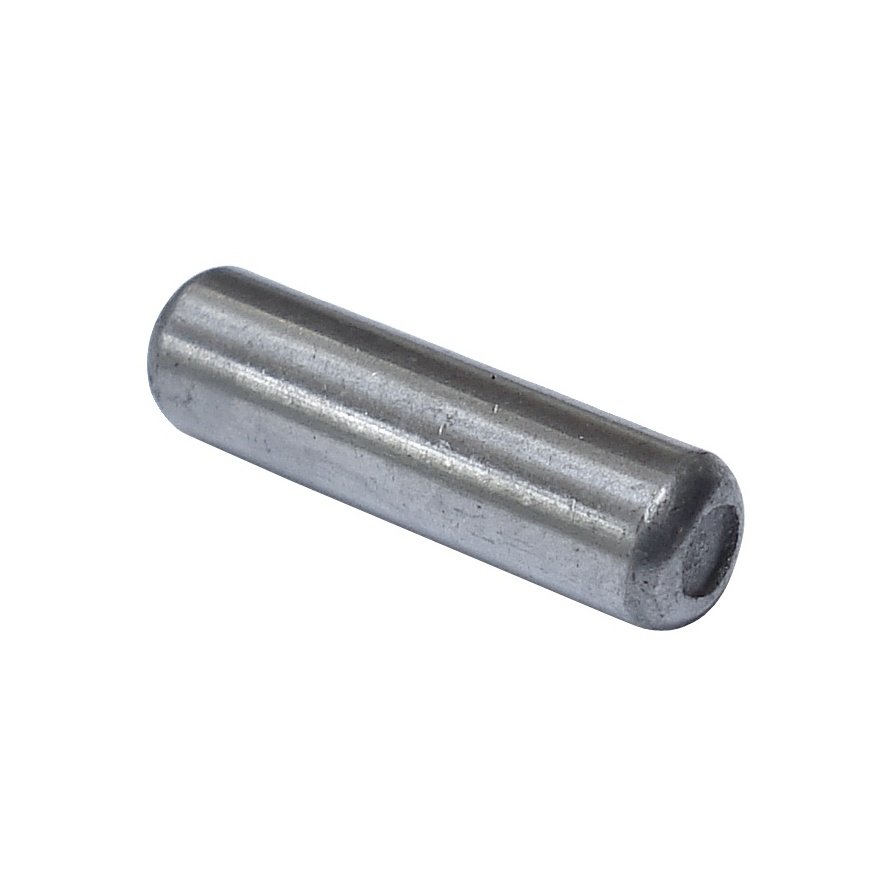

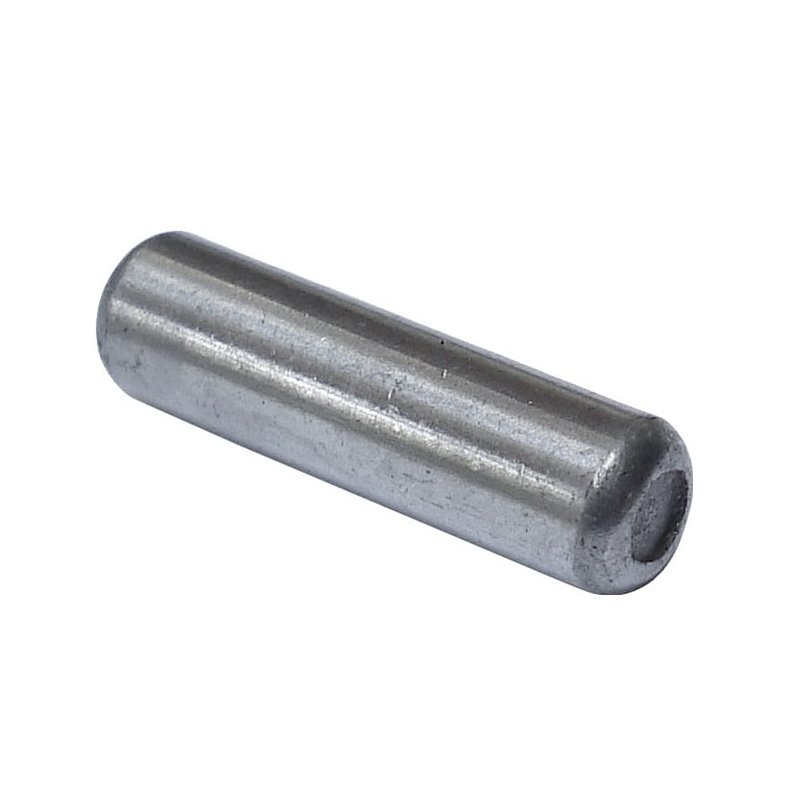

This crankcase dowel pin is a genuine Stihl OEM locating pin designed to align and secure the crankcase halves during assembly. Made from durable machined metal, it ensures precise positioning for correct bearing and seal alignment, supporting smooth engine operation. The cylindrical pin measures 6 x 20 mm (0.24 x 0.79 in) and matches original Stihl specifications. Suitable for a wide range of Stihl petrol-powered tools, including cut-off saws and chainsaws, it is commonly used on models such as the TS350 and TS360. Genuine Stihl Part MPN 9371 470 3120 provides a reliable, repeatable fit that helps maintain structural integrity, reduce vibration, and extend service life across routine repairs, rebuilds, and preventative maintenance.
Key Features:
- Genuine Stihl OEM part (MPN 9371 470 3120) for assured fit and compatibility
- Cylindrical 6 x 20 mm (0.24 x 0.79 in) size to match original specification
- Precisely locates crankcase halves to maintain bearing and seal alignment
- Machined metal construction for a stable, long-lasting interference fit
- Helps reduce vibration and premature wear by keeping casings true
- Simple press-fit installation into existing crankcase bores
- Suitable across many classic Stihl saws, cutters, brushcutters, and augers
Typical Applications:
Used during engine assembly, crankcase replacement, gasket and seal changes, or full overhauls to ensure correct crankcase alignment. Ideal for restoring factory tolerances after split-case servicing on Stihl cut-off saws, chainsaws, brushcutters, augers, and similar equipment to preserve smooth running and longevity.
Also known as:
Locating dowel, register dowel, guide pin, positioning pin, crankcase locating pin, engine dowel, alignment dowel, locating pin for crankcase.
Fits Models:
030, 031, 032, 041, 041AV, 041FB, 041G, 042 AV, 042AV, 045, 048, 050, 051, 056, 075, 076, 08S, 090, 090G, BG17, BT 360, BT360, FS20, FS360C, FS410, FS410AV, FS410C, P835, P840, SG17, SG17L, TS08, TS08S, TS350, TS350AVE, TS360, TS50, TS510, TS760
Alternate Part Numbers:
9371-470-3120, 93714703120
Product Specifications
| L&S Part No. | 9371 470 3120 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 93714703120 |
| Unit of Sale | 1 |
| Size | 0340 |
| Applications | 030, 031, 032, 041, 041AV, 041FB, 041G, 042 AV, 042AV, 045, 048, 050, 051, 056, 075, 076, 08S, 090, 090G, BG17, BT 360, BT360, FS20, FS360C, FS410, FS410AV, FS410C, P835, P840, SG17, SG17L, TS08, TS08S, TS350, TS350AVE, TS360, TS50, TS510, TS760 |
| Machine Type | Disc Cutters, Brushcutters |
| Fits Brands | Stihl |
| Fits Models | TS350, TS360 | 030, 031 | 08S | TS510 | FS360C FS410C | TS08S, TS08 | TS50 | FS20 | FS410AV (old model) | 032 | 041 | 042 AV | 048 | 050, 051 | 056 | 076 | 075 | 090, 090G | 045 | SG17, SG17L | BT 360 | P835, P840 | TS760 |
