Description
Overview:

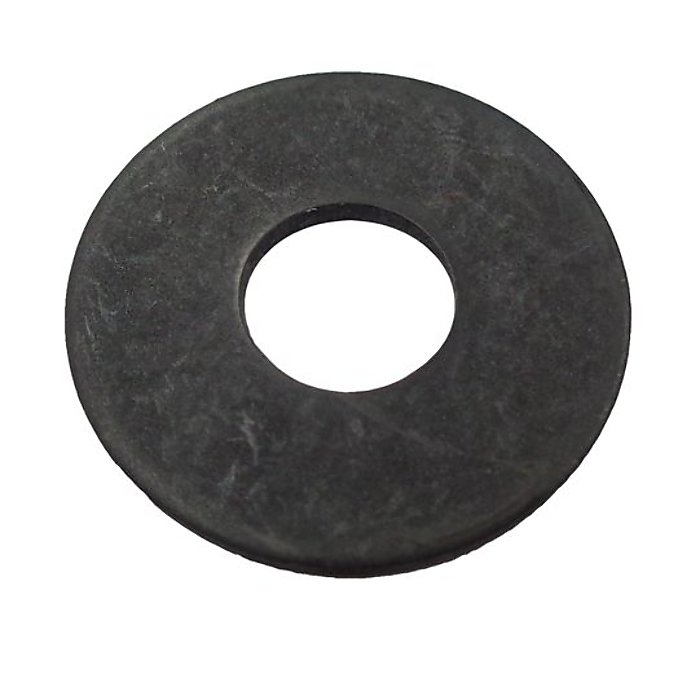

The Cup Spring 15x5.2x0.7 is a genuine Stihl OEM component designed to apply reliable axial preload in compact assemblies. Made from hardened spring steel with a cupped (conical) profile, it maintains tension in vibrating, high‐duty mechanisms so your equipment runs smoothly and parts stay correctly seated. Typical uses include hedge trimmers and long‐reach tools such as the HLE 71 and HLE 71 K. Its precise dimensions-15 mm outer diameter, 5.2 mm inner diameter, and 0.7 mm thickness-ensure a snug, consistent fit in Stihl assemblies. Identified by MPN 9485 648 0362, this cup spring is a practical service item for restoring performance, reducing play, and extending component life during routine maintenance or repairs.
Key Features:
- Genuine Stihl part for assured compatibility and reliability (MPN 9485 648 0362)
- Hardened spring steel construction for dependable force and long service life
- Compact cupped profile delivers consistent axial preload in tight assemblies
- Precise sizing: 15 mm OD, 5.2 mm ID, 0.7 mm thickness for accurate fit
- Helps resist loosening from vibration and reduces end‐play and rattle
- Smooth edges and consistent tolerances make it straightforward to fit
- Suitable for regular maintenance to restore smooth, efficient operation
- Durable build supports demanding outdoor use in hedge trimmers and attachments
Typical Applications:
Used to preload joints, linkages, and fastening stacks in Stihl hedge trimmers and long‐reach tools, including pivot heads and gearcase or blade‐drive assemblies. Ideal when refurbishing units that show vibration, rattle, or loss of tension, and during scheduled services to maintain consistent cutting performance.
Also known as:
Disc spring, spring washer, Belleville washer, conical spring washer, cupped washer.
Fits Models:
FH-KM, FH-KM 0-90 deg, FH-KM 135 deg, FH75, HEL 700, HEL 700 K, HL 95, HL 95 K, HL-KM, HL-KM 0-135 deg, HL-KM 0-90 deg, HL100, HL100K, HL73, HL73K, HL75, HL75K, HL90, HL90K, HL95, HL95K, HLE 71, HLE 71 K, HLE71, HLE71K, HLKM, FHKM, HEL700, HEL700K, HL-KM0-135deg, HL-KM0-90deg, FH-KM0-90deg, FH-KM135deg
Alternate Part Numbers:
9485-648-0362, 94856480362
Product Specifications
| L&S Part No. | 9485 648 0362 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 94856480362 |
| Unit of Sale | 1 |
| Applications | FH-KM, FH-KM 0-90 deg, FH-KM 135 deg, FH-KM0-90deg, FH-KM135deg, FH75, FHKM, HEL 700, HEL 700 K, HEL700, HEL700K, HL 95, HL 95 K, HL-KM, HL-KM 0-135 deg, HL-KM 0-90 deg, HL-KM0-135deg, HL-KM0-90deg, HL100, HL100K, HL73, HL73K, HL75, HL75K, HL90, HL90K, HL95, HL95K, HLE 71, HLE 71 K, HLE71, HLE71K, HLKM |
| Machine Type | Long Reach Hedgetrimmers, Hedgetrimmers |
| Fits Brands | Stihl |
| Fits Models | FH-KM 0-90 deg | FH-KM 135 deg | HL-KM 0-90 deg | HL-KM 0-135 deg | HL73, HL73K | HL75, HL75K | HL90K, HL90, HL95K | HL100, HL100K | HEL 700 K | HEL 700 | HL 95, HL 95 K | HLE 71, HLE 71 K | FH 0° - 90 ° | FH 135° | HL 0° - 90° | HL 135° |
