Description
Overview:

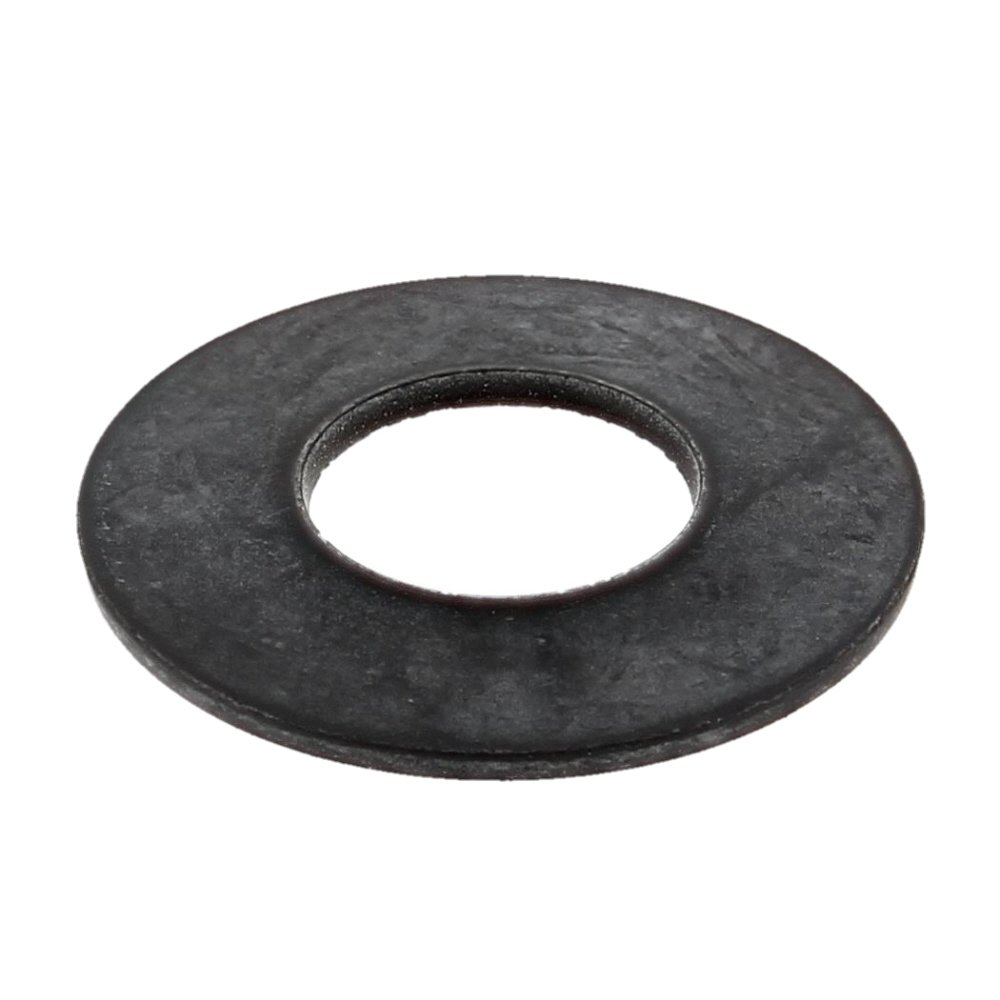

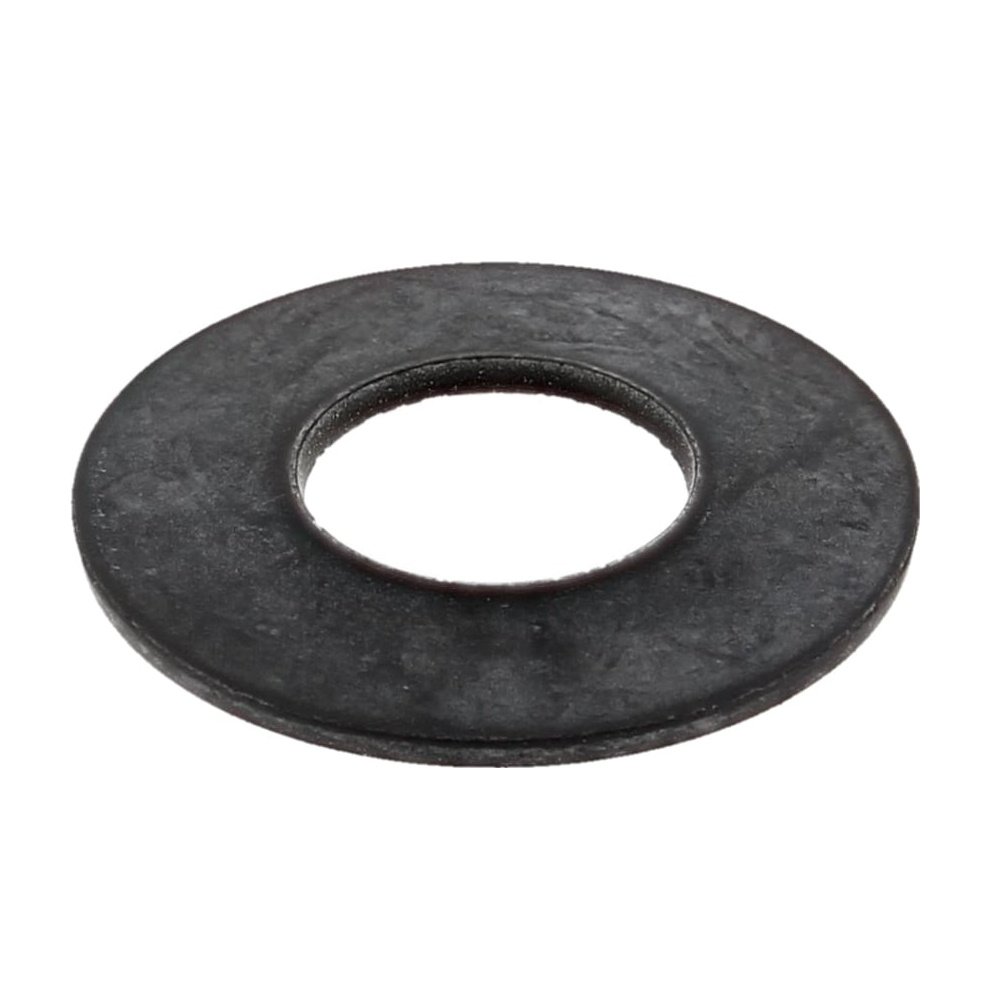

This Cup Spring 23x10.2x1.25 is a Genuine Stihl part designed to maintain correct axial preload and tension in high‐vibration cutting equipment. Made from hardened spring steel with a durable, dark protective finish, the dished (cup) profile resists flattening and helps keep assemblies tight under load. It is commonly used in Stihl petrol disc cutters such as the TS400 and TS460 to stabilise components that need a consistent clamping force. Dimensions are 23 mm x 10.2 mm x 1.25 mm (approx. 0.91 in x 0.40 in x 0.05 in), ensuring a precise fit where specified in the manufacturer's parts diagrams. As a genuine component, it supports reliable operation, reduces the risk of loosening, and helps extend service intervals in demanding cutting applications.
Key Features:
- Genuine Stihl part for correct fit and dependable performance
- Hardened spring steel construction for strength and fatigue resistance
- Dished profile maintains stable preload under vibration and thermal cycling
- Compact form factor suits confined assemblies in handheld cut-off saws
- Dimensions: 23 mm outer diameter x 10.2 mm inner diameter x 1.25 mm thickness (approx. 0.91 in x 0.40 in x 0.05 in)
- Durable protective finish helps resist corrosion in wet or dusty conditions
- Helps reduce fastener loosening, improving machine stability and cut accuracy
- Straightforward to install; ideal for routine maintenance and part-for-part replacement
Typical Applications:
Used in disc cutter assemblies that require a controlled clamping force, such as mounting points, guards, linkages, and other locations subject to vibration. Suitable for routine servicing to restore correct preload and prevent premature wear. Ideal for professional site work, hire fleets, and DIY maintenance of Stihl cut-off saws operating in masonry, concrete, and metal cutting tasks.
Also known as:
Belleville washer, cup washer, conical spring washer, dished spring washer, spring washer, coned disc spring.
Fits Models:
FW 20, FW 20 Cart, FW20, FW20 Cart, FW20Cart, TS 350, TS 350 AVE, TS 360, TS 400, TS 460, TS 510, TS 760, TS350, TS350AVE, TS360, TS400, TS460, TS510, TS760
Alternate Part Numbers:
9486-648-1195, 94866481195
Product Specifications
| L&S Part No. | 9486 648 1195 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 94866481195 |
| Unit of Sale | 1 |
| Applications | FW 20, FW 20 Cart, FW20, FW20 Cart, FW20Cart, TS 350, TS 350 AVE, TS 360, TS 400, TS 460, TS 510, TS 760, TS350, TS350AVE, TS360, TS400, TS460, TS510, TS760 |
| Machine Type | Disc Cutters |
| Fits Brands | Stihl |
| Fits Models | TS400 | TS350, TS360 | TS510 | TS460 | FW20 Cart | TS760 |
