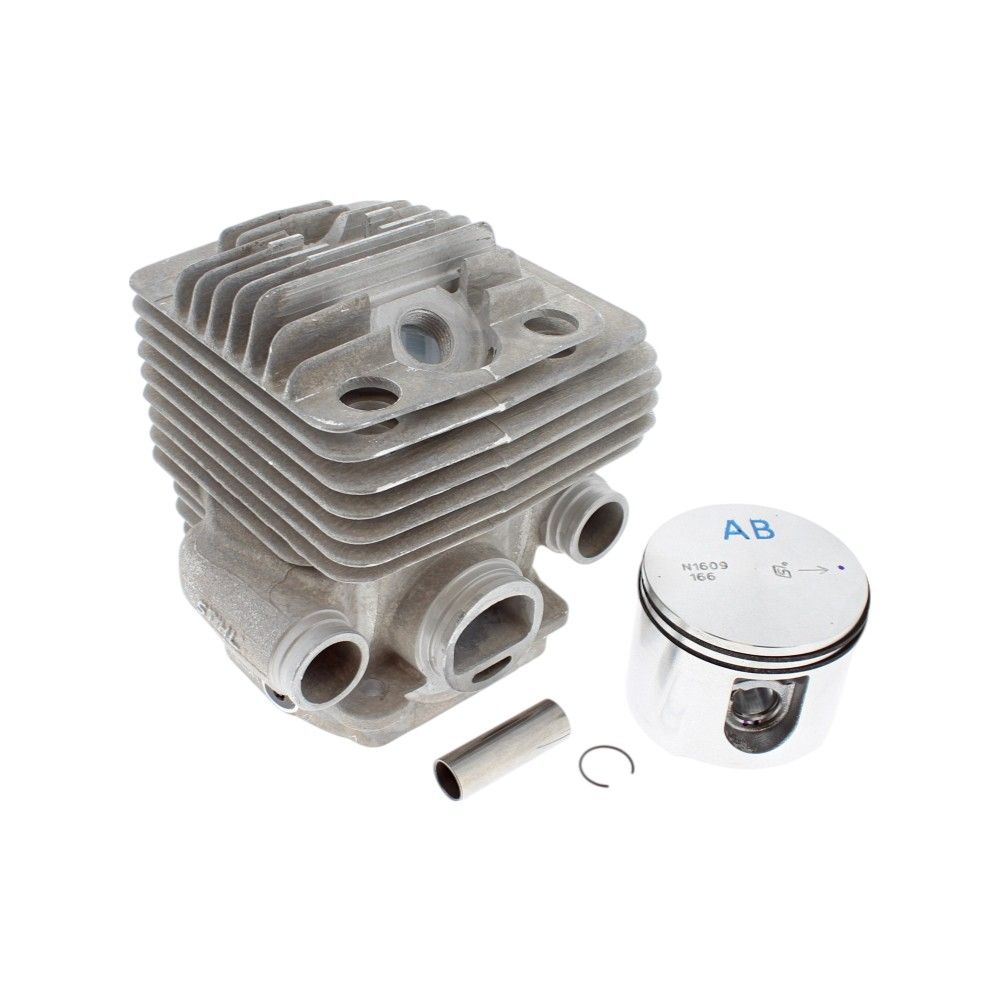

Cylinder With Piston 56 mm for Stihl TS800, TS700 - 4224 020 1205

Cylinder With Piston 56 mm for Stihl TS800, TS700 - 4224 020 1205
Cylinder With Piston 56 mm for Stihl TS800, TS700 - 4224 020 1205 Cylinder With Piston 56 mm for Stihl TS800, TS700 - 4224 020 1205 Cylinder With Piston 56 mm for Stihl TS800, TS700 - 4224 020 1205
Part No.
4224 020 1205
In stock
Dispatched today if ordered before 4pm
Dispatched next working day

£293.28 £244.40

Description

Overview:
This Cylinder with Piston is a genuine Stihl OEM top-end assembly for TS700 and TS800 cut-off saws. Built from durable aluminium alloy with a precisely machined bore, it is designed to restore compression, power, and reliability in hard-working two-stroke engines. The 56 mm (2.20 in) cylinder and matched piston ensure correct fit and sealing, helping the saw start cleanly, idle steadily, and pull strongly under load. As an original Stihl part (reference 4224 020 1205), it fits directly in place of the factory components without modification. Well suited to demanding site conditions, this assembly supports long service life when paired with clean air filtration and the correct fuel mix. Ideal for performance recovery after wear, scoring, or low compression.

Key Features:
- Genuine Stihl OEM part for assured compatibility and performance
- 56 mm (2.20 in) bore with matched piston for accurate clearances and sealing
- Robust aluminium alloy construction for strength and heat dissipation
- Direct-fit replacement for the original TS700/TS800 cylinder and piston
- Helps restore compression, power output, and throttle response
- Smooth starting and stable idle when installed and tuned correctly
- Precision machining supports consistent performance and longevity
- Suitable for heavy-duty cutting environments and frequent professional use
- Designed for straightforward replacement by competent users with standard tools

Typical Applications:
Used to rebuild the engine top end on Stihl TS700 and TS800 saws when the original cylinder or piston is worn, scored, or has lost compression. Common during overhauls on equipment used for cutting concrete, masonry, asphalt, and metal on construction sites, landscaping projects, utilities work, and tool hire fleets where reliability and output are essential.

Also known as:
Engine top-end kit, cylinder barrel and piston, piston and cylinder kit, top cylinder assembly, jug kit, bore kit, replacement barrel and piston, cylinder-piston set, engine rebuild cylinder kit.

Fits Models:
TS700, TS800

Alternate Part Numbers:
4224-020-1205, 42240201205

Product Specifications

More Information
L&S Part No. 4224 020 1205
Part Type Genuine Part
Manufacturer Stihl
OEM No. 42240201205
Unit of Sale 1
Applications TS700, TS800
Machine Type Disc Cutters
Fits Brands Stihl
Fits Models TS700 |  TS800
