Description
Overview:

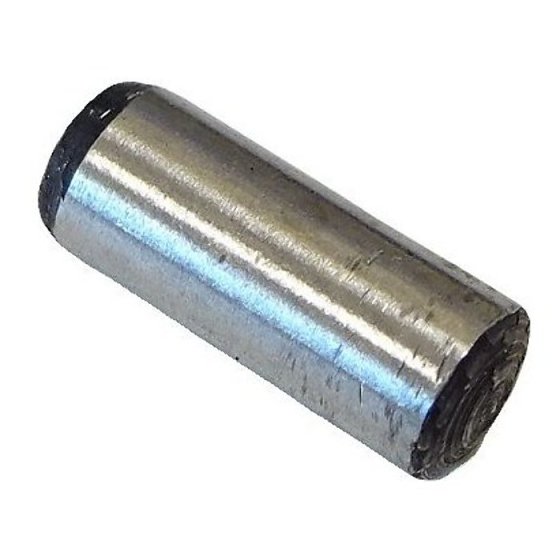

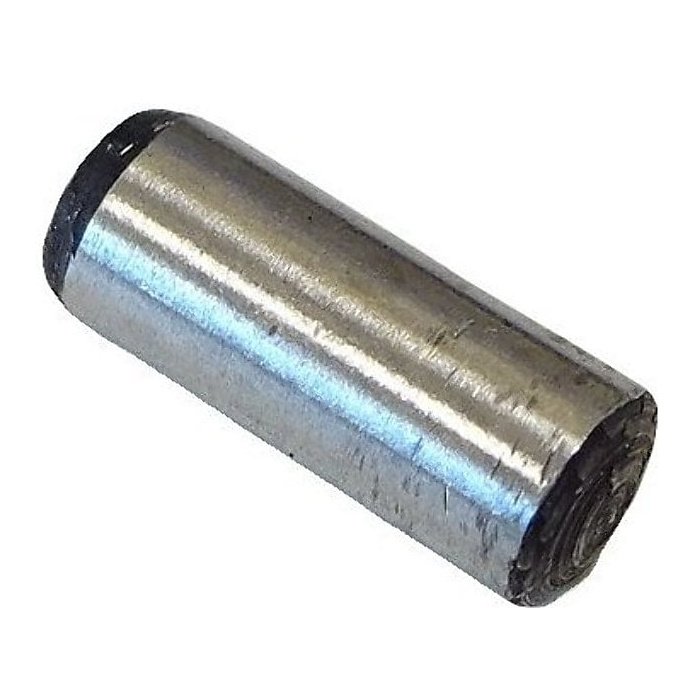

The Cylindrical Pin 4x10 is a genuine Stihl spare part designed to locate and secure components inside FH and HL series tools, including the FH-KM and HL-KM attachments. Made from durable metal, it provides a precise, stable fit that helps keep housings, joints and linkages correctly aligned under regular use. Supplied to the original specification, its manufacturer part number (MPN) is 9381 651 2062, ensuring like-for-like compatibility with the factory-fitted pin. The size is 4 mm diameter x 10 mm length (approximately 0.16 in x 0.39 in), which supports accurate assembly and smooth operation. Ideal for maintenance and repairs when a pin is worn, lost or damaged, this genuine Stihl part restores correct tolerances, reduces play, and supports reliable performance over time.
Key Features:
- Genuine Stihl OEM part for assured compatibility (MPN 9381 651 2062)
- Precise 4 mm x 10 mm size (approx 0.16 in x 0.39 in) for accurate alignment
- Durable metal construction for dependable, long-lasting use
- Straightforward like-for-like replacement with no modifications required
- Helps maintain correct tolerances and reduce vibration or looseness
- Suitable for FH and HL series machines including FH-KM and HL-KM
- Secure fit in correctly sized bores for consistent retention
- Supports reliable operation of gearheads, joints and linkage assemblies
Typical Applications:
Used when assembling or refurbishing Stihl long-reach hedge trimmers and KombiSystem attachments to locate mating parts in gear housings, hinges and couplings. Suitable for workshop rebuilds or on-site repairs where a locating pin must be replaced to restore correct alignment, reduce play, and maintain smooth, efficient operation.
Also known as:
Dowel pin, locating pin, location dowel, straight pin, cylindrical locating pin, 4x10 pin, 4 mm x 10 mm pin (approx 0.16 in x 0.39 in). These terms refer to a solid cylindrical pin used to position and secure components during assembly.
Fits Models:
FH-KM, FH-KM 135 deg, FH-KM135deg, FH75, FHKM, HEL 700, HEL 700 K, HEL700, HEL700K, HL 95, HL 95 K, HL-KM, HL-KM 0 deg, HL-KM 0-135 deg, HL-KM0-135deg, HL-KM0deg, HL100, HL100K, HL45, HL75, HL75K, HL90, HL90K, HL95, HL95K, HLE 71, HLE 71 K, HLE71, HLE71K, HLKM
Alternate Part Numbers:
9381-651-2062, 93816512062
Product Specifications
| L&S Part No. | 9381 651 2062 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 93816512062 |
| Unit of Sale | 1 |
| Applications | FH-KM, FH-KM 135 deg, FH-KM135deg, FH75, FHKM, HEL 700, HEL 700 K, HEL700, HEL700K, HL 95, HL 95 K, HL-KM, HL-KM 0 deg, HL-KM 0-135 deg, HL-KM0-135deg, HL-KM0deg, HL100, HL100K, HL45, HL75, HL75K, HL90, HL90K, HL95, HL95K, HLE 71, HLE 71 K, HLE71, HLE71K, HLKM |
| Machine Type | Long Reach Hedgetrimmers |
| Fits Models | FH-KM 135 deg | HL-KM 0 deg | HL-KM 0-135 deg | HL45 | HL75, HL75K | HL90K, HL90, HL95K | HL100, HL100K | HEL 700 K | HEL 700 | HL 95, HL 95 K | HLE 71, HLE 71 K | FH 135° | HL 0° | HL 135° |
