Description
Overview:

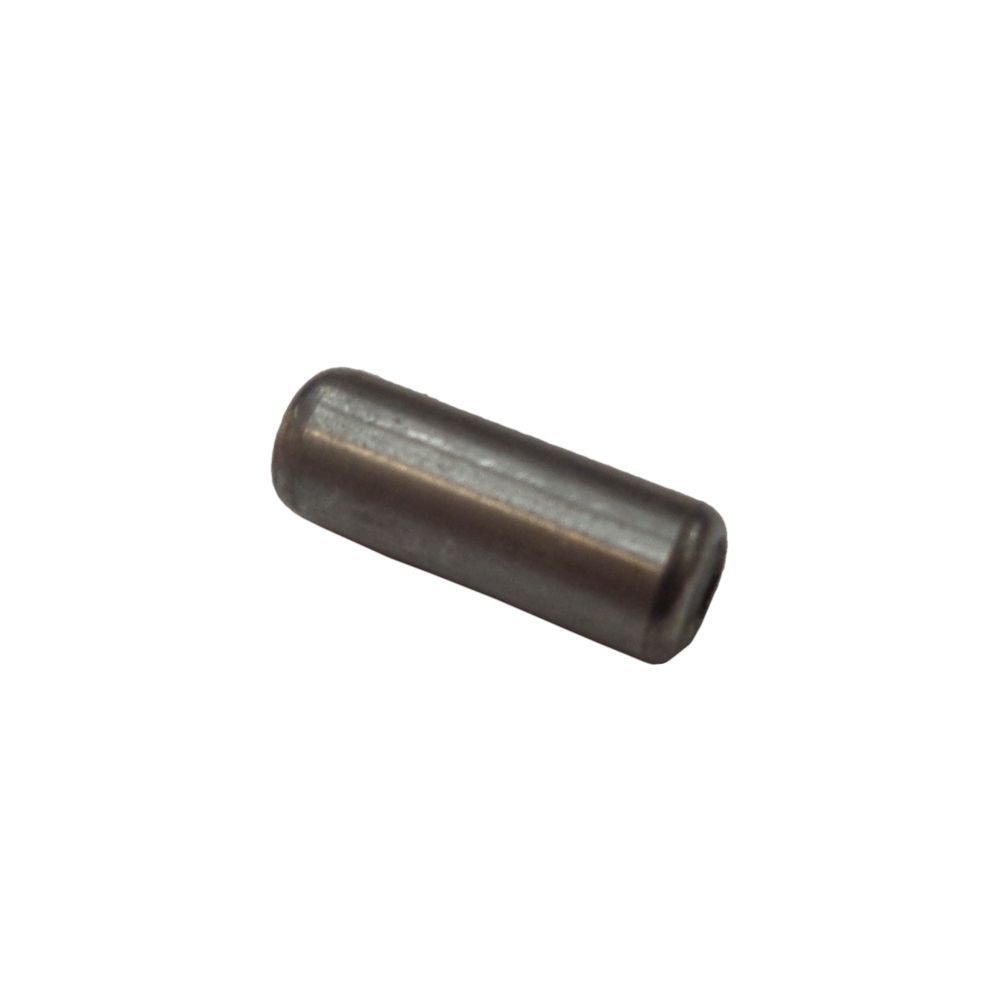

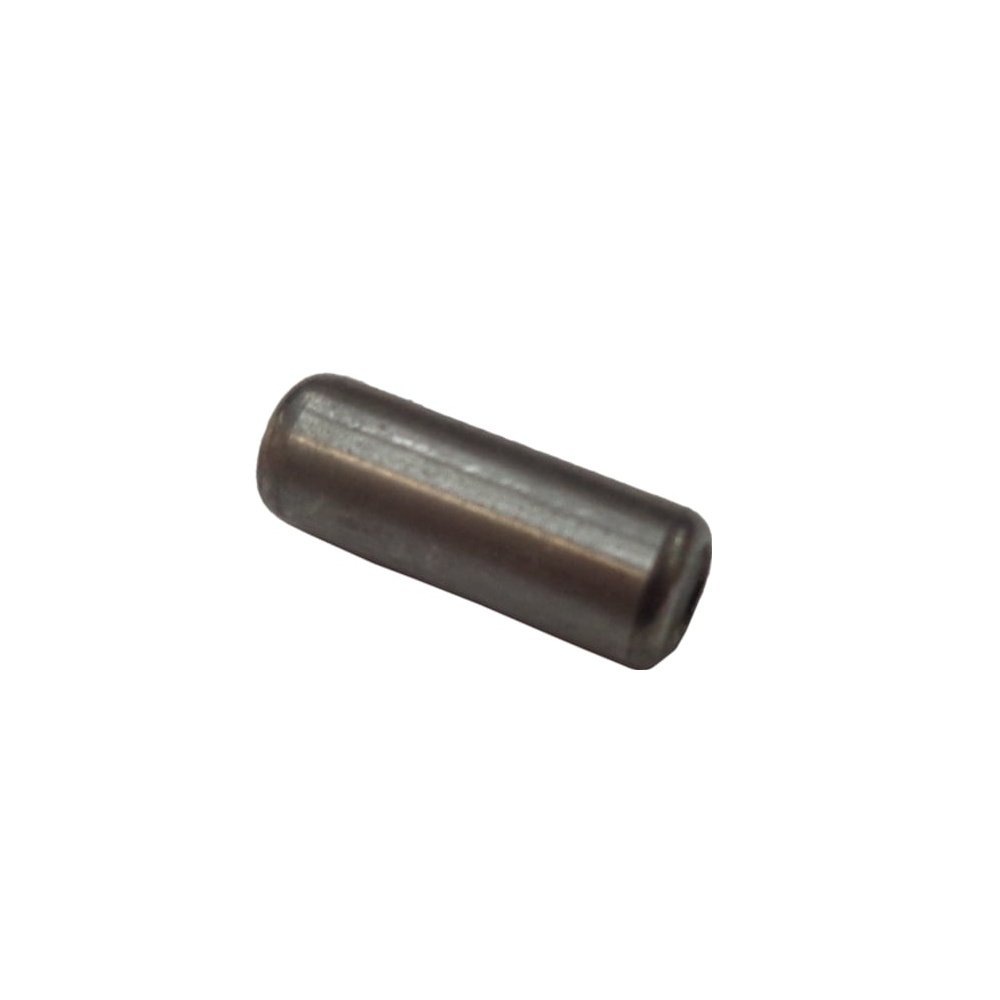

The Cylindrical Pin 5x12 is a Genuine Stihl OEM part used to secure and accurately locate components within Stihl handheld machines. Made from durable steel with a precision cylindrical form, it helps maintain alignment under vibration and day‐to‐day use. This pin measures 5 mm in diameter by 12 mm in length, making it a reliable replacement where a 5x12 mm locating pin is specified. Typical applications include brushcutters, trimmers, hedge trimmers, Kombi engines, and earth augers. It is suitable for a wide range of models, including the Stihl FR85T and FR85. Designed for a consistent press fit and smooth insertion, the chamfered ends help reduce installation effort and the risk of damage to surrounding parts. Part number: 9371 470 2570.
Key Features:
- Genuine Stihl OEM component for assured fit and specification
- Precision 5 mm x 12 mm size for correct location and retention
- Robust steel construction for long service life in demanding use
- Chamfered ends to aid alignment and easier fitting
- Helps maintain correct component alignment, reducing wear and noise
- Stable under vibration and load, supporting reliable operation
- Direct replacement for worn or missing pins to restore function
- Suitable for routine maintenance and repairs across multiple Stihl platforms
- Clearly identified by Stihl part number 9371 470 2570 and listed alternates
Typical Applications:
Used to locate and secure parts such as housings, brackets, linkages, guards, and drive assemblies in Stihl machinery. Ideal for restoring tight tolerances where original pins have worn or been removed, helping ensure smooth running, reduced play, and consistent performance in professional and domestic environments.
Also known as:
Cylindrical dowel, locating dowel, alignment pin, straight dowel pin, locating pin, connector pin, steel dowel, alignment dowel.
Fits Models:
009, 010, 011, 012, BT 130, BT 130 Z, BT 131, BT130, BT130Z, BT131, FC 100, FC100, FC110, FR130T, FR131T, FR230, FR230T, FR85, FR85T, FS100, FS100R, FS100RX, FS110, FS110R, FS110RX, FS110X, FS120, FS130, FS130R, FS200, FS230, FS250, FS310, FS311, HL100, HL100K, KM100, KM100R, KM110R, KM130, KM130R, KR85, KR85 Attachment
Alternate Part Numbers:
9371-470-2570, 93714702570
Product Specifications
| L&S Part No. | 9371 470 2570 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 93714702570 |
| Unit of Sale | 1 |
| Machine Type | Brushcutters, Pole Pruners, Brush Knives, Backpack Brushcutters, Kombi Engines |
| Fits Brands | Stihl |
| Key Features | - Genuine Stihl OEM part ensures correct fit - Precision 5 mm x 12 mm size for accurate location - Durable steel construction for long service life - Chamfered ends for easier fitting and alignment - Compatible with multiple Stihl models, including FR85T and FR85 |
| Fits Models | 009 | FS100, FS110 | FS120, FS200, FS250 | FS130, FS130R | FS310 | FS311 | FR85T, FR85 | FR130T | FR131T | FR230, FR230T | 010, 011 | 012 | FS230 | KM100, KM100R, KM110R | KM130, KM130R | KR85 Attachment | FC 100 | BT 130 | BT 131 | BT 130 Z | HL100, HL100K |
