Description
Overview:

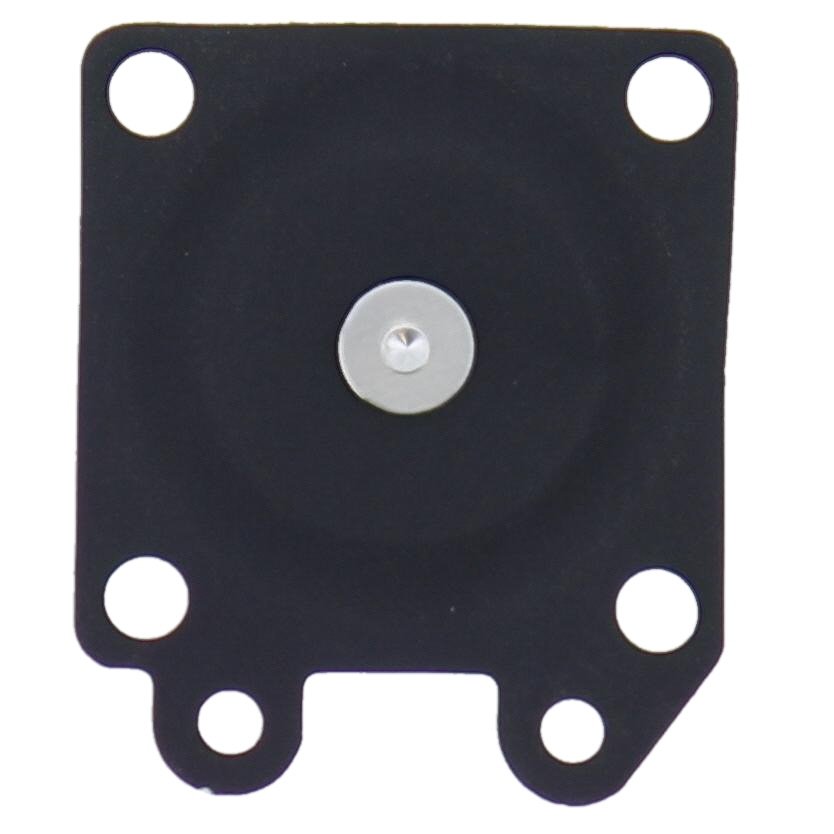

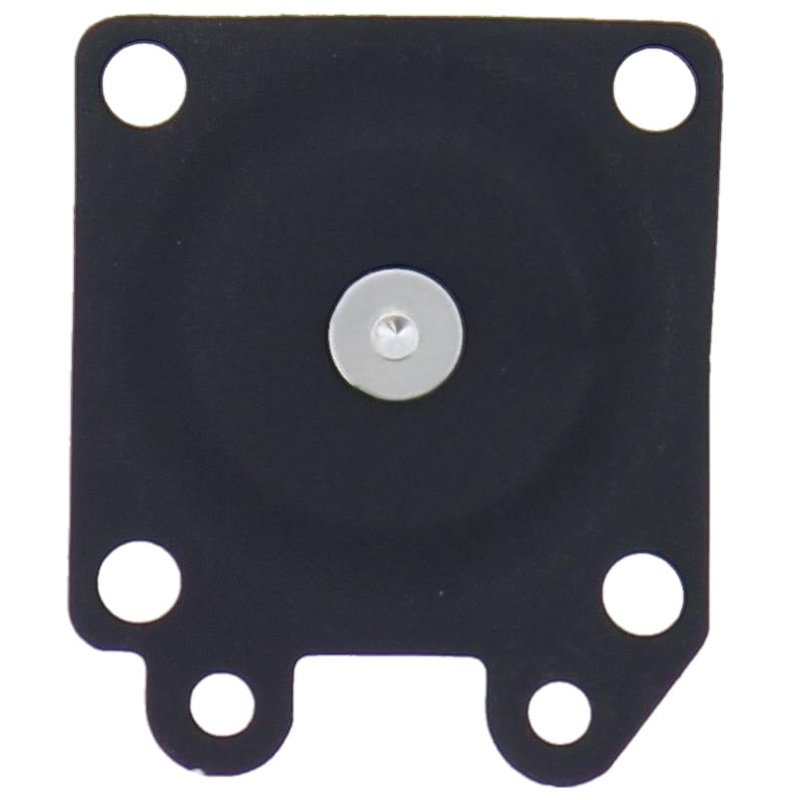

This Genuine Honda OEM diaphragm assembly is designed for the carburettors fitted to Honda GX22 and GX31 mini 4-stroke engines. It regulates fuel delivery inside the carburettor so the engine starts easily, idles steadily, and runs smoothly under load. Built from a fuel‐resistant elastomer membrane with a rigid backing plate, it replaces worn or hardened diaphragms that can cause surging, stalling, or poor throttle response. As an exact Honda service part, it matches the original specification for fit and function, helping restore factory performance without guesswork. Supplied under Honda references 16013-ZM3-004 and 16013ZM3004, it suits handheld garden and light construction tools powered by these engines, including brush cutters, hedge trimmers, and small utility equipment where reliable fuel metering is essential.
Key Features:
- Genuine Honda OEM part for assured compatibility and reliability
- Purpose-built for GX22 and GX31 mini 4‐stroke carburettors
- Fuel‐resistant elastomer diaphragm with rigid backing for durability
- Restores correct fuel metering, smoother idle, and cleaner pick‐up
- Direct replacement for MPN 16013-ZM3-004 / 16013ZM3004
- Helps cure hard starting, hunting, hesitation, and stalling due to a perished diaphragm
- Straightforward to fit with basic hand tools during routine servicing or repair
- Made to Honda tolerances to maintain performance and reduce downtime
Typical Applications:
Used when refurbishing or servicing the carburettor on small Honda-powered equipment. Typical examples include brush cutters, hedge trimmers, pruners, edgers, and compact pumps powered by GX22 or GX31 engines. Ideal for preventative maintenance or to resolve fuel delivery issues after long storage or use with aged fuel.
Also known as:
Carburettor diaphragm assembly, carb diaphragm kit, metering diaphragm, fuel pump diaphragm, carb repair membrane, carburettor rebuild diaphragm, engine fuel diaphragm.
Fits Models:
GX22, GX31
Alternate Part Numbers:
16013-ZM3-004, 16013ZM3004
Product Specifications
| L&S Part No. | 16013 ZM3 004 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Honda |
| OEM No. | 16013ZM3004 |
| Unit of Sale | 1 |
| Applications | GX22, GX31 |
| Machine Type | Engines |
| Fits Brands | Honda |
| Fits Models | GX31 (GCAG) | GX22 (GCAF) |
