Description
Overview:

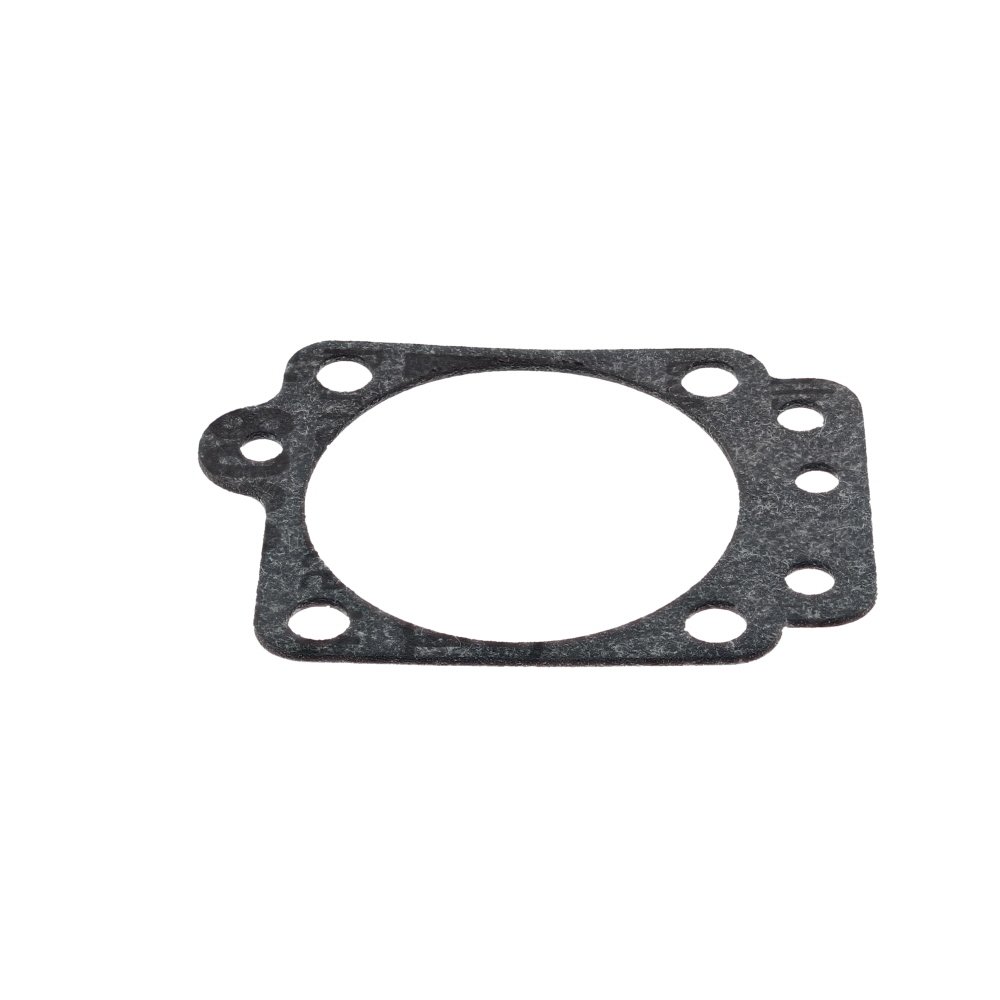

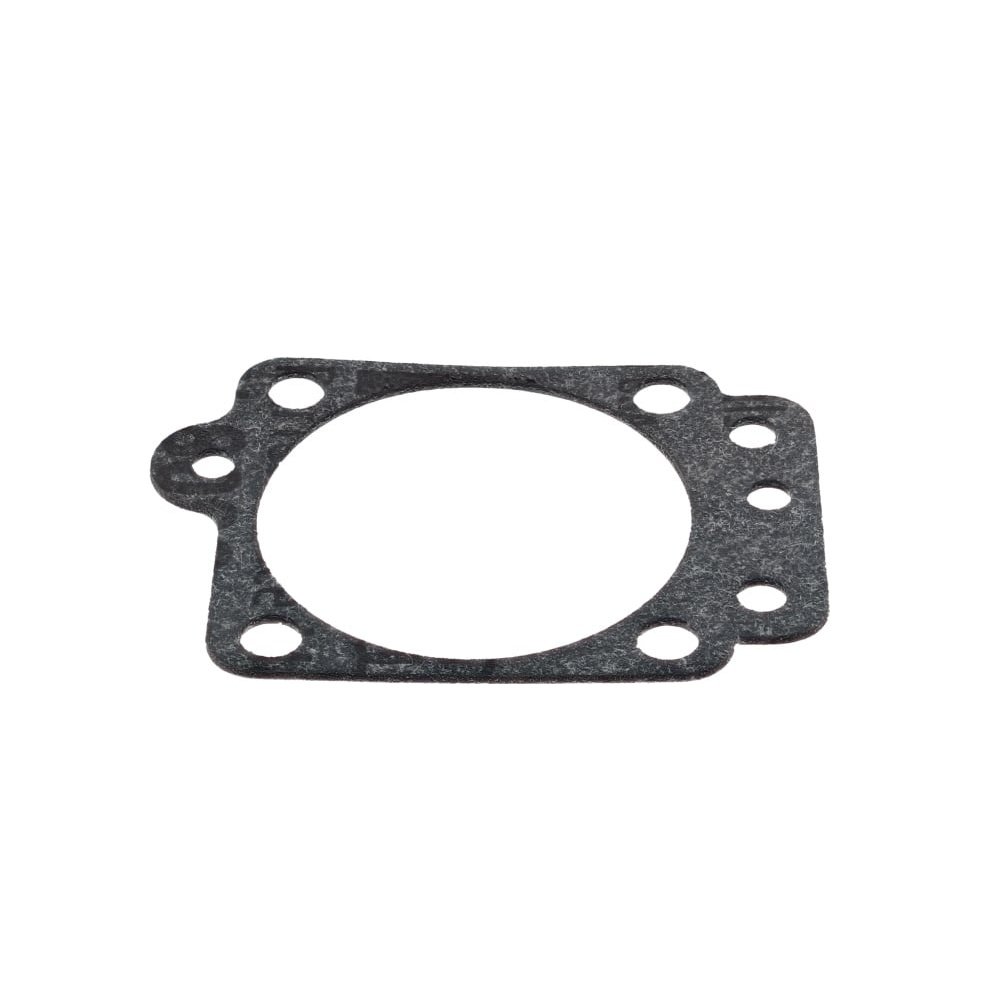

This genuine Honda gasket and metering diaphragm assembly restores the correct seal and fuel metering in the carburettor of small Honda four‐stroke engines. Made from fuel‐resistant elastomer and gasket composite, it sits between the carburettor body and cover to prevent air leaks and maintain stable idle, smooth acceleration, and reliable starting. It is designed for popular hand‐held machines powered by Honda mini 4‐stroke engines such as the GX25 and GX35, commonly found in brushcutters, hedge trimmers, and multi‐tools. Replacing a hardened, torn, or deformed diaphragm is a routine service task that protects engine efficiency and reduces erratic running. As a Genuine Honda OEM part, it ensures the correct thickness, port alignment, and spring control required for precise carburettor performance.
Key Features:
- Genuine Honda OEM part for assured compatibility and fit
- Fuel‐resistant diaphragm and quality gasket materials for durability
- Restores proper carburettor sealing to prevent air and fuel leaks
- Helps recover easy starting, smooth idle, and consistent throttle response
- Correct port and screw‐hole alignment for quick, accurate installation
- Stable metering action supports reliable running across working temperatures
- Suitable for regular maintenance when engines show surging or poor idle
- Designed for Honda mini 4‐stroke outdoor power equipment applications
- Fits a wide range of GX‐series variants used in trimmers and hedge cutters
- Supports long service life when used with clean fuel and routine servicing
Typical Applications:
Used during carburettor service on Honda-powered brushcutters, hedge trimmers, and similar handheld tools to replace worn diaphragms and gaskets. Ideal when engines are hard to start, surge under load, or fail to hold a steady idle. Suitable for seasonal overhauls to keep commercial and domestic equipment running reliably.
Also known as:
Carburettor metering diaphragm, carburettor diaphragm gasket, carb body gasket, fuel metering membrane, carb seal for Honda mini 4‐stroke engines.
Fits Models:
GX22, GX25, GX25N, GX25NT, GX25T, GX31, GX35, GX35N, GX35NT, GX35T, HHH25S, HHH25S 75E, UMK 425 LE, UMK 435 UE, UMK425LE, UMK435UE
Alternate Part Numbers:
16010-ZM3-004, 16010ZM3004
Product Specifications
| L&S Part No. | 16010 ZM3 004 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Honda |
| OEM No. | 16010ZM3004 |
| Unit of Sale | 1 |
| Applications | GX22, GX25, GX25N, GX25NT, GX25T, GX31, GX35, GX35N, GX35NT, GX35T, HHH25S, HHH25S 75E, UMK 425 LE, UMK 435 UE, UMK425LE, UMK435UE |
| Machine Type | Engines |
| Fits Brands | Honda |
| Fits Models | GX25 (GCAAM) | GX35 (GCACM) | GX25 (GCABK) | GX35N (GCAEK) | GX25 (GCABM) | GX25N (GCADK) | GX25T (GCALT) | GX35T (GCAMT) | GX25T (GCANT) | GX25T (GCAPT) | GX25NT (GCART) | GX35NT (GCAST) | GX31 (GCAG) | GX22 (GCAF) | HHH25S 75E | UMK 435 UE | UMK 425 LE |
