Description
Overview:

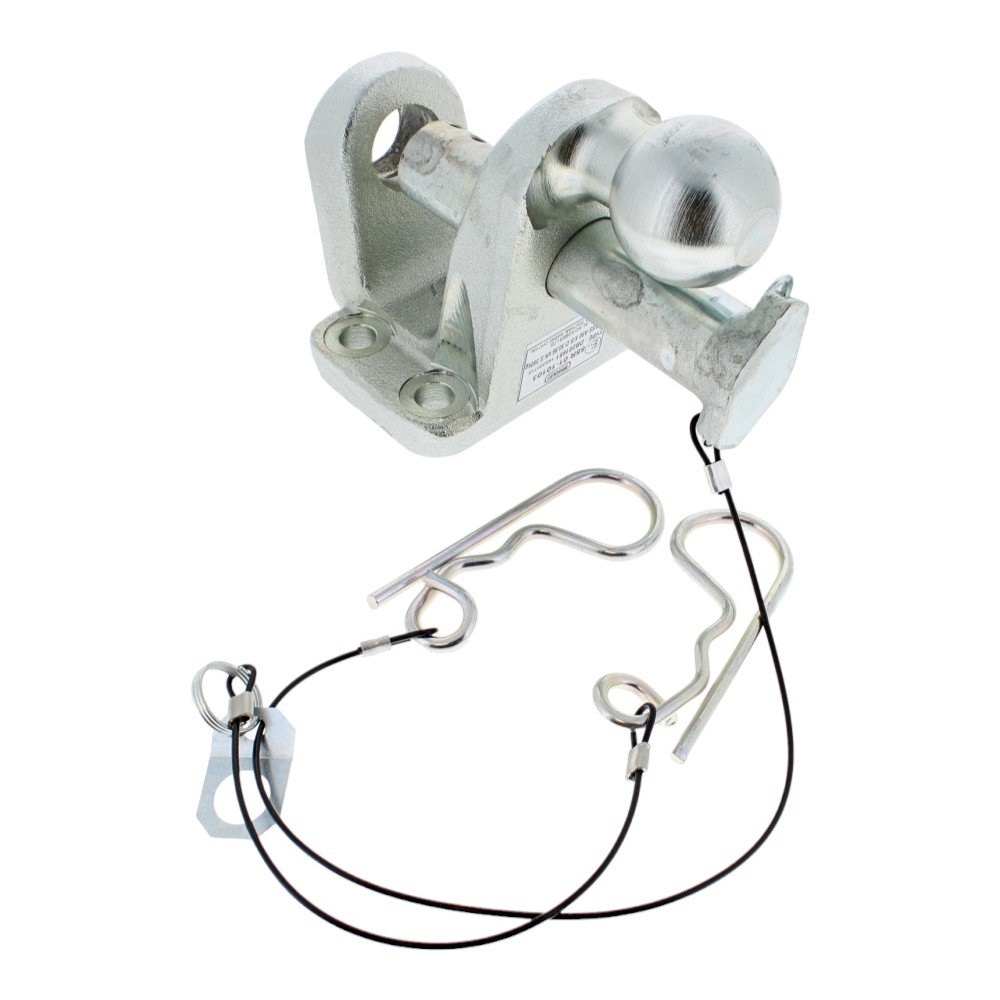

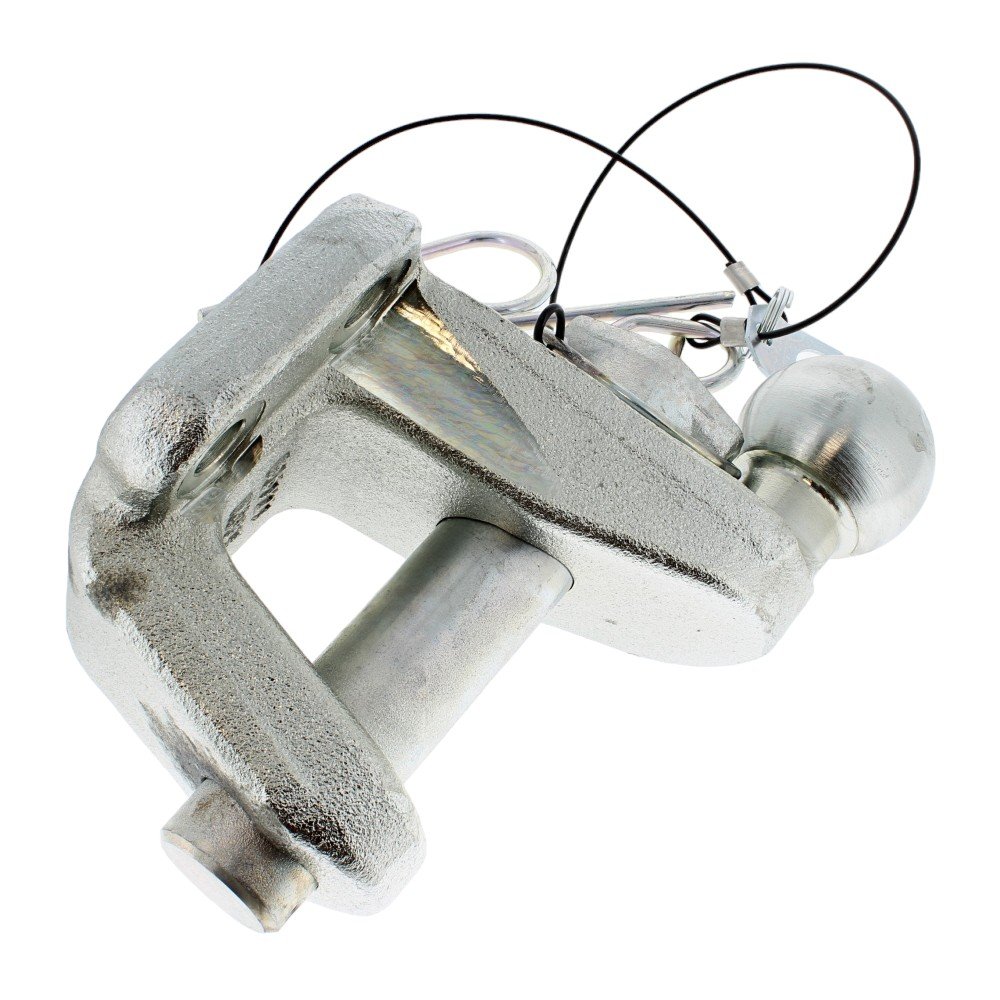

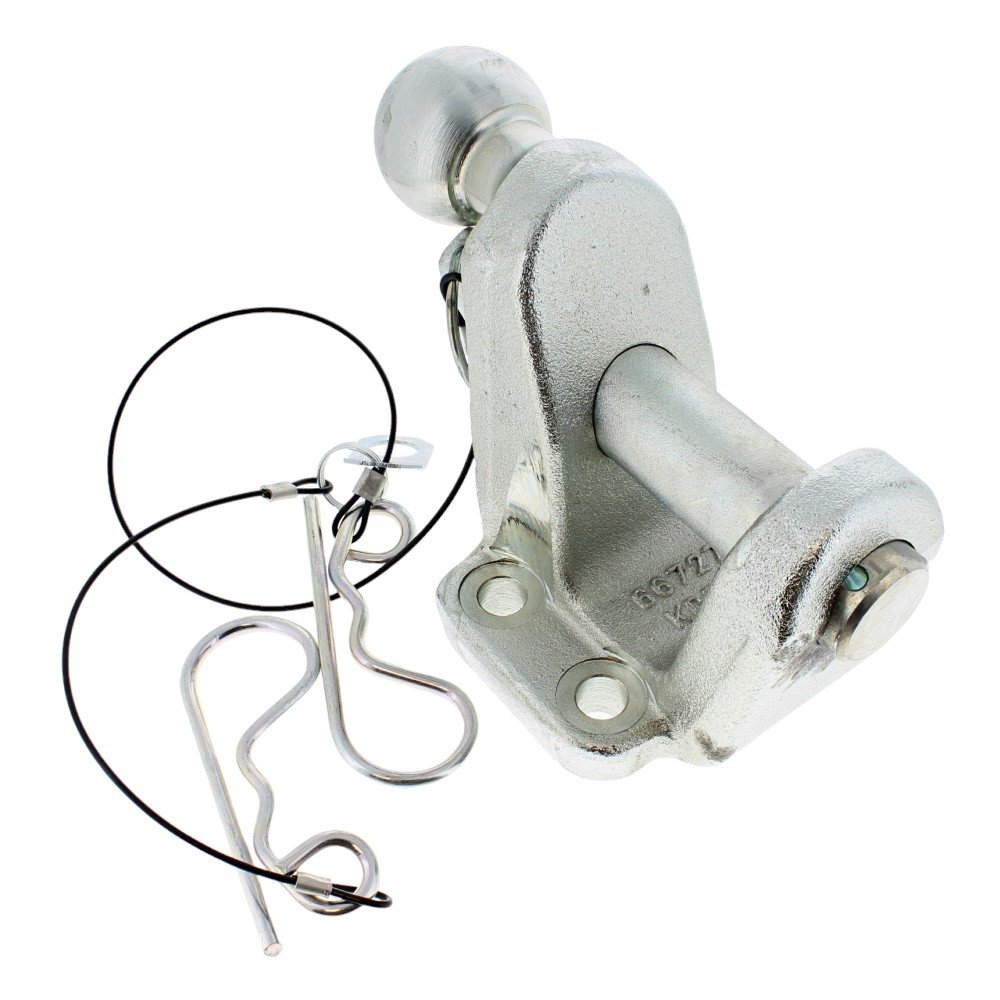

Dixon-Bate universal coupling combining a 50mm tow ball and a 32mm diameter pin in a single unit, allowing one vehicle to tow ball-hitched trailers and towing eye trailers without changing hardware. Ball and pin assembly are forged steel, finished in zinc with clear passivate. Four-bolt mounting on 85 x 44mm fixing centres taking 1/2" UNF bolts. Classified A50-X/S and built to EU standard 94/20EC and UN/ECE Regulation 55. Supplied with the 32mm pin and safety attachment. Mounting bolts are not included and are ordered separately as an imperial or metric bolt pack.
Specification:
- D-value: 30.95kN
- S-value (vertical load): 350kg
- Ball diameter: 50mm
- Pin diameter: 32mm
- Maximum load on the ball: 3500kg
- Maximum load on the pin: 5000kg

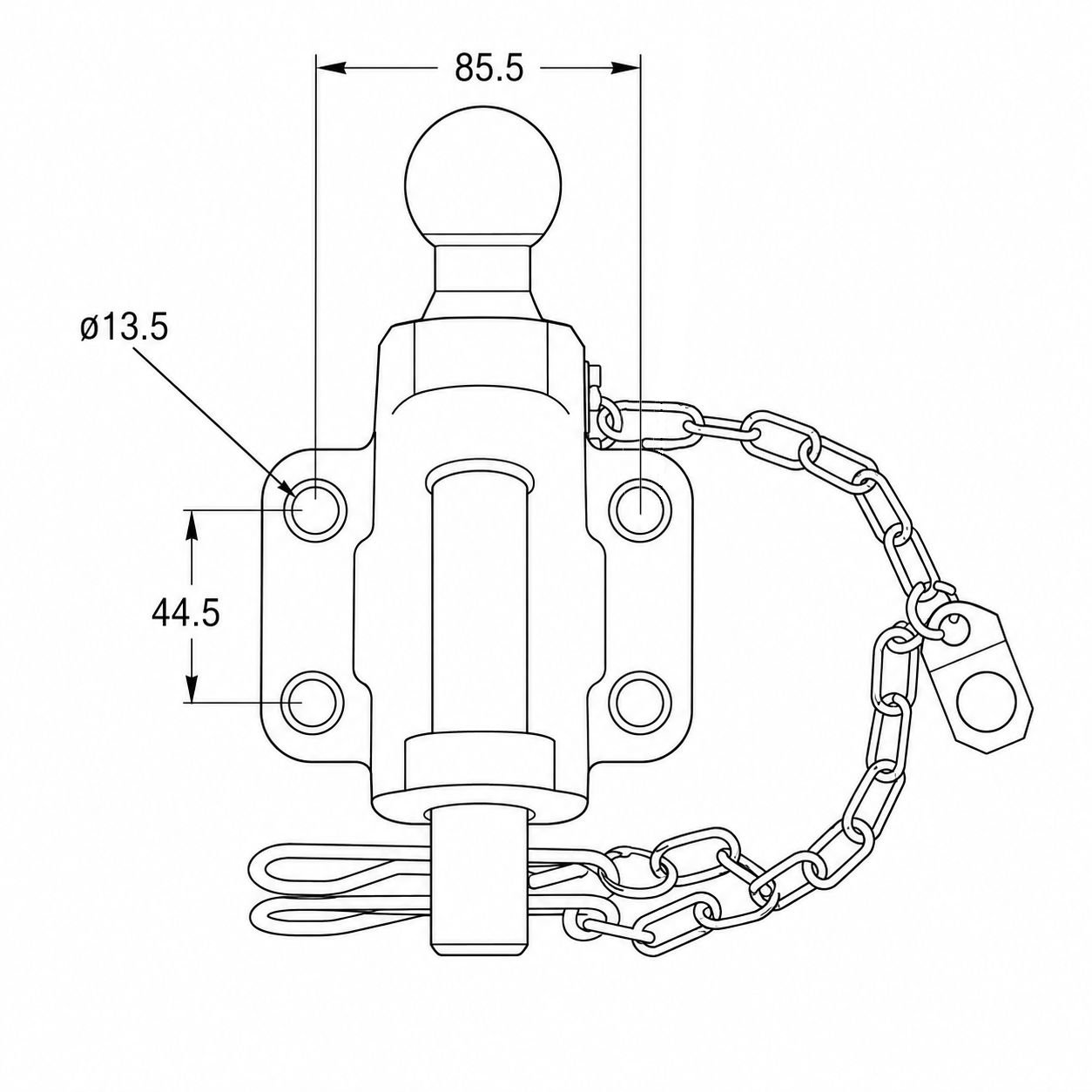

- Fixing: 4 bolt, 85 x 44mm centres, 1/2" UNF
- Coupling class: A50-X/S
- Finish: zinc and clear passivate
- Standards: EU 94/20EC, UN/ECE Reg 55
- Approval number: E11 55R 01-10103
- Manufacturer part number: 185008715
- Bolts not included
Towing Capacity:
The ball and the pin carry separate ratings: 3500kg through the 50mm ball, 5000kg through the 32mm pin.
Maximum braked trailer weight derived from the D-value:
- Behind a 7,500kg vehicle: 5,440kg
- Behind an 18,000kg vehicle: 3,820kg
These are coupling limits only. The lowest of the coupling limit, the towing vehicle's plated towing limit, the trailer's gross weight and the driver's licence entitlement applies. Centre-axle trailers are rated on Dc and V-value rather than D.
Typical Applications:
Heavy mixed towing on commercial vehicles, agricultural tractors and plant transport where both British standard towing eyes and 50mm ball couplings are in use across the trailer fleet.
Product Specifications
| L&S Part No. | 201691 |
|---|---|
| Part Type | Genuine Part |
| Key Features | - 50mm ball and 32mm pin combined in one unit - Forged steel construction with zinc finish - Four-bolt mounting, 85 x 44mm centres - Maximum pin load: 5000kg, ball load: 3500kg - Complies with EU and UN/ECE standards |
