Description
Overview:

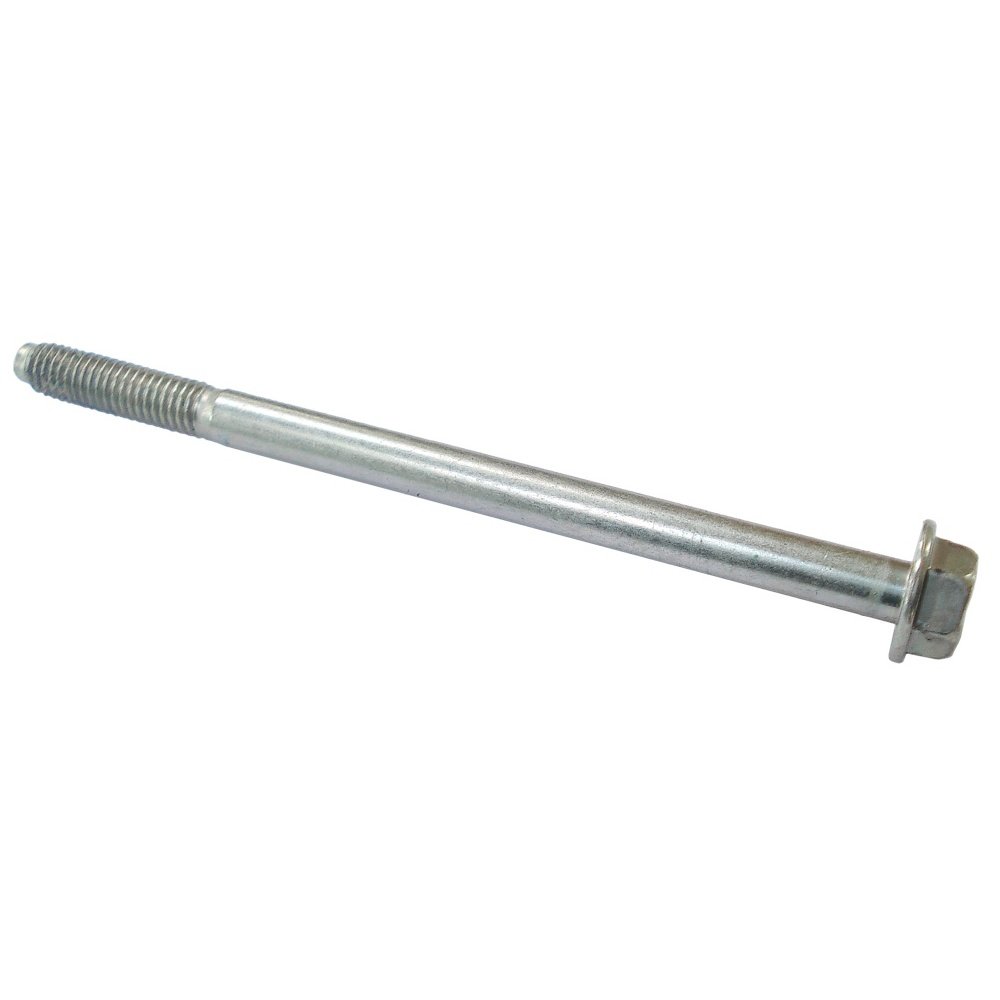

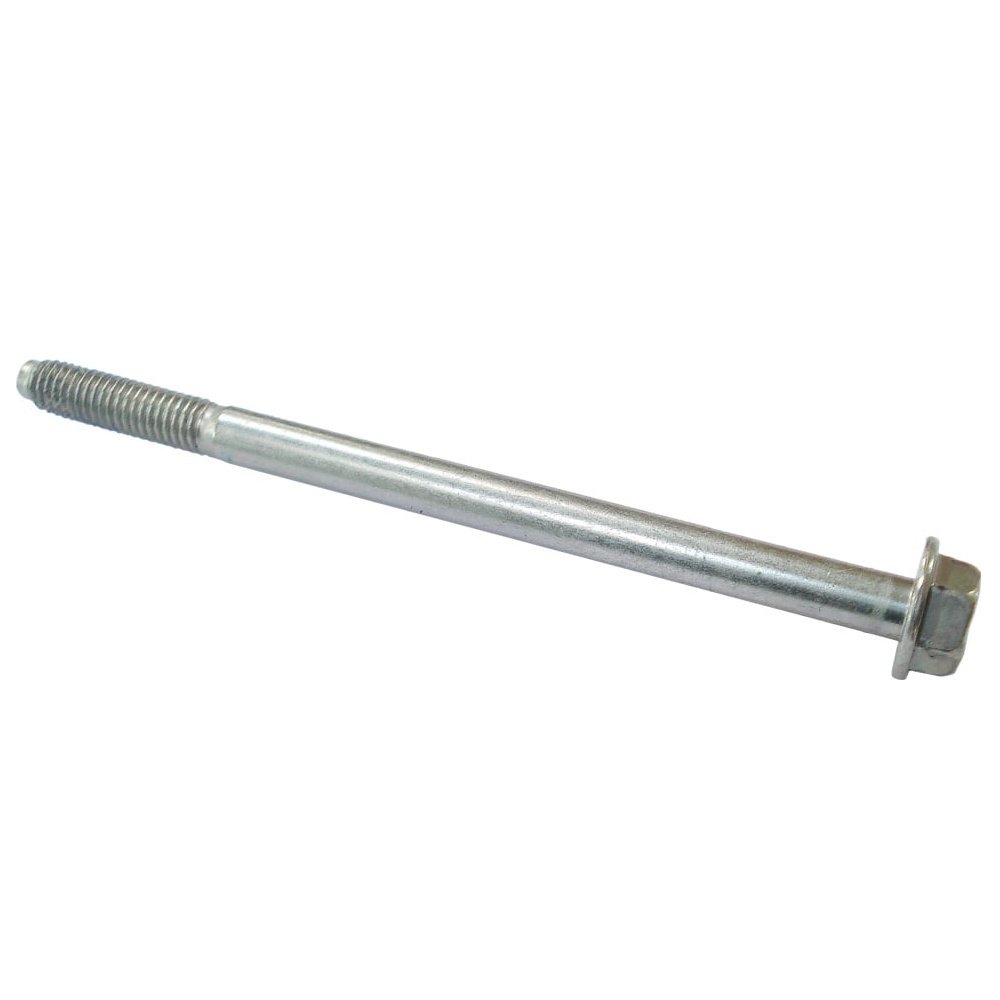

This Genuine Honda flange bolt is a precision fastener for small Honda engines, including the GX100 and GX100U. Built from high‐strength steel with a durable, corrosion‐resistant finish, it provides reliable clamping where vibration is common. The integrated flange spreads the load for a secure hold on mating parts. Commonly used to mount the air cleaner and carburettor assemblies, it helps keep intake components aligned and leak‐free, supporting consistent engine performance. Dimensions are 5 mm diameter x 77 mm length (approx. 0.20 in x 3.03 in). As an OEM part, it matches the original specification for fit and function, making it suitable for routine maintenance and repairs on construction, landscaping, and garden machinery powered by Honda GX100‐series engines.
Key Features:
- Genuine Honda OEM part for assured compatibility and reliability
- Precision fit for Honda GX100 and GX100U engines
- High‐strength steel with a corrosion‐resistant finish for long service life
- Flange head spreads clamping load to protect components and resist loosening
- Ideal for high‐vibration environments found in compact petrol engines
- Dimensions: 5 mm x 77 mm (approx. 0.20 in x 3.03 in) for accurate replacement
- Smooth shank and clean thread form for easy, repeatable installation
- Supports correct alignment of air cleaner and carburettor parts
- Suitable for scheduled servicing, repairs, or like‐for‐like replacements
Typical Applications:
Securing the air cleaner case, carburettor, and associated intake components on Honda GX100‐series engines used in compact construction tools, pumps, generators, and garden machinery. Ideal when refurbishing the intake system, replacing damaged fixings, or curing vibration‐related loosening.
Also known as:
Flange screw, hex flange bolt, M5 x 77 fixing, engine bolt, intake mounting bolt, carburettor bolt, air filter housing bolt, fastening screw.
Fits Models:
GX100, GX100U
Alternate Part Numbers:
90004-Z0D-000, 90004Z0D000
Product Specifications
| L&S Part No. | 90004 Z0D 000 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Honda |
| OEM No. | 90004Z0D000 |
| Unit of Sale | 1 |
| Size | 5 x 77mm |
| Applications | GX100, GX100U |
| Machine Type | Engines |
| Fits Brands | Honda |
| Fits Models | GX100 (GCANM) | GX100U (GCAGK) |
