Description
Overview:

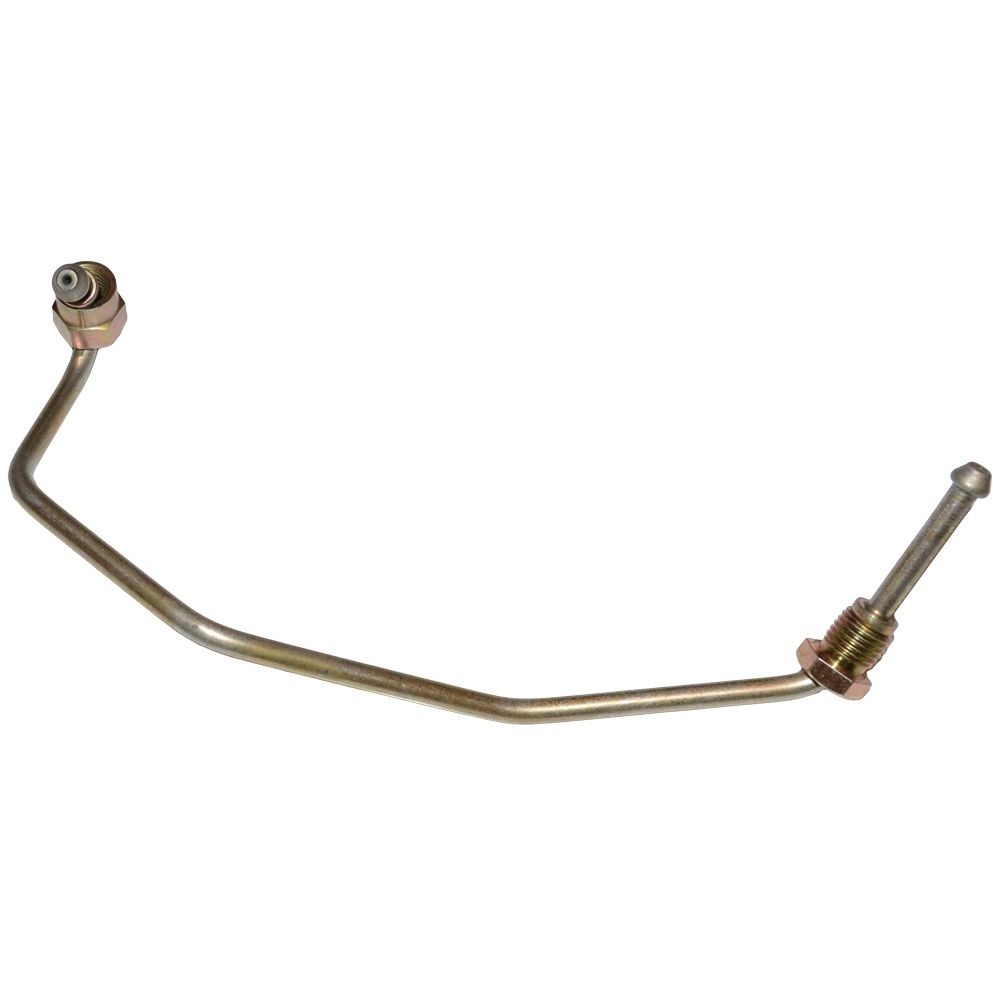

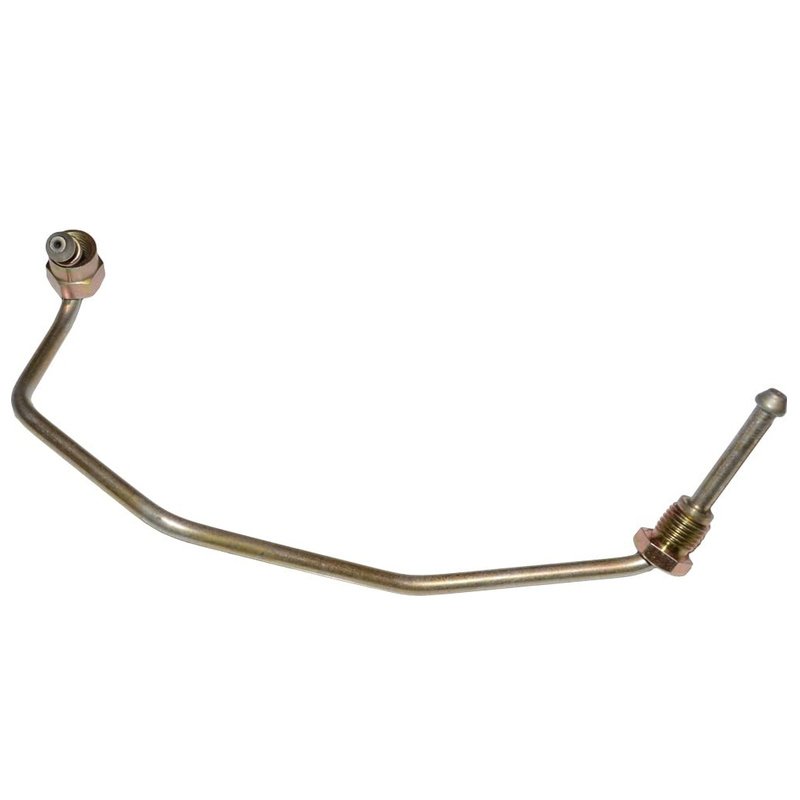

The Fuel Injection Pipe is a rigid, pre-bent steel line that carries high‐pressure diesel from the injection pump to the injector on small single‐cylinder engines. Built for Yanmar applications, it is a cost‐effective, non‐genuine replacement for OEM No. 114680-59800 and matches the layout used on popular models such as the Yanmar L75 and L100. The pipe features precision‐formed bends and threaded ends to achieve a correct, leak‐free seal. The distance between pipe ends is 271 mm (10.67 inches), helping ensure proper routing and fit. Supplied under MPN 320 110, it is suitable for restoring consistent fuel delivery, starting performance, and engine efficiency in site equipment, garden machinery, and compact plant powered by these engines. Non‐genuine replacement part.
Key Features:
- Non‐genuine replacement for OEM 114680-59800, offering strong value without compromising function
- Rigid steel construction for durability under high pressure and vibration
- Precision pre‐bent routing; 271 mm (10.67 inches) end‐to‐end for accurate fit
- Threaded ends designed to seat securely for a reliable, leak‐resistant connection
- Supports consistent injection timing and smooth idle/running
- Suited to Yanmar L75, L90, L100 applications and compatible derivatives including 186F and L90AE
- Helps restore starting, throttle response, and fuel efficiency after a damaged or corroded line
- Corrosion‐resistant finish for long service life in outdoor and site conditions
- Straightforward like‐for‐like swap for worn pipes; final tightening and bleed per engine spec recommended
Typical Applications:
Used on small diesel equipment powered by Yanmar L‐series engines, including generators, plate compactors, water pumps, mixers, tillers, pressure washers, and other light plant. Ideal when an original fuel line is cracked, corroded, or leaking, to restore safe, consistent high‐pressure fuel delivery between the pump and injector and maintain reliable day‐to‐day operation.
Also known as:
Fuel injector line, injection pipe, high‐pressure diesel line, pump‐to‐injector pipe, injector feed pipe, diesel injection tube, HP fuel pipe, diesel pump line.
Fits Models:
186F, L100, L75, L90, L90AE
Product Specifications
| L&S Part No. | 320 110 |
|---|---|
| Unit of Sale | 1 |
| Machine Type | Engines |
| Fits Brands | Chinese, Yanmar |
| Key Features | - Non-genuine replacement for OEM 114680-59800 - Rigid steel construction for high pressure durability - Precision pre-bent; 271 mm end-to-end for accurate fit - Threaded ends ensure leak-resistant connection - Compatible with Yanmar L75, L90, L100 models |
| Fits Models | L90AE |
