Description
Overview:

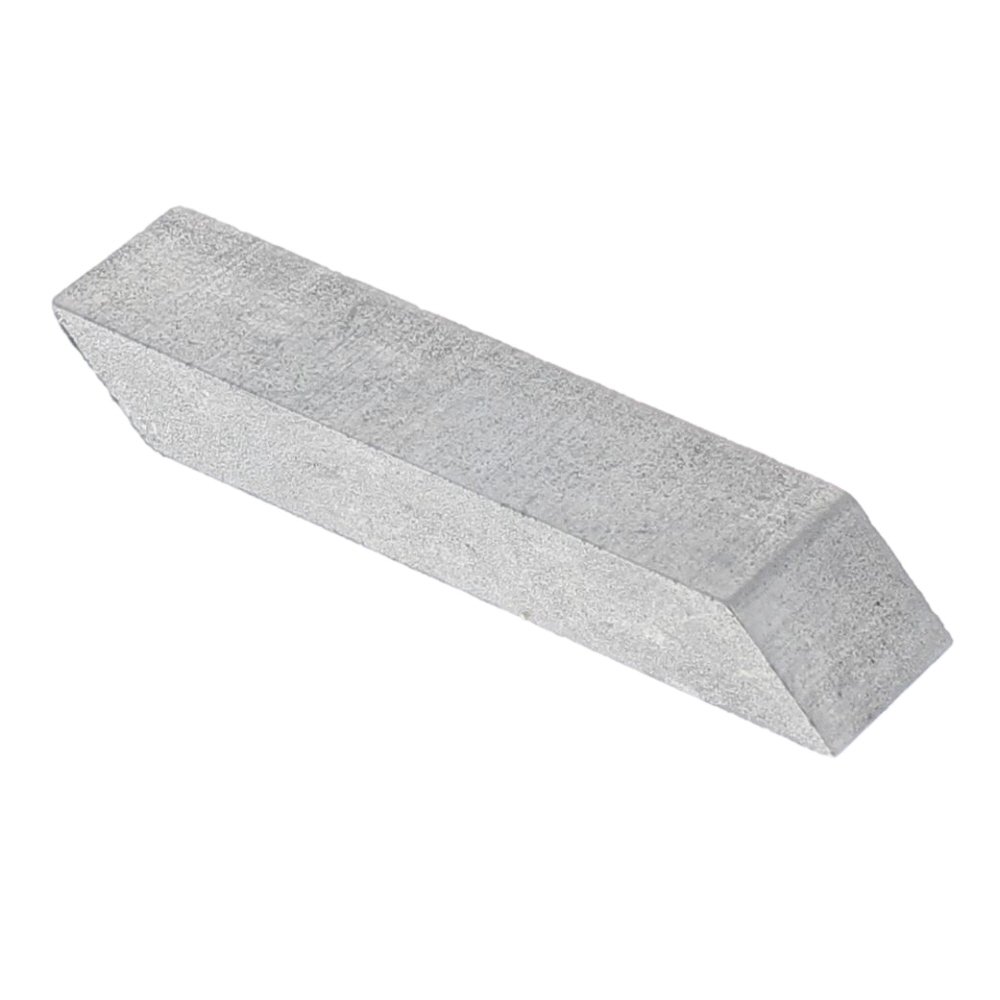

The Guide Block At 45 BS1310 is a genuine DeWalt replacement part designed to keep your machine's guide mechanism accurate and stable. It sits within the tool's guidance assembly to control movement and maintain alignment at a fixed 45° where specified, helping the machine deliver consistent results. Manufactured from durable, wear‐resistant material, it withstands regular workshop use and abrasive environments. This part is suitable for selected DeWalt and Black & Decker machines, including the BS1310 and DW3401, and is a direct like‐for‐like replacement for OEM No. 863797-00. As a genuine part, it matches original dimensions and tolerances for a dependable fit and reliable performance. Ideal for routine maintenance or restoring accuracy after wear, it helps reduce play in the mechanism and supports smoother, more precise operation.
Key Features:
- Genuine Part: DeWalt OEM 863797-00 for assured compatibility and fit
- Built from tough, wear‐resistant material for long service life
- Maintains alignment and guidance at 45° for consistent accuracy
- Helps minimise play and misalignment within the guide assembly
- Direct replacement with no modifications required
- Quick to fit using standard hand tools, reducing downtime
- Engineered to OEM tolerances for repeatable performance
- Suitable for selected DeWalt and Black & Decker machines
- Supports cleaner, more controlled operation across compatible tools
- Reliable choice for preventative maintenance and repairs
Typical Applications:
Used during servicing or repair to replace a worn guide block and restore factory alignment. Suitable for workshops, sites, and maintenance teams needing consistent accuracy on compatible stationary or bench‐top machinery. Ideal for routine upkeep to keep cutting, sanding, or guiding actions stable and predictable.
Also known as:
Guide block, 45-degree guide block, alignment block, guide insert, machinery guide, support block, OEM guide component.
Fits Models:
BS1310----A, DW3401, DW3403, DW3501, DW3503, DW731, DW738, DW739
Product Specifications
| L&S Part No. | 863797-00 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | DeWalt/Black and Decker |
| OEM No. | 863797-00 |
| Unit of Sale | 1 |
| Applications | BS1310----A, DW3401, DW3403, DW3501, DW3503, DW731, DW738, DW739 |
| Machine Type | Sanders |
| Fits Brands | Black & Decker, DeWalt |
| Fits Models | BS1310----A Type 1 | DW3401 Type 1 | DW3403 Type 1 | DW3501 Type 1 | DW3503 Type 1 | DW731 Type 1 | DW738 Type 1 | DW738 Type 2 | DW738 Type 3 | DW739 Type 1 | DW739 Type 2 | DW739 Type 3 |
