Description
Overview:

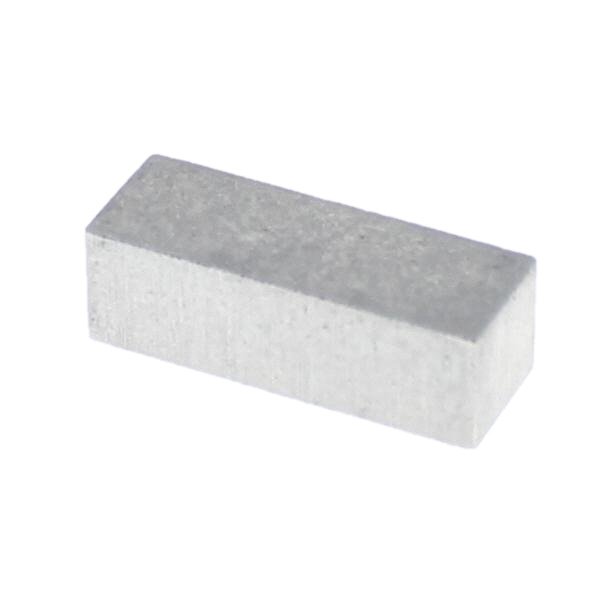

The Guide Block at 90 (BS1310) is a genuine DeWalt/Black & Decker service part designed to keep critical assemblies square and running true. Supplied as OEM No. 863796-00, it provides firm, repeatable support at a 90-degree reference, helping maintain alignment and accuracy in compatible machines. Its durable build is engineered for long service life in workshop and site environments. The part is a direct-fit replacement on selected models, promoting consistent performance and reducing unwanted movement or drift as components wear. Suitable for a range of legacy DeWalt and Black & Decker machines, including DW3401 and DW3403, it is a practical fix during routine maintenance or refurbishment where precision and stability are required. This is a Genuine Part for reliable compatibility and quality.
Key Features:
- Genuine DeWalt part for assured compatibility and quality (OEM 863796-00)
- Provides stable 90-degree support to help maintain alignment and accuracy
- Durable construction for reliable, long-term performance in workshop conditions
- Direct-fit replacement on listed models to simplify maintenance
- Helps reduce play and misalignment caused by wear over time
- Straightforward to install, minimising downtime
- Suitable for use across selected DeWalt and Black & Decker machines
- Supports consistent operation where precise positioning is required
Typical Applications:
Used during routine servicing or repairs to restore firm, square guidance of moving parts in compatible machines. Ideal where accurate alignment is critical for smooth operation, helping maintain consistent results across tasks in carpentry, fabrication, and general workshop use.
Also known as:
Guide block, alignment block, 90-degree guide, 90° alignment block, support block, locator block.
Fits Models:
BS1310----A, DW3401, DW3403, DW3501, DW3503, DW731, DW738, DW739
Product Specifications
| L&S Part No. | 863796-00 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | DeWalt/Black and Decker |
| OEM No. | 863796-00 |
| Unit of Sale | 1 |
| Applications | BS1310----A, DW3401, DW3403, DW3501, DW3503, DW731, DW738, DW739 |
| Machine Type | Sanders |
| Fits Brands | Black & Decker, DeWalt |
| Fits Models | BS1310----A Type 1 | DW3401 Type 1 | DW3403 Type 1 | DW3501 Type 1 | DW3503 Type 1 | DW731 Type 1 | DW738 Type 1 | DW738 Type 2 | DW738 Type 3 | DW739 Type 1 | DW739 Type 2 | DW739 Type 3 |
