Description
Overview:

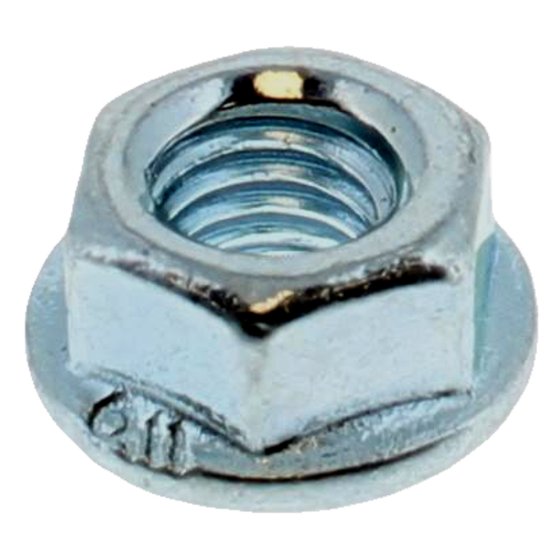

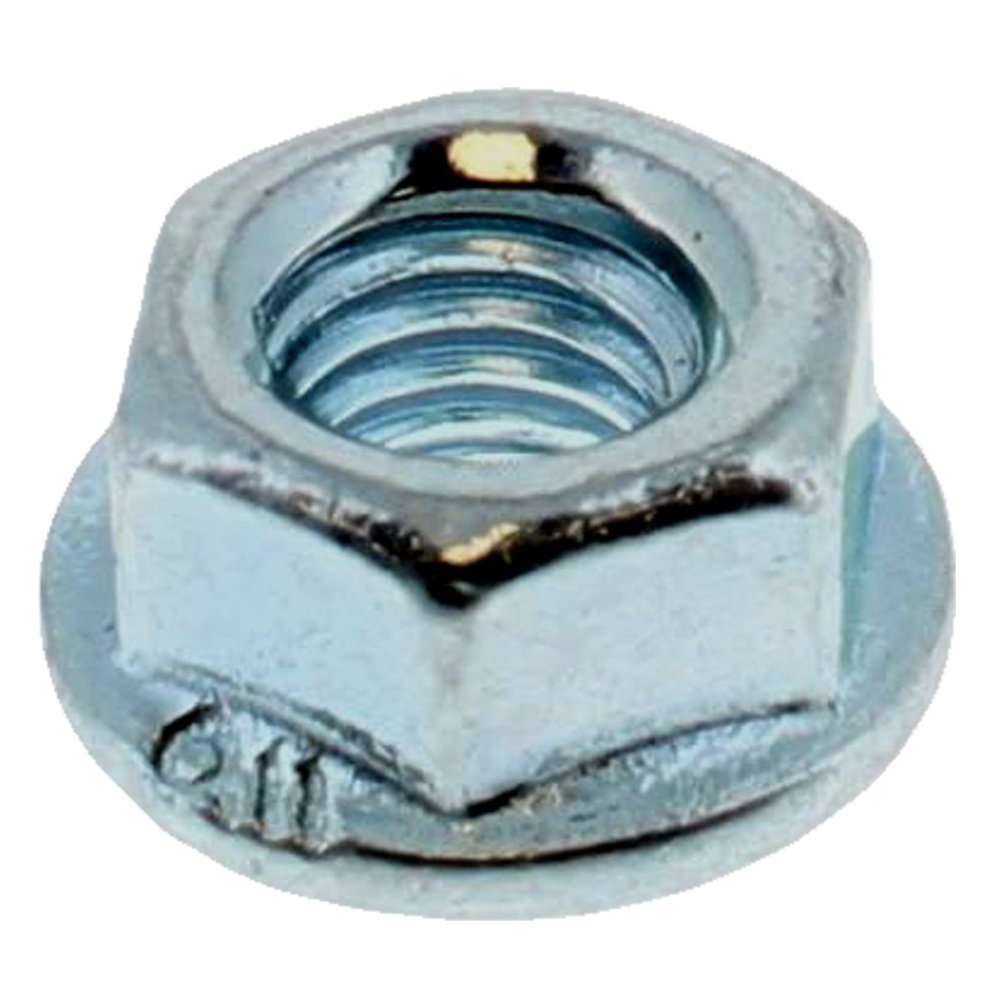

This Hexagon Nut Flange is a genuine Husqvarna fastener engineered for the 520/536 series cordless hedge trimmers. Built from tough steel with a corrosion-resistant finish, it provides a strong clamp and a wide bearing surface to spread the load and protect housings and brackets. The flanged face helps keep components secure under vibration, supporting reliable operation and consistent cut quality. It is ideal for routine maintenance and repairs on models such as the 520iHD70 and 536LiHD60X, giving a dependable fit where a flanged hex nut is specified by the manufacturer. As a Genuine Part, it matches original specifications for thread, flange diameter, and seat geometry, helping to maintain the safety, performance, and longevity of your Husqvarna hedge trimmer.
Key Features:
- Genuine Husqvarna part for assured compatibility and quality
- Durable steel construction with corrosion-resistant finish for long service life
- Flanged face distributes pressure to reduce risk of loosening and damage to components
- Precision fit for correct thread engagement and reliable torque retention
- Resists vibration common in hedge trimmer use, helping keep assemblies tight
- Supports safe operation by maintaining secure fastening of guards, covers, and brackets
- Easy to install with standard hand tools (spanner or socket), minimising downtime
- Suitable for planned maintenance and straightforward like-for-like replacement
- Helps preserve equipment integrity and reduce premature wear on mating parts
Typical Applications:
Used to secure trimmer components such as covers, guards, handle brackets, and mounting points where a flanged nut is specified. Suitable for vibration-prone fixings on Husqvarna 520/536 series cordless hedge trimmers, including workshop repairs, field replacements, and preventative maintenance to keep machines operating safely and efficiently.
Also known as:
Hex flanged nut, flanged hex nut, hexagon flanged nut, hex nut with washer face, flange fastening nut.
Fits Models:
520iHD60, 520iHD70, 520iHE3, 520iHT4, 536LiHD60X, 536LiHD70X, 536LiHE3
Alternate Part Numbers:
503 22 00-09, 503220009
Product Specifications
| L&S Part No. | 503 22 00 09 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Husqvarna |
| OEM No. | 503220009 |
| Unit of Sale | 1 |
| Applications | 520iHD60, 520iHD70, 520iHE3, 520iHT4, 536LiHD60X, 536LiHD70X, 536LiHE3 |
| Machine Type | Cordless Hedgetrimmers |
| Fits Brands | Husqvarna |
| Fits Models | 536LiHD60X | 536LiHD70X | 536LiHE3 | 520iHE3 | 520iHT4 | 520iHD60 |
