Description
Overview:

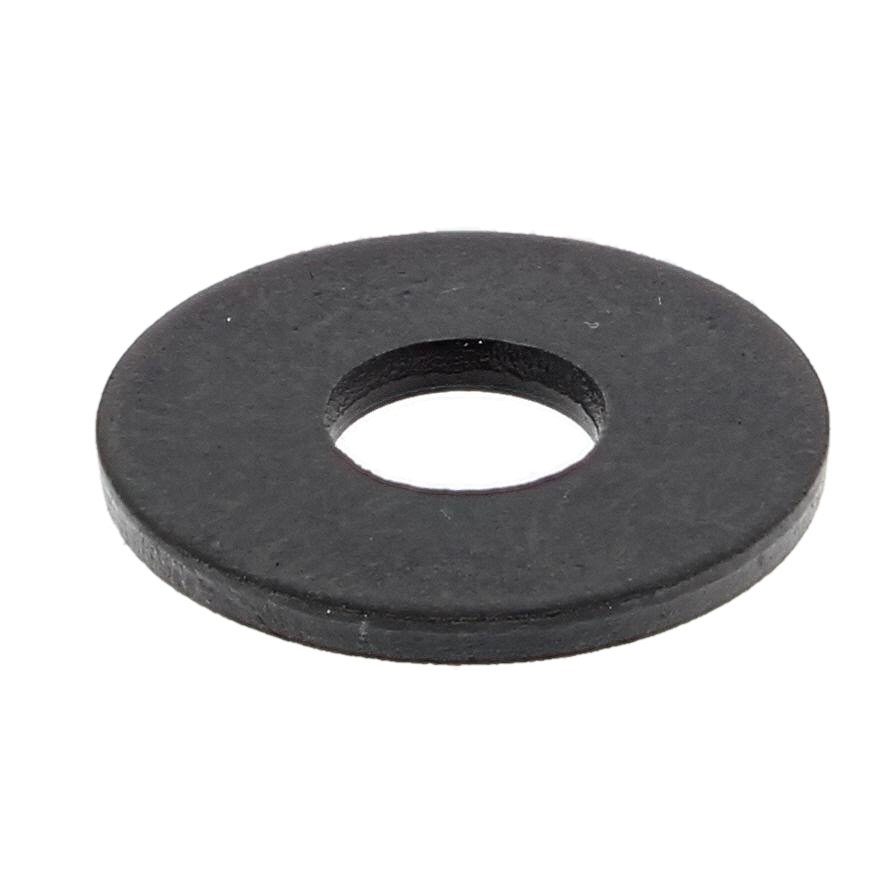

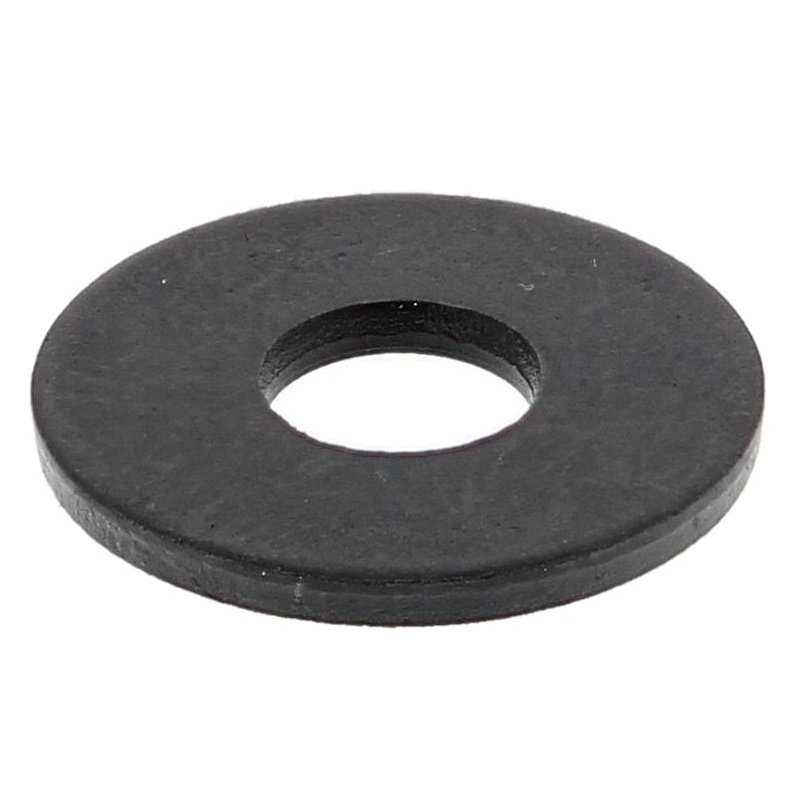

This Husqvarna washer (reference 503 23 00 24 / 503230024) is a small but important fastener component used across a range of Husqvarna petrol and battery machines, including the 394XP chainsaw and 250PS. Made from robust, corrosion‐resistant steel with a smooth, flat profile, it distributes load evenly under bolt or nut heads and helps maintain a tight, reliable joint. In assemblies where vibration is constant, the washer supports consistent clamping force to reduce movement, wear and the risk of leaks at sealing points. Suitable for routine servicing and repairs, it is a straightforward, like‐for‐like replacement that helps keep your saws and hedge trimmers working efficiently and safely in demanding conditions.
Key Features:
- Durable steel construction for long service life in high‐vibration environments
- Flat profile for even load distribution and a secure, tight fit
- Helps maintain seals and reduce the chance of oil or fuel weep under fasteners
- Corrosion‐resistant finish for reliable performance outdoors and in damp conditions
- Accurate fitment for Husqvarna assemblies to support correct spacing and alignment
- Simple to install with basic hand tools, suitable for workshop or on‐site maintenance
- Supports consistent clamping force to minimise loosening during operation
- Suitable for both professional users and DIY maintenance
Typical Applications:
Used wherever a bolt, screw, or nut secures components on Husqvarna chainsaws and hedge trimmers. Typical locations include engine covers, handle mounts, guards, and other assemblies where spacing, alignment, and sealing integrity are important. Helps maintain reliable joints and reduce vibration‐related loosening during regular use.
Also known as:
Flat washer, shim, sealing ring, mounting washer, gasket washer, spacer ring, retaining washer.
Fits Models:
225 AI 15, 225 AI 25, 225AI15, 225AI25, 250PS, 323HD60, 324HDA55 X-Series, 325HD75 X-Series, 325HDA55 X-Series, 325HDA65 X-Series, 325HE3, 325HE3 X-Series, 325HE4 X-Series, 325HS75 X-Series, 325HS99 X-Series, 326 AI 25, 326 HD75 X-Series, 326 HDA55 X-Series, 326AI25, 326HD60 X-Series, 326HD75 X-Series, 326HDA55 X-Series, 326HE3 X-Series, 326HE4 X-Series, 326HS75 X-Series, 326HS99 X-Series, 327HE3 X-Series, 327HE4 X-Series, 394XP, 520iHD60, 520iHE3, 520iHT4, 536LiHD60X, 536LiHD70X, 536LiHE3, HA110, HA850
Alternate Part Numbers:
503 23 00-24, 503230024
Product Specifications
| L&S Part No. | 503 23 00 24 |
|---|---|
| Manufacturer | Husqvarna |
| OEM No. | 503230024 |
| Unit of Sale | 1 |
| Applications | 225 AI 15, 225 AI 25, 225AI15, 225AI25, 250PS, 323HD60, 324HDA55 X-Series, 325HD75 X-Series, 325HDA55 X-Series, 325HDA65 X-Series, 325HE3, 325HE3 X-Series, 325HE4 X-Series, 325HS75 X-Series, 325HS99 X-Series, 326 AI 25, 326 HD75 X-Series, 326 HDA55 X-Series, 326AI25, 326HD60 X-Series, 326HD75 X-Series, 326HDA55 X-Series, 326HE3 X-Series, 326HE4 X-Series, 326HS75 X-Series, 326HS99 X-Series, 327HE3 X-Series, 327HE4 X-Series, 394XP, 520iHD60, 520iHE3, 520iHT4, 536LiHD60X, 536LiHD70X, 536LiHE3, HA110, HA850 |
| Machine Type | Chainsaws, Hedgetrimmers |
| Fits Brands | Husqvarna |
| Fits Models | 323HD60 | 324HDA55 X-SERIES | 325HD75 X-SERIES | 325HDA55 X-SERIES | 325HDA65 X-SERIES | 325HE3 | 325HE3 X-SERIES | 325HE4 X-SERIES | 325HS75 X-SERIES | 325HS99 X-SERIES | 326HD60 X-SERIES | 326 HD75 X-SERIES | 326 HDA55 X-SERIES | 326HE3 X-SERIES | 326HE4 X-SERIES | 326HS75 X-SERIES | 326HS99 X-SERIES | 327HE3 X-SERIES | 327HE4 X-SERIES | 536LiHD60X | 536LiHD70X | 536LiHE3 | 250PS | 250PS | 394XP | 225 AI 25 | 225 AI 15 | 326 AI 25 | 520iHE3 | 520iHT4 | 520iHD60 | HA110 | HA850 |
