Description
Overview:

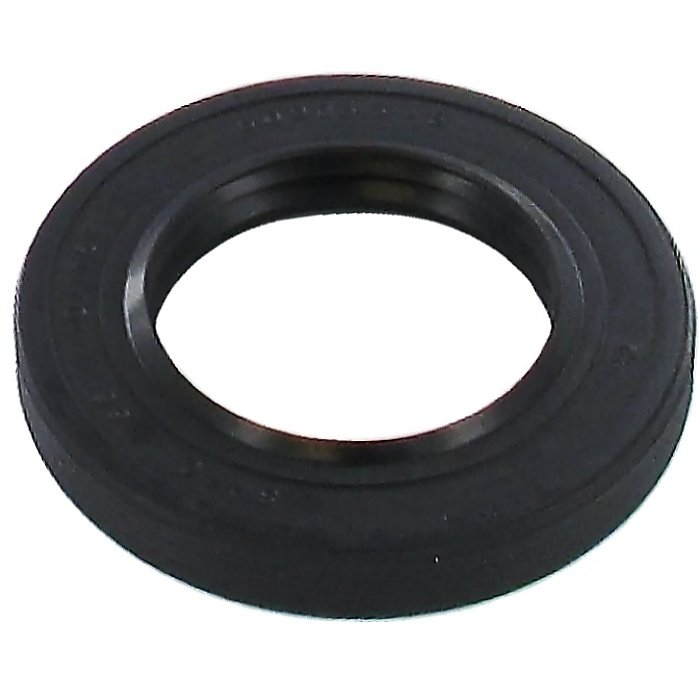

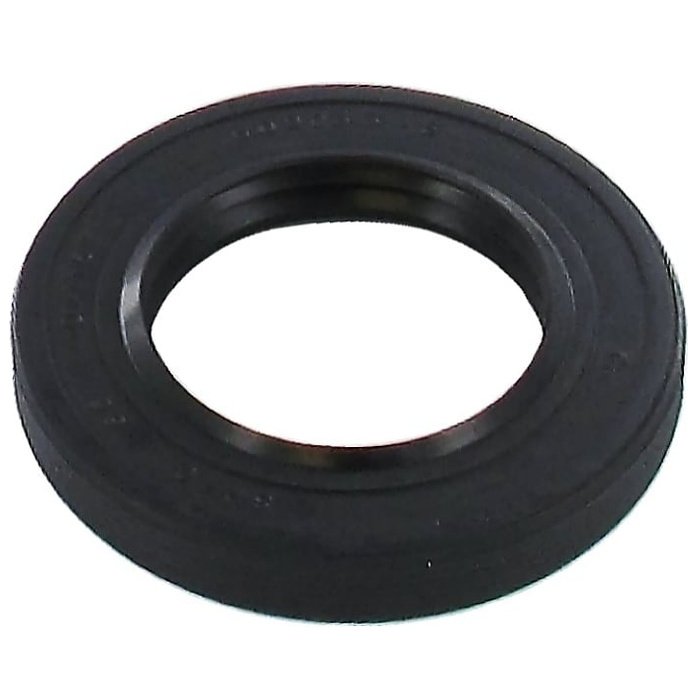

The Oil Seal (Flywheel Side) for Honda GX110 and GX120 engines is a genuine Honda component that seals the crankshaft at the flywheel end. It is made from oil‐resistant elastomer with a steel‐reinforced case and a spring‐loaded lip to maintain a tight seal under heat and vibration. By preventing oil from entering the flywheel housing, it helps protect ignition components and keeps crankcase pressure stable for reliable running. This seal is a direct‐fit service part for small petrol equipment powered by GX110 or GX120 engines, including HRD535 lawnmowers and WB20 water pumps. It replaces worn or hardened seals that can cause drips, oil mist, and contamination, restoring proper sealing performance without modification.
Key Features:
- Genuine Honda part for assured compatibility with GX110 and GX120 engines
- Designed specifically for the flywheel‐side crankshaft position
- Oil‐ and temperature‐resistant rubber with metal reinforcement for durability
- Spring‐loaded lip maintains sealing as the shaft rotates
- Helps prevent leaks, oil mist, and dirt ingress at the flywheel end
- Protects flywheel, stator, and electrics from oil contamination
- Correct dimensions to Honda OEM reference 91202‐ZE6‐003
- Secure interference fit in the crankcase bore
- Direct replacement; typically no machining or special tools required
- Suitable for leak repairs, engine overhauls, and preventative maintenance
Typical Applications:
Used during servicing or rebuilds of Honda GX110 and GX120 engines found on lawnmowers (such as HRD535 variants), water pumps (WB20XT), and other compact equipment. Fit this seal when addressing oil leaks from the flywheel housing, after crankshaft or bearing work, or as part of routine maintenance to maintain engine efficiency and reduce contamination.
Also known as:
Radial shaft seal, rotary oil seal, crank end seal (flywheel side), front crankshaft seal, shaft lip seal, engine crank oil seal (flywheel side).
Fits Models:
GX110, GX120, HRD535 HXE, HRD535 QME, HRD535 QXE, HRD535 SME, HRD535 SXE, WB20XT
Alternate Part Numbers:
91202-ZE6-003, 91202 ZE6 013, 91202ZE6003, 91202ZE6013
Product Specifications
| L&S Part No. | 91202 ZE6 003 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Honda |
| OEM No. | 91202ZE6013 |
| Unit of Sale | 1 |
| Applications | GX110, GX120, HRD535 HXE, HRD535 QME, HRD535 QXE, HRD535 SME, HRD535 SXE, HRD535HXE, HRD535QME, HRD535QXE, HRD535SME, HRD535SXE, WB20XT |
| Machine Type | Engines |
| Fits Brands | Honda |
| Fits Models | GX110 | WB20XT | HRD535 HXE | HRD535 QME | HRD535 QXE | HRD535 SME | HRD535 SXE |
