Description
Overview:

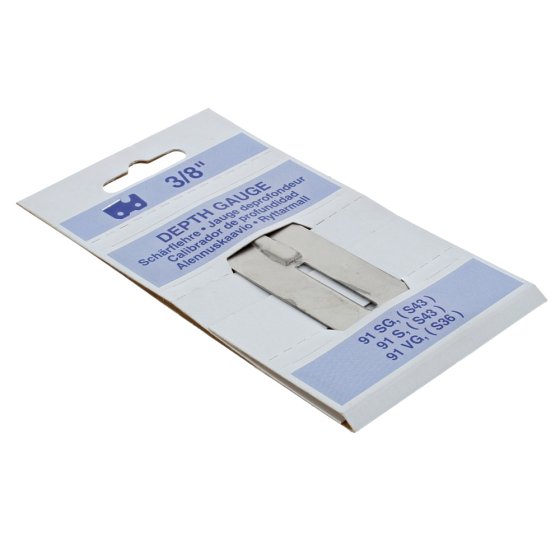

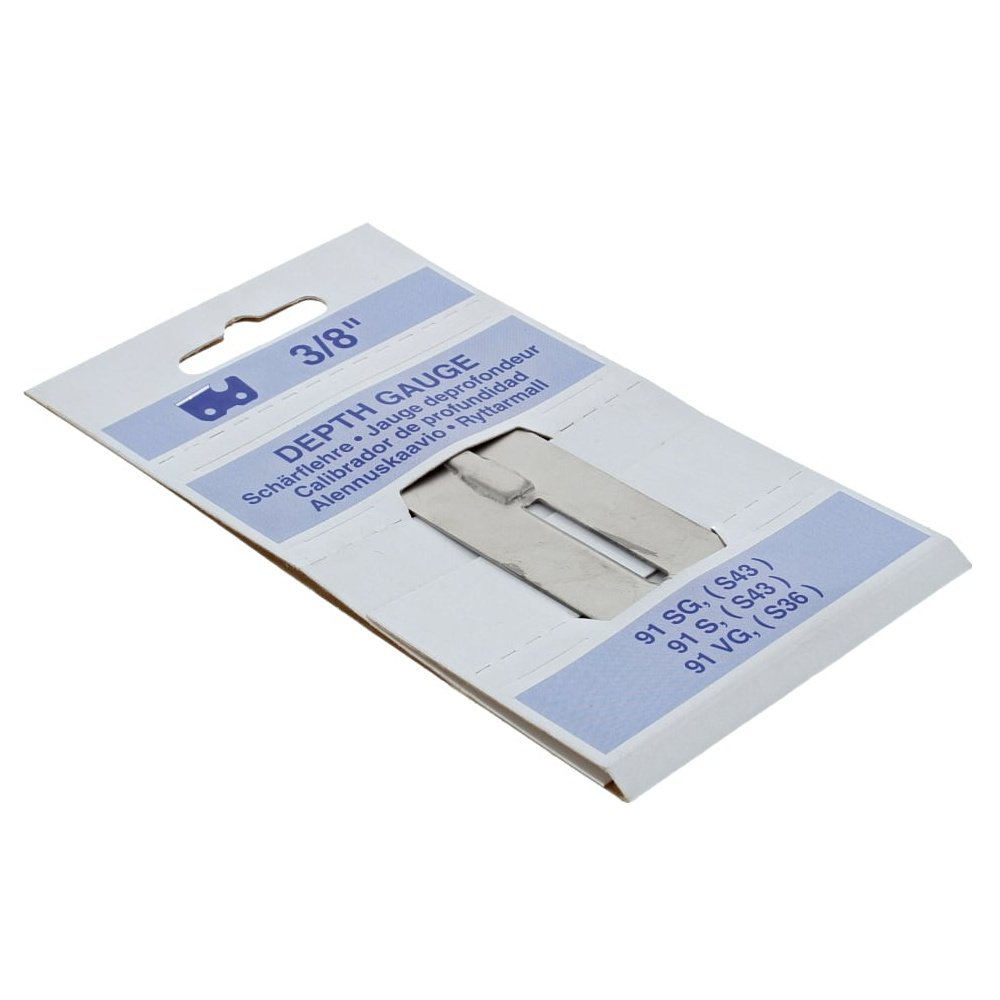

The Husqvarna Chain Depth Gauge for 3/8" mini chain is a genuine Husqvarna maintenance tool designed to set the raker (depth) height accurately on small-pitch chains. Made from durable metal with clear, easy-to-read markings, it helps keep your chain cutting at the correct depth, improving performance and reducing kickback risk. Optimised for 3/8" mini pitch (9.53 mm), it suits a wide range of compact petrol and battery chainsaws that use this chain size, including popular models such as the Husqvarna 120i and 130. Compact and robust, it is suitable for workshop use or to carry on site, supporting consistent sharpening results and extending chain life. OEM reference: 505 69 81-03.
Key Features:
- Genuine Husqvarna part for reliable fit and function
- Designed for 3/8" mini (9.53 mm) chains to ensure correct raker height
- Durable metal construction for long service life
- Clear guidance surfaces and markings for repeatable results
- Helps maintain smooth cutting, reduced vibration, and controlled feed rate
- Supports safer operation by helping limit excessive bite and kickback risk
- Easy to use alongside a standard flat file during routine sharpening
- Compact and lightweight for on‐site or workshop maintenance
- Suitable for professional users, grounds teams, and DIY owners
- OEM number printed for quick identification in tool kits
Typical Applications:
Setting and checking raker (depth) height after sharpening chains fitted to chainsaws using 3/8" mini pitch. Ideal for routine maintenance of pruning, landscaping, grounds care, and light forestry saws, helping keep cutting performance consistent when processing firewood, trimming branches, or general property and site maintenance.
Also known as:
Raker gauge, depth setting tool, filing gauge, raker height gauge, chain depth tool, 3/8 mini depth gauge, chain raker tool, depth limiter gauge.
Alternate Part Numbers:
505 69 81-03, 505-69-81-03, 505698103
Product Specifications
| L&S Part No. | 505 69 81 03 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Husqvarna |
| OEM No. | 505698103 |
| Unit of Sale | 1 |
| Machine Type | Chainsaws |
| Fits Brands | Husqvarna |
