Description
Overview:

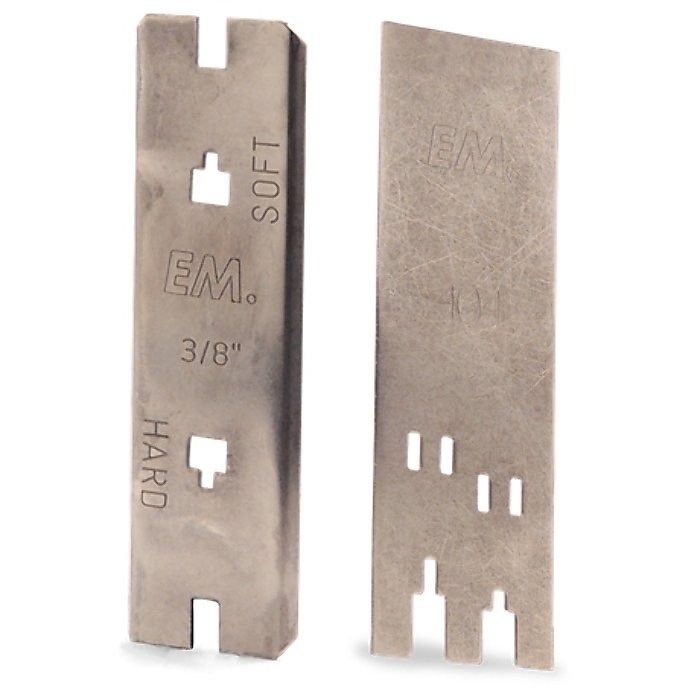

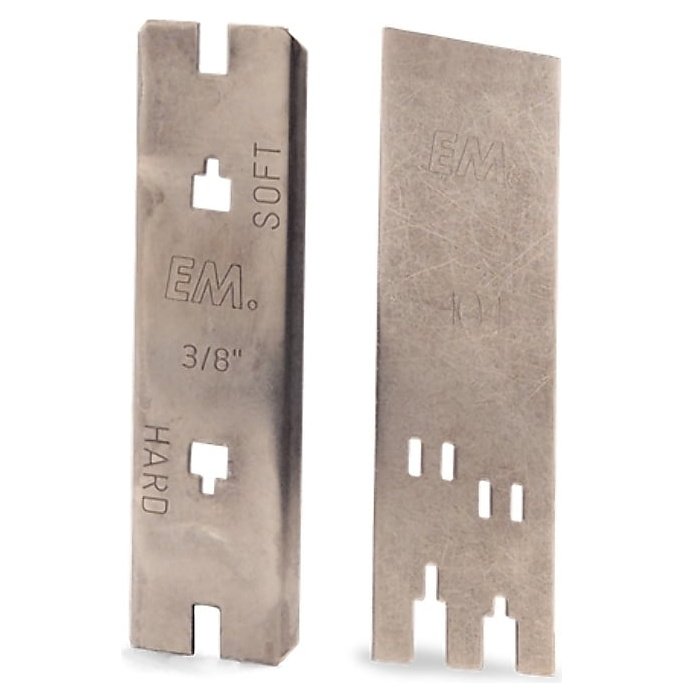

The Husqvarna Depth Gauge for .404" (10.26 mm) chainsaw chain is a durable metal tool used to set correct raker (depth limiter) height during chain maintenance. It helps you achieve the right cutting depth and filing angles for smooth, efficient cutting and reduced kickback. This genuine Husqvarna part is designed for the H64 Micro Chisel .404 1.6 mm chain and works best when used with Husqvarna flat files. Suitable for professional forestry work and home firewood cutting, it keeps your chain cutting cleanly, reduces strain on the saw, and supports consistent results between sharpenings. Compact and easy to carry in a tool pouch, it is a practical choice for routine maintenance on Husqvarna and other chainsaws using .404" pitch chain.
Key Features:
- Genuine Husqvarna part for reliable fit and performance
- Optimised for H64 Micro Chisel .404" (10.26 mm) 1.6 mm chains
- Sets accurate raker clearance to maintain cutting efficiency
- Supports correct filing angles when used with flat files
- Helps reduce vibration, chatter, and over-aggressive cutting
- Durable metal construction for long service life on site or in the workshop
- Simple, repeatable process for consistent sharpening results
- Compact, lightweight tool for easy carry in field kits
Typical Applications:
Used during routine chain sharpening to set raker height on .404" (10.26 mm) pitch chains. Ideal for forestry, arboriculture, estate and farm maintenance, firewood processing, and sawmill yard work. Helps maintain cutting speed, improves finish on cuts, and reduces wear on the powerhead and bar by keeping the chain within the correct operating tolerance.
Also known as:
Raker gauge, chain depth tool, chainsaw filing guide, depth setting tool, raker depth guide, cutter depth gauge, saw chain gauge, depth limiter gauge, chain raker guide.
Alternate Part Numbers:
505 69 81-02, 505698102
Product Specifications
| L&S Part No. | 505 69 81 02 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Husqvarna |
| OEM No. | 505698102 |
| Unit of Sale | 1 |
| Machine Type | Chainsaws |
| Fits Brands | Husqvarna |
