Description
Overview:

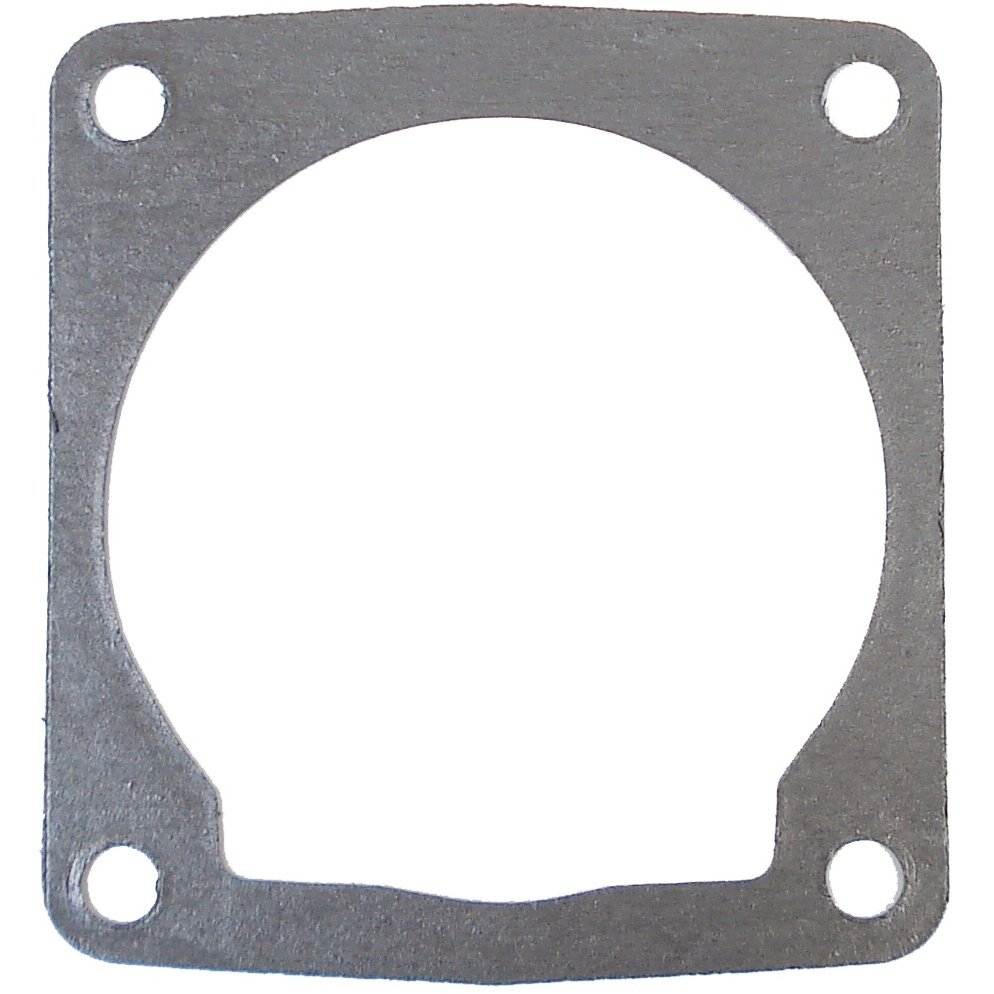

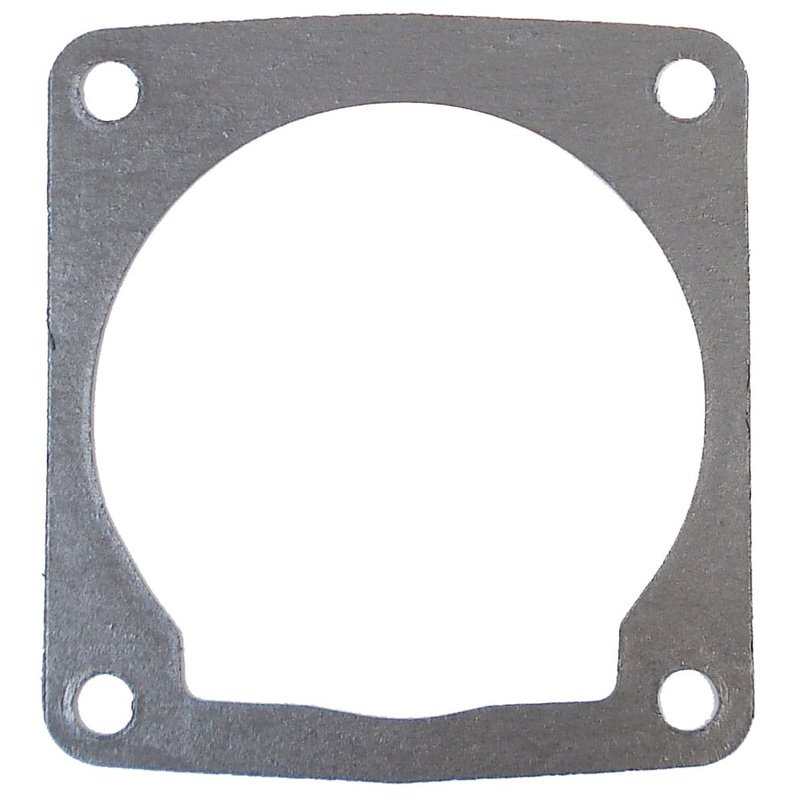

This Cylinder Base Gasket is a genuine Husqvarna/Partner part for professional petrol saws and cutters, including the K1250 and 3120 ranges. It sits between the cylinder and crankcase to create a tight, stable seal that maintains correct compression and prevents air, fuel, and oil leaks. Made from durable, heat- and fuel‐resistant gasket material, it is built to handle high engine temperatures and vibration. Using the correct base gasket helps the engine start reliably, idle cleanly, and deliver full power under load. Supplied to OEM specification with part numbers 503 13 46 01 and 503134601, it offers an accurate fit with no trimming required, supporting consistent performance and long service life in demanding cutting and forestry work.
Key Features:
- Genuine Husqvarna/Partner part for precise fit and reliable sealing
- OEM numbers: 503 13 46 01 / 503134601 for correct identification
- Durable composite gasket material resists heat, fuel, and oil
- Helps restore and maintain correct engine compression
- Prevents base leaks that can cause poor running or seizure
- Stable under vibration; maintains clamping force over time
- Clean cut-outs and bolt holes for straightforward fitting
- Compatible with select K1250/K1260 cutters and 3120-series saws
- Supports smooth idling, strong power delivery, and easier starting
- Suitable for routine rebuilds or targeted leak repairs
Typical Applications:
Used during top-end rebuilds, piston and cylinder replacements, and repairs to cure air or oil leaks at the cylinder base. Ideal for maintaining performance and reliability on heavy-duty cut-off saws and large-capacity chainsaws working in construction, rail cutting, demolition, forestry, and site maintenance.
Also known as:
Engine gasket, cylinder gasket, base gasket, cylinder-to-crankcase gasket, barrel base gasket, cylinder base seal. These terms refer to the same sealing component fitted between the cylinder block and crankcase on two-stroke engines.
Fits Models:
3120, 3120K, 3120XP, 3122K, K1250, K1250 Active, K1250 Rail, K1260, K1260 Rail, K1250Active, K1250Rail, K1260Rail
Product Specifications
| L&S Part No. | 503 13 46 01 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Husqvarna |
| OEM No. | 503134601 |
| Unit of Sale | 1 |
| Applications | 3120, 3120K, 3120XP, 3122K, K1250, K1250 Active, K1250 Rail, K1250Active, K1250Rail, K1260, K1260 Rail, K1260Rail |
| Machine Type | Disc Cutters |
| Fits Brands | Husqvarna |
| Fits Models | K1250 | K1260 | 3122K | K1250 Active | K1250 Rail | K1260 Rail | 3120 | 3120XP | 3120K |
