Description
Overview:
This hydraulic filter is a direct replacement for Kubota reference 69481-62210, used on many Kubota mini excavators including the KX61 and KX91. Built as a robust spin‐on steel canister with a durable painted finish, it protects the hydraulic circuit by trapping wear particles and contaminants in the oil. Correct filtration helps maintain smooth operation of pumps, valves and actuators, especially in demanding site conditions. Key dimensions are Height 140 mm, Outer Diameter 84 mm, and Inner Diameter 45.6 mm. The mounting thread is 1 1/2 BSP (approximately 38.1 mm nominal), allowing straightforward installation to compatible filter heads. Suited to regular servicing or remedial maintenance, this filter supports consistent machine performance and component life across a wide range of Kubota compact excavators.
Key Features:
- Durable spin‐on steel canister for site use and frequent servicing
- High-efficiency media to capture fine particles and extend oil life

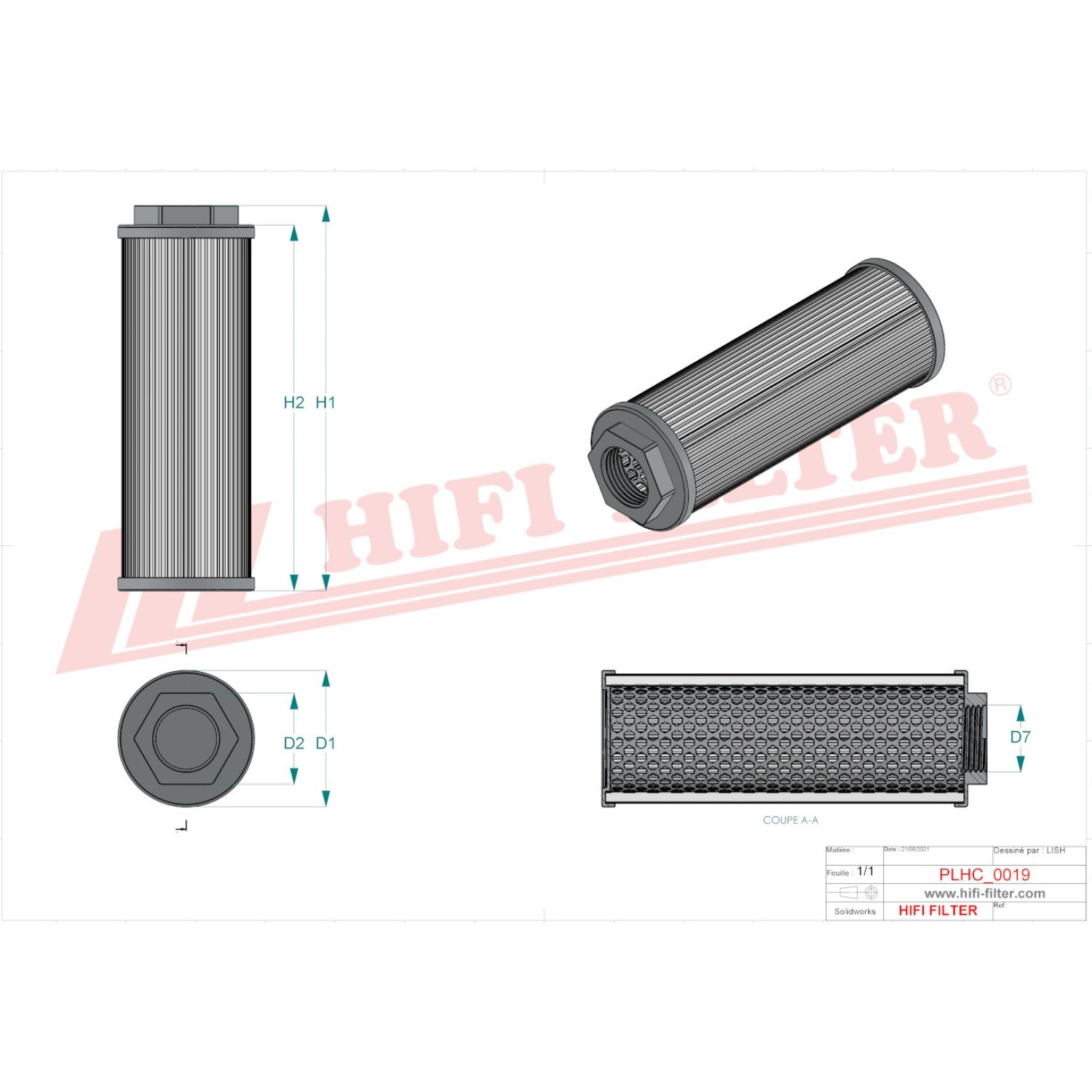

- Dimensions: Height 140 mm; Outer Diameter 84 mm; Inner Diameter 45.6 mm
- 1 1/2 BSP thread (approx. 38.1 mm nominal) for a secure, leak-resistant fit
- Reliable replacement for Kubota 69481-62210 across many mini excavator models
- Helps protect pumps, valves and cylinders by reducing abrasive wear
- Stable performance under varied temperatures and duty cycles
- Easy to fit and remove with standard strap or cup wrenches
- Supports planned maintenance intervals and reduces unplanned downtime
- Suitable for use with typical hydraulic oils used in construction machinery
Typical Applications:
Used during routine hydraulic services on Kubota compact and mini excavators to keep the hydraulic oil clean and protect system components. Ideal for construction, landscaping, utilities and hire fleets where machines operate in dusty or muddy conditions and require dependable filtration.
Also known as:
Spin‐on hydraulic filter, hydraulic return filter, canister hydraulic filter, oil circuit protection filter, excavator hydraulic canister, service filter element for Kubota compact excavators.
Fits Models:
KX101, KX101-3, KX101-3 Alpha, KX101-3 Alpha 2, KX101-3Alpha, KX101-3Alpha2, KX1013, KX121, KX121-2, KX1212, KX35-3, KX353, KX61, KX61-2, KX61-2 Alpha, KX61-2Alpha, KX61-3, KX612, KX613, KX71, KX71-2, KX71-2 Alpha, KX71-2Alpha, KX71-3, KX712, KX713, KX91, KX91-2, KX91-3, KX91-3 Alpha, KX91-3 Alpha 2, KX91-3Alpha, KX91-3Alpha2, KX91-3S, KX912, KX913, KX913S, U30, U30-3 Alpha 2, U30-3Alpha2, U35, U35 Alpha, U35-3, U35-3 Alpha, U35-3 Alpha 2, U35-3Alpha, U35-3Alpha2, U353, U35Alpha, U45 Alpha, U45Alpha, GTH 4017 SX, GTH 4018 SR, TA 27, TA 45, EC 50, EW 50, EW50, GTH4017SX, GTH4018SR, TA27, TA45, EC50, KX1013ALPHA, KX1013ALPHA2, KX612ALPHA, KX712ALPHA, KX913ALPHA, KX913ALPHA2, U303ALPHA2, U35ALPHA, U353ALPHA, U353ALPHA2, U45ALPHA
Alternate Part Numbers:
FIN-FH50791, 69481-62210, RG138.62153, UC.SE.1323, UC-SE-1323, 6948162210, 69481.6221, SF HY90151, FINFH50791, SE75351210, 69481-6221, RG13862153, 694816221, SFHY90151, 32/904200, E 6050037, SF086A112, HY 18567, UCSE1323, DV-84123, WGSE1323, SH 77680, 32904200, E6050037, 6050037
Product Specifications
| L&S Part No. | LH7203 |
|---|---|
| Unit of Sale | 1 |
| Size | Size: 140 x 86 x 86mm x Thread: 1.1/2 BSP |
| Applications | KX101, KX101-3, KX101-3 Alpha, KX101-3 Alpha 2, KX101-3Alpha, KX101-3Alpha2, KX1013, KX121, KX121-2, KX1212, KX35-3, KX353, KX61, KX61-2, KX61-2 Alpha, KX61-2Alpha, KX61-3, KX612, KX613, KX71, KX71-2, KX71-2 Alpha, KX71-2Alpha, KX71-3, KX712, KX713, KX91, KX91-2, KX91-3, KX91-3 Alpha, KX91-3 Alpha 2, KX91-3Alpha, KX91-3Alpha2, KX91-3S, KX912, KX913, KX913S, U30, U30-3 Alpha 2, U30-3Alpha2, U35, U35 Alpha, U35-3, U35-3 Alpha, U35-3 Alpha 2, U35-3Alpha, U35-3Alpha2, U353, U35Alpha, U45 Alpha, U45Alpha, GTH 4017 SX, GTH 4018 SR, TA 27, TA 45, EC 50, EW 50, EW50, GTH4017SX, GTH4018SR, TA27, TA45, EC50, KX1013ALPHA, KX1013ALPHA2, KX612ALPHA, KX712ALPHA, KX913ALPHA, KX913ALPHA2, U303ALPHA2, U35ALPHA, U353ALPHA, U353ALPHA2, U45ALPHA |
| Machine Type | Excavators |
| Fits Brands | Genie, Terex, Volvo |
| Fits Models | KX61 | KX61-2 | KX61-3 | KX71 | KX71-2 | KX71-3 | KX91 | KX91-3 | KX101 | KX121 | KX121-2 | U30 | U35 |
