Description
Overview:

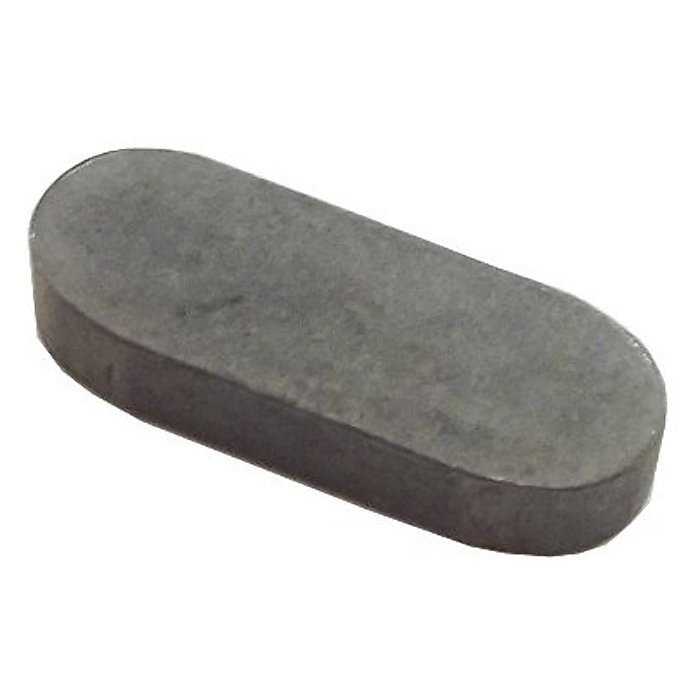

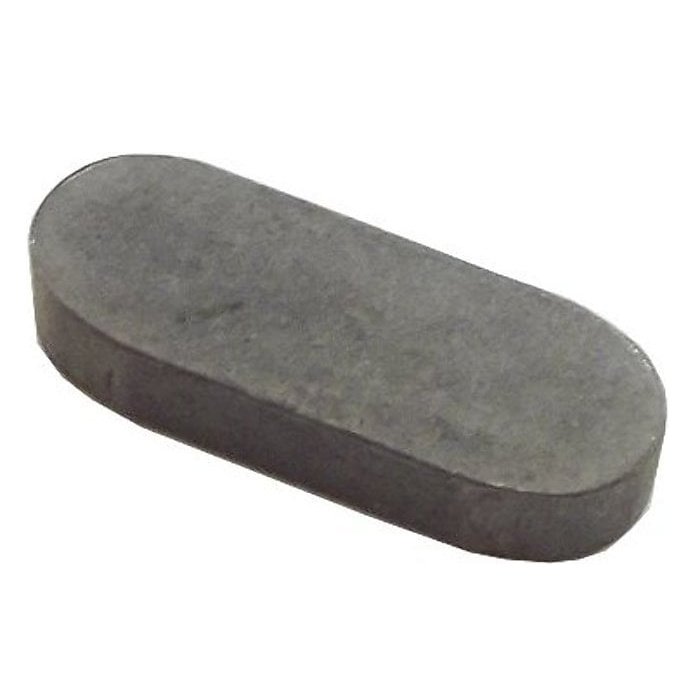

This Key 5x3x14 is a genuine Stihl OEM part designed to lock a hub to a shaft by engaging the keyways, preventing slippage and keeping drive components aligned under load. Made from durable steel, it replaces worn or missing keys to restore reliable operation. It is suitable for a wide range of Stihl machinery, including chainsaws, cut-off saws, and earth augers, such as the E30 and 041G. The nominal dimensions are 5 x 3 x 14 mm (approximately 0.20 x 0.12 x 0.55 in), matching the Stihl specification for a secure, repeatable fit. As a Genuine Part, it offers the correct profile and tolerance for the listed models, helping maintain performance and protect shafts, gears, pulleys, and clutches from damage caused by movement on the shaft.
Key Features:
- Genuine Stihl OEM part for correct fit and compatibility on listed machines
- Precisely sized: 5 x 3 x 14 mm (approx. 0.20 x 0.12 x 0.55 in)
- Robust steel construction for reliable torque transmission and wear resistance
- Helps prevent hub and shaft slippage, maintaining timing and drive alignment
- Simple to fit into the shaft keyway; no modifications required on compatible models
- Suitable for preventative maintenance or repair, ideal to keep as a spare
- Supports long service life of adjoining components by reducing fretting and movement
Typical Applications:
Used wherever a hub must be positively locked to a shaft in Stihl equipment. Typical uses include securing clutches, pulleys, gears, or similar rotating parts on chainsaws, cut-off saws, augers and power units. It restores a solid drive connection after keyway wear or key loss, helping machines start, run, and cut or drill consistently under working loads.
Also known as:
Parallel key, shaft key, feather key, drive key, keyway key, rectangular key, replacement key for hub-to-shaft connection.
Fits Models:
041, 041G, 08S, 090, 090G, BT 360, BT360, E15, E30, P835, P840, TS08, TS08S, TS350, TS350AVE, TS360
Alternate Part Numbers:
9470-435-0900, 94704350900
Product Specifications
| L&S Part No. | 9470 435 0900 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 94704350900 |
| Unit of Sale | 1 |
| Applications | 041, 041G, 08S, 090, 090G, BT 360, BT360, E15, E30, P835, P840, TS08, TS08S, TS350, TS350AVE, TS360 |
| Machine Type | Brushcutters, Chainsaws, Concrete Equipment |
| Fits Models | TS350, TS360 | 08S | TS08S, TS08 | 041 | 090, 090G | E15 | E30 | BT 360 | P835, P840 |
