Description
Overview:

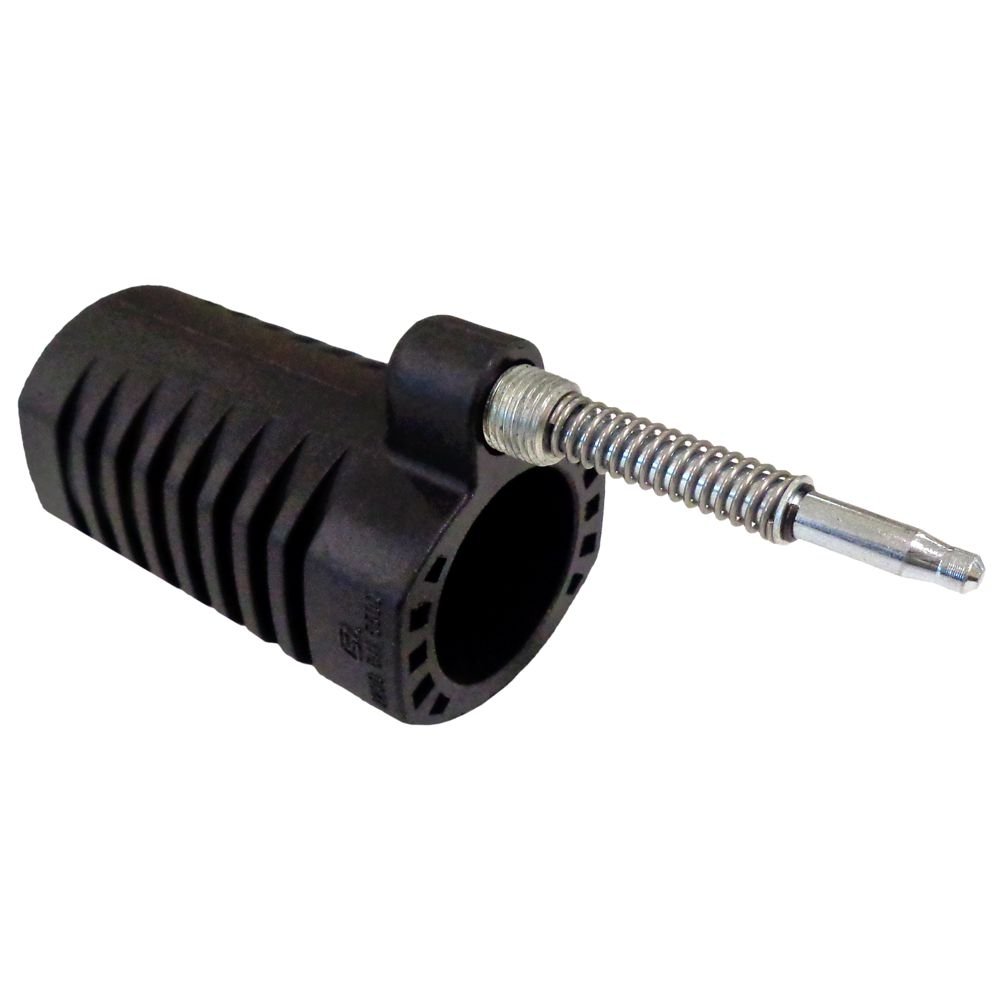

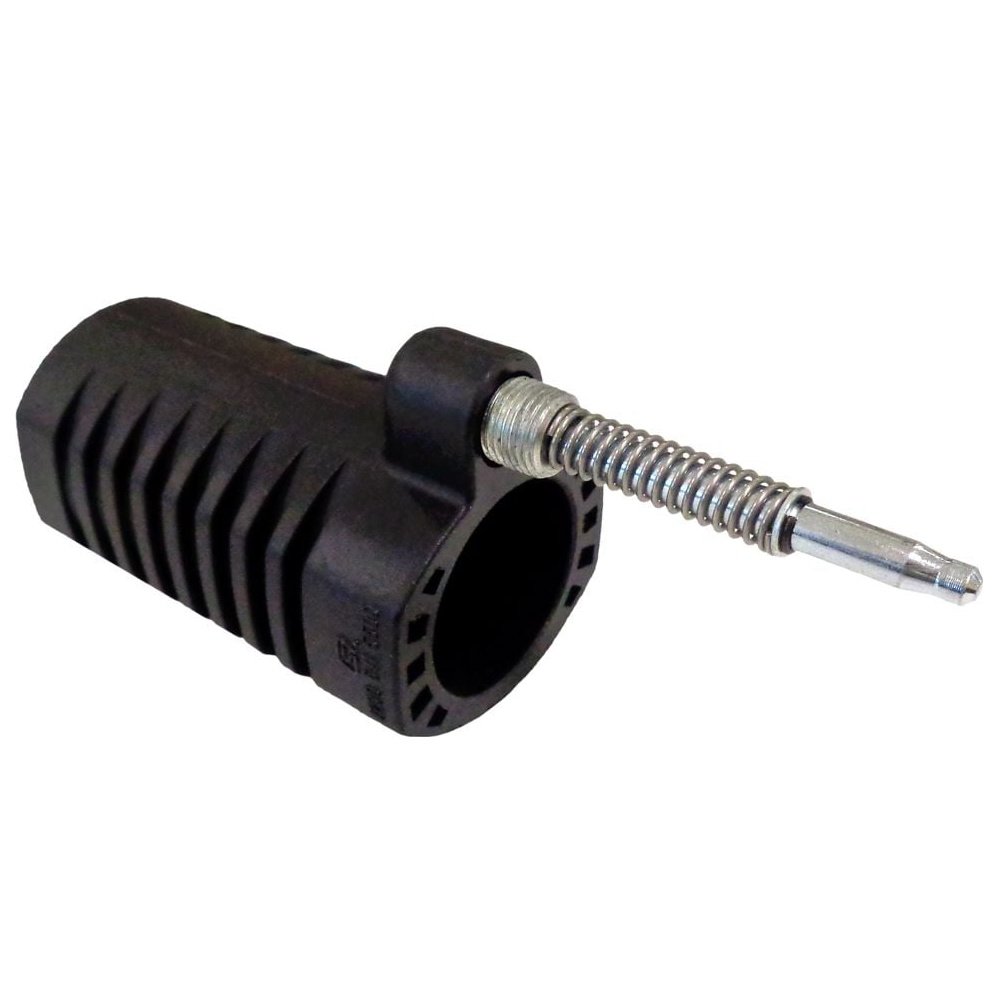

The Lock for Stihl FH, HL Models (MPN 4230 640 4513) is a genuine Stihl OEM part designed to secure key components within the head/handle assembly of compatible attachments. Built from durable materials suited to outdoor use, it helps prevent unwanted movement of parts during operation and keeps mechanisms positively engaged. This lock maintains reliability and safety on Stihl long-reach hedge trimmers and KombiSystem attachments, helping your equipment operate as intended. It is engineered for a precise fit on selected FH and HL series tools, including FH-KM and HL-KM models, so you can replace worn or damaged locks with confidence. Genuine Stihl manufacture ensures consistent quality and compatibility for professional and DIY users maintaining landscaping and grounds care machines.
Key Features:
- Genuine Stihl part for assured fit and performance on listed FH and HL models
- OEM specification (4230 640 4513) for reliable compatibility and easy identification
- Robust construction for long service life in demanding outdoor environments
- Helps secure adjustment/retention mechanisms to reduce accidental movement
- Supports safe, smooth operation by keeping components correctly located
- Typically straightforward to replace using standard hand tools
- Stable fit reduces downtime caused by loose or worn locking pieces
- Suitable for routine maintenance or as a like‐for‐like replacement for failed parts
Typical Applications:
Used during repair or servicing of Stihl FH and HL series tools to restore correct locking and retention of moving parts. Common in hedge cutting, grounds maintenance, estate management, and landscaping where dependable adjustment and securement of the attachment head are essential.
Also known as:
Locking catch, locking latch, retention lock, safety catch, detent lock, securing latch, equipment lock, retaining clip/lock for head adjustment mechanisms.
Fits Models:
FH-KM, FH-KM 135 deg, FH75, FHKM, HL 95, HL 95 K, HL-KM, HL-KM 0-135 deg, HL100, HL100K, HL75, HL75K, HL90, HL90K, HL95, HL95K, HLKM
Alternate Part Numbers:
4230-640-4513, 42306404513
Product Specifications
| L&S Part No. | 4230 640 4513 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 42306404513 |
| Unit of Sale | 1 |
| Size | Overall Length: 13mm |
| Applications | FH-KM, FH-KM 135 deg, FH75, FHKM, HL 95, HL 95 K, HL-KM, HL-KM 0-135 deg, HL100, HL100K, HL75, HL75K, HL90, HL90K, HL95, HL95K, HLKM |
| Machine Type | Hedgetrimmers |
| Fits Brands | Stihl |
| Fits Models | FH-KM 135 deg | HL-KM 0-135 deg | HL75, HL75K | HL90K, HL90, HL95K | HL100, HL100K | HL 95, HL 95 K | FH 135° | HL 135° |
