Description
Overview:

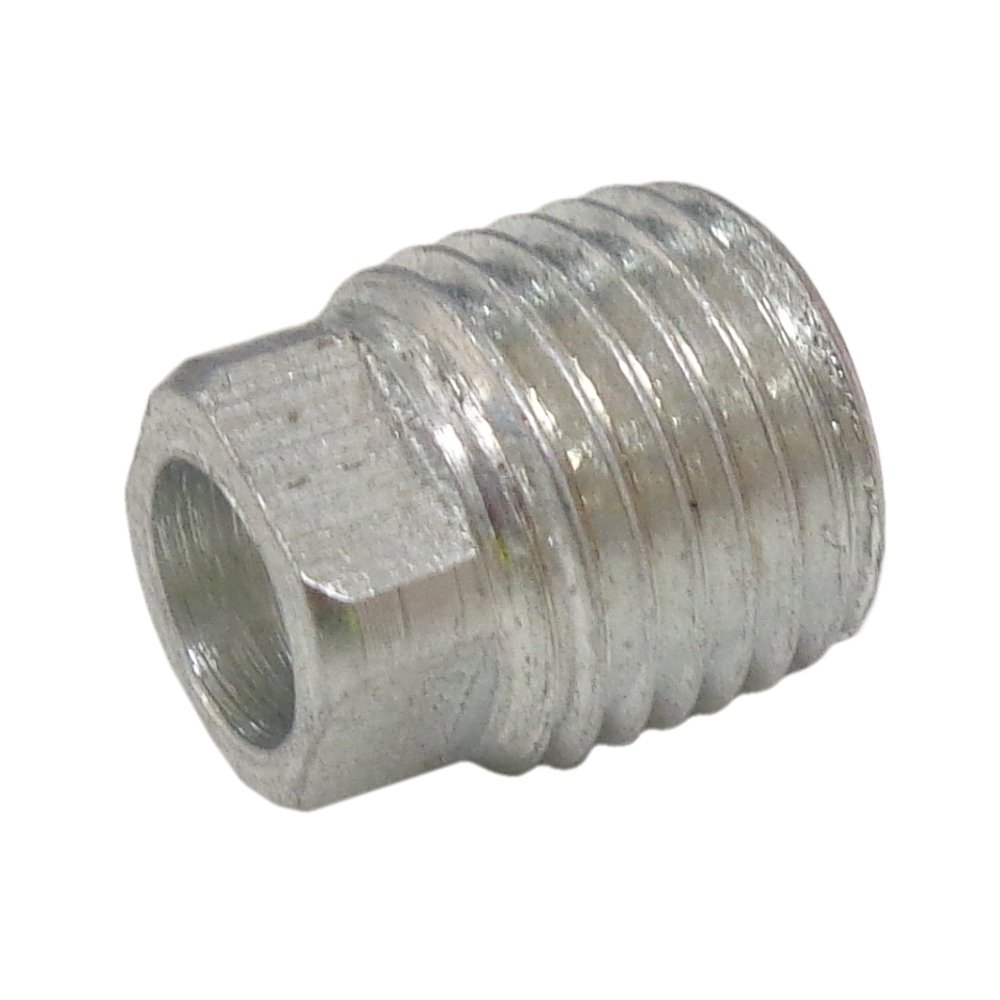

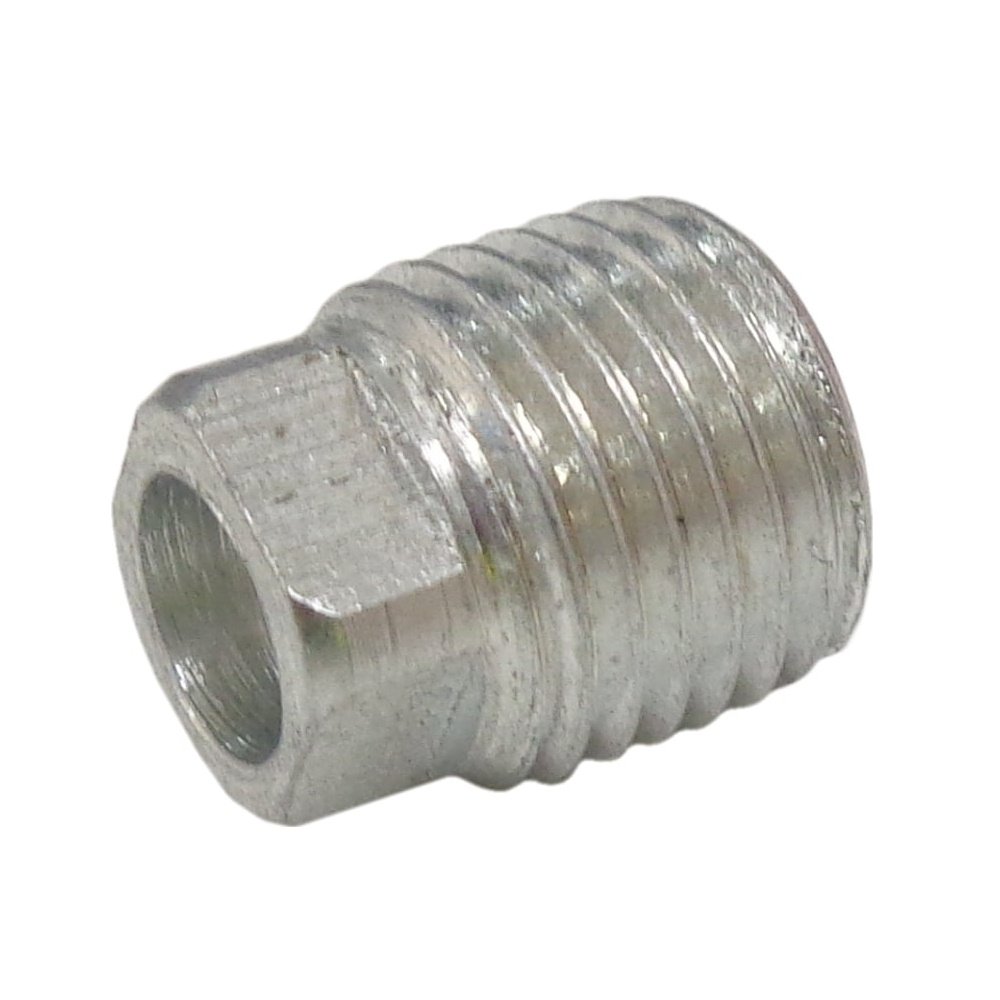

The Screw Sleeve for Stihl FH, HL (4230 642 9010) is a genuine Stihl metal sleeve used to support and guide a fastening bolt or screw within the assembly. It restores a snug, accurately sized bore so components clamp together correctly and stay aligned under load. Suitable for Stihl long‐reach hedge trimmers and KombiTools, including FH‐KM and HL 95, it helps prevent looseness, vibration, and accelerated wear around the fixing point. Made to OEM specification, this sleeve offers a precise fit and consistent performance in demanding outdoor use. Replacing a worn or damaged sleeve is a straightforward maintenance task that helps protect surrounding parts and keeps your machine operating safely and smoothly.
Key Features:
- Genuine Stihl OEM component for assured compatibility and fit
- Durable metal construction resists wear, crushing, and deformation
- Maintains secure fastening and correct alignment of assemblies
- Helps reduce vibration and protects mating parts from premature wear
- Precisely made to factory spec; like‐for‐like replacement with no modifications
- Suitable across selected FH and HL machines for efficient repairs
Typical Applications:
Used at key fastening points on Stihl long‐reach hedge trimmers and attachment heads where a bolt or screw needs stable guidance and support. Ideal during gearbox, handle, or bracket repairs, and whenever play, ovality, or damaged sleeves are found in routine servicing.
Also known as:
Threaded bush, bushing, thread sleeve, threaded collar, reducer bush, guide bush, fixing bush, locating bush. These terms describe solid inserts used to support fasteners and maintain accurate alignment within an assembly.
Fits Models:
FH-KM, FH-KM 0-90 deg, FH-KM 135 deg, FH75, HEL 600, HEL 600 K, HEL 700, HEL 700 K, HL 95, HL 95 K, HL-KM, HL-KM 0-135 deg, HL-KM 0-90 deg, HL100, HL100K, HL73, HL73K, HL75, HL75K, HL90, HL90K, HLE 71, HLE 71 K
Alternate Part Numbers:
4230-642-9010, 42306429010
Product Specifications
| L&S Part No. | 4230 642 9010 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 42306429010 |
| Unit of Sale | 1 |
| Applications | FH-KM, FH-KM 0-90 deg, FH-KM 135 deg, FH-KM0-90deg, FH-KM135deg, FH75, FHKM, HEL 600, HEL 600 K, HEL 700, HEL 700 K, HEL600, HEL600K, HEL700, HEL700K, HL 95, HL 95 K, HL-KM, HL-KM 0-135 deg, HL-KM 0-90 deg, HL-KM0-135deg, HL-KM0-90deg, HL100, HL100K, HL73, HL73K, HL75, HL75K, HL90, HL90K, HL95, HL95K, HLE 71, HLE 71 K, HLE71, HLE71K, HLKM |
| Machine Type | Long Reach Hedgetrimmers, Pole Pruners |
| Fits Brands | Stihl |
| Fits Models | FH-KM 0-90 deg | FH-KM 135 deg | HL-KM 0-90 deg | HL-KM 0-135 deg | HL73, HL73K | HL75, HL75K | HL90K, HL90, HL95K | HL100, HL100K | HEL 600 K | HEL 600 | HEL 700 K | HEL 700 | HL 95, HL 95 K | HLE 71, HLE 71 K | FH 0° - 90 ° | FH 135° | HL 0° - 90° | HL 135° |
