Description
Overview:

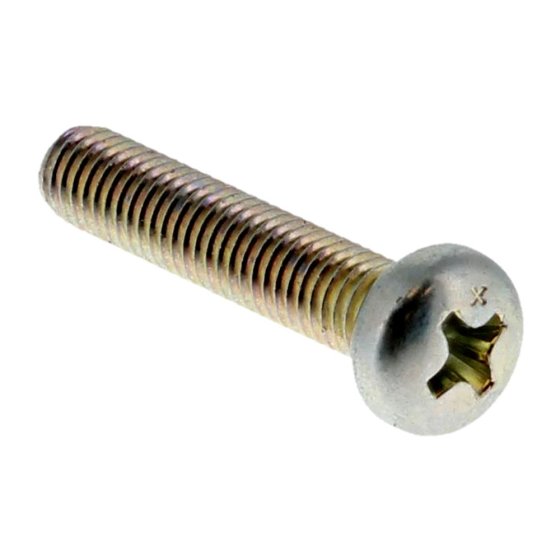

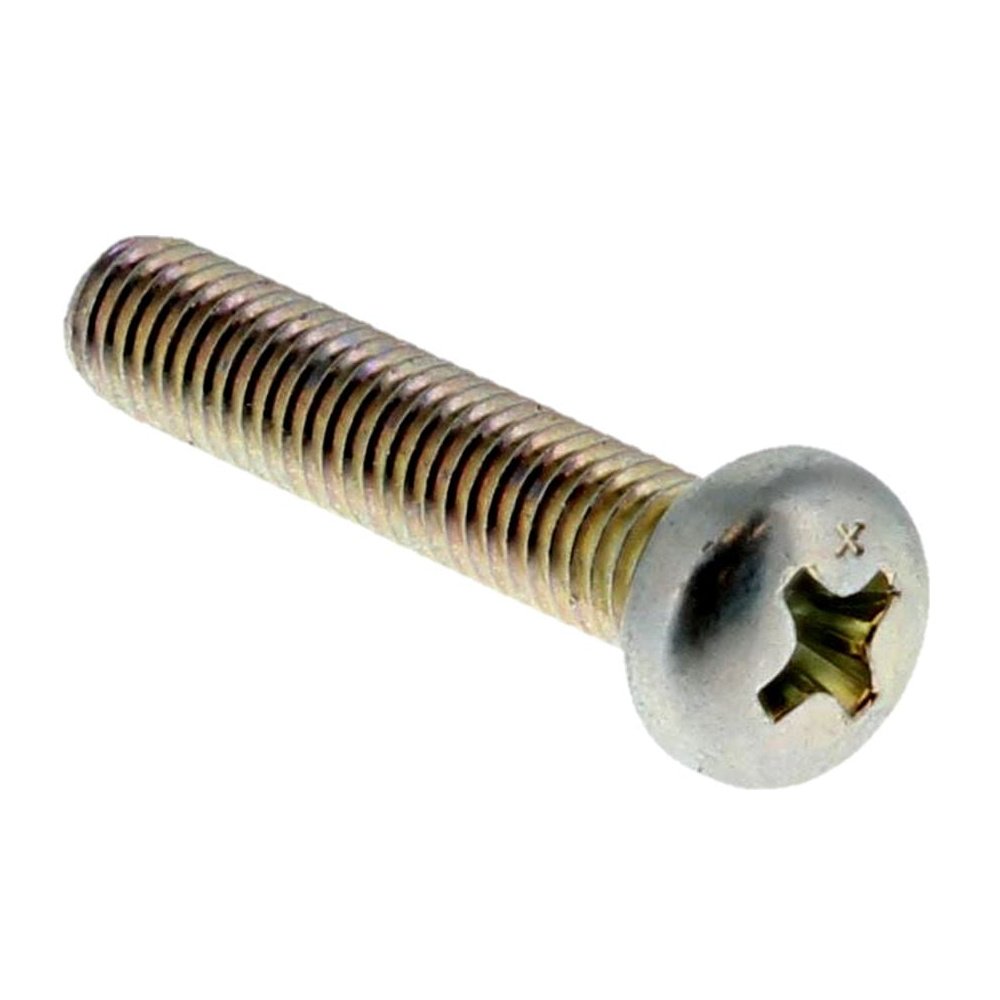

This M5 x 25 mm pan screw (Honda 93500-05025-0H) is a genuine Honda fastener for small petrol engines in the GX110 to GX200 range, such as the GX120 and GX160. It is made from durable steel with a corrosion‐resistant plated finish and is used to secure engine components where a flat, wide head is preferred. The size is M5 (5 mm ≈ 0.20 in) thread diameter by 25 mm length (≈ 0.98 in), offering a precise fit in factory-threaded locations. Designed to Honda OEM standards, it helps maintain engine integrity by providing consistent clamp load and reliable retention under vibration. Suitable for generators, pumps, plate compactors and other machinery powered by Honda GX engines.
Key Features:
- Genuine Honda part for assured fit and compatibility across GX110-GX200 engines
- M5 x 25 mm size (5 mm ≈ 0.20 in, 25 mm ≈ 0.98 in) suits common engine fastening points
- Pan head profile spreads load on flat surfaces to protect covers and housings
- Steel construction with a protective plated finish for corrosion resistance
- Built to OEM standards for durability, precise tolerances and consistent torqueing
- Clean, accurate threads for easy starting and smooth installation
- Reliable fastening under engine vibration for stable, long‐term assembly
- Straightforward to fit during servicing, rebuilds or component replacements
Typical Applications:
Used to fasten covers, shrouds, brackets and ancillary components on Honda GX small engines. Common in routine maintenance and repairs on generators, water pumps, light construction equipment and compactors, where secure, repeatable assembly is needed to keep engines stable and operating reliably.
Also known as:
M5 x 25 pan head machine screw, metric pan screw, M5x25 engine screw, pan bolt, cover screw, shroud screw, machine fastener, fixing screw for small engines, Honda engine screw.
Fits Models:
A3000, A5000/160, AV5000, BFS 735, BPS 1135A, BPU 2440A, BPU 2450A, BPU 2540A, GX110, GX120, GX120K1, GX120T1, GX120T2, GX120U1, GX120UT1, GX120UT2, GX140, GX160, GX160H1, GX160K1, GX160T1, GX160T2, GX160U1, GX160UT1, GX160UT2, GX200, GXV610, GXV620, WB20XT
Alternate Part Numbers:
93500-05025-0H, 93500-050250H, 93500 050250H, 93500050250H, 5000081990, 0081990
Product Specifications
| L&S Part No. | 93500 05025 0H |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Honda |
| OEM No. | 93500050250 |
| Unit of Sale | 1 |
| Applications | A3000, A5000/160, AV5000, BFS 735, BFS735, BPS 1135A, BPS1135A, BPU 2440A, BPU 2450A, BPU 2540A, BPU2440A, BPU2450A, BPU2540A, GX110, GX120, GX120K1, GX120T1, GX120T2, GX120U1, GX120UT1, GX120UT2, GX140, GX160, GX160H1, GX160K1, GX160T1, GX160T2, GX160U1, GX160UT1, GX160UT2, GX200, GXV610, GXV620, WB20XT |
| Machine Type | Engines |
| Fits Models | GX110 | GX140 | WB20XT | GX120K1 (GC01) | GX120T1 (GCAAT) | GX120UT1 (GCAGT) | GX120U1 (GCAHK) | GX120UT2 (GCBMT) | GX120T2 (GCBNT) | GX160K1 (GC02) | GX160H1 (GCAAH) | GX160K1 (GCAAK) | GX160T1 (GCABT) | GX160U1 (GCACK) | GX160UT1 (GCAFT) | GX160UT2 (GCBPT) | GX160T2 (GCBRT) |
