Description
Overview:

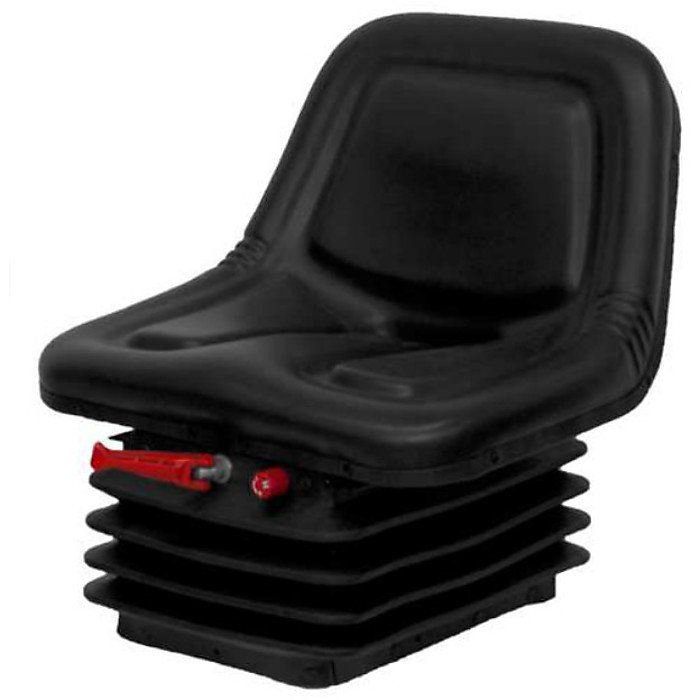

The Mechanical Suspension Seat for Mini Excavators is a robust replacement seat designed to improve comfort and reduce fatigue for operators working long shifts. Built with a hard‐wearing black PVC trim over a contoured one‐piece foam cushion, it uses a mechanical suspension module to absorb shocks and vibration from rough ground. The seat offers multiple adjustments so different users can find a secure and comfortable driving position. It is suitable for mini and micro excavators and other compact construction machines that accept a multi‐hole mounting pattern. A drainage channel helps keep the cushion dry in wet conditions, while the wide base supports a stable posture. Strong steel slide rails and a durable suspension frame make it a practical choice for daily site use.
Key Features:
- Mechanical suspension with 100 mm (3.94 inches) of travel to reduce vibration and impacts
- Slide rails with 150 mm (5.91 inches) of fore/aft travel for easy positioning
- Height adjustment of 60 mm (2.36 inches) to suit different operators and cabs
- Weight adjustment from 50-120 kg (110-265 lbs) to optimise suspension performance
- Generous 500 mm (19.69 inches) seat width for improved comfort and support
- Adjustable backrest angle for personalised seating posture
- Durable black PVC trim; easy to wipe clean and resistant to water and weather
- One‐piece foam seat pan with drainage to help keep the surface dry
- Strong steel frame and slide mechanism for reliability in tough site conditions
- Multi‐hole mounting pattern for versatile installation on compatible bases
- Simple mechanical controls for quick setup and repeatable adjustment
Typical Applications:
Replacing worn or damaged seats in mini excavators, improving comfort on hire fleet machines, and upgrading operator ergonomics for owner‐operators. Useful for trenching, landscaping, utilities, groundwork, and demolition tasks where vibration control and secure seating are important in outdoor, wet, or muddy conditions.
Also known as:
Mini digger seat, plant machinery seat, universal suspension seat, driver's chair, digger driver seat, plant cab seat.
Product Specifications
| L&S Part No. | 084 560 |
|---|---|
| Unit of Sale | 1 |
| Machine Type | Excavators |
