Description
Overview:

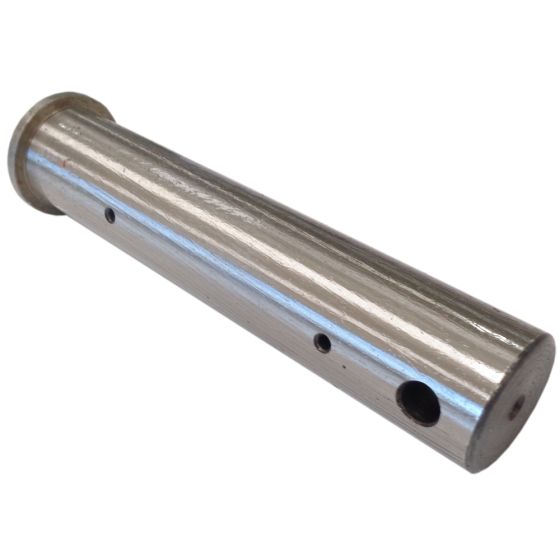

The Greased Pin (Position 10 Link) is a heavy-duty, non-genuine replacement pin for JCB mini excavators, designed to keep linkage pivots running smoothly under site conditions. Made from robust machined steel and designed for regular greasing, it supports reliable movement and reduces wear in the linkage assembly. This pin suits the JCB 803 SUPER and 803 PLUS, offering a precise fit where the Position 10 link pin is specified. It replaces JCB reference 232/02007 and is supplied under MPN 202 1419. Key dimensions are a 40 mm (1.57 in) diameter, 265 mm (10.43 in) overall length, 180 mm (7.09 in) distance from end to hole centre, and a 10 mm (0.39 in) hole size. Ideal for maintenance or repair when the original pin shows play, wear, or corrosion.
Key Features:
- Non-genuine part for cost-effective maintenance while maintaining reliable performance
- Direct replacement for JCB reference 232/02007 to match the intended fit and function
- Supplied as MPN 202 1419 for easy identification and reordering
- Steel construction designed for demanding excavator linkage loads
- Greaseable design supports smooth operation and reduced pivot wear
- Precision fitment for Position 10 link on 803 SUPER and 803 PLUS
- Dimensions: 40 mm (1.57 in) diameter; 265 mm (10.43 in) overall length
- Hole-to-end distance: 180 mm (7.09 in) to suit the specified retaining layout
- Hole size: 10 mm (0.39 in) for compatible retainers or fasteners
- Helps restore alignment, reduce play, and extend bush and linkage life
- Straightforward to fit during routine service intervals
Typical Applications:
Used at the excavator linkage pivot where the Position 10 link pin is specified on JCB 803 series machines. Suitable for replacing worn, bent, or corroded pins to regain tight, smooth movement in bucket, link, or dipper connections. Commonly fitted during bush changes or scheduled inspections to prevent accelerated wear and maintain accurate digging control.
Also known as:
Excavator pin, linkage pin, greasable pivot pin, link joint pin, JCB linkage pivot, pivot shaft for link, replacement JCB pin for Position 10.
Fits Models:
803 SUPER, 803 PLUS
Alternate Part Numbers:
232/02007, 232 02007, 23202007
Product Specifications
| L&S Part No. | 202 1419 |
|---|---|
| Part Type | Non Genuine Part |
| Unit of Sale | 1 |
| Applications | 803 PLUS, 803 SUPER, 803PLUS, 803SUPER |
| Machine Type | Excavators |
| Fits Brands | JCB |
| Fits Models | 803 PLUS |
